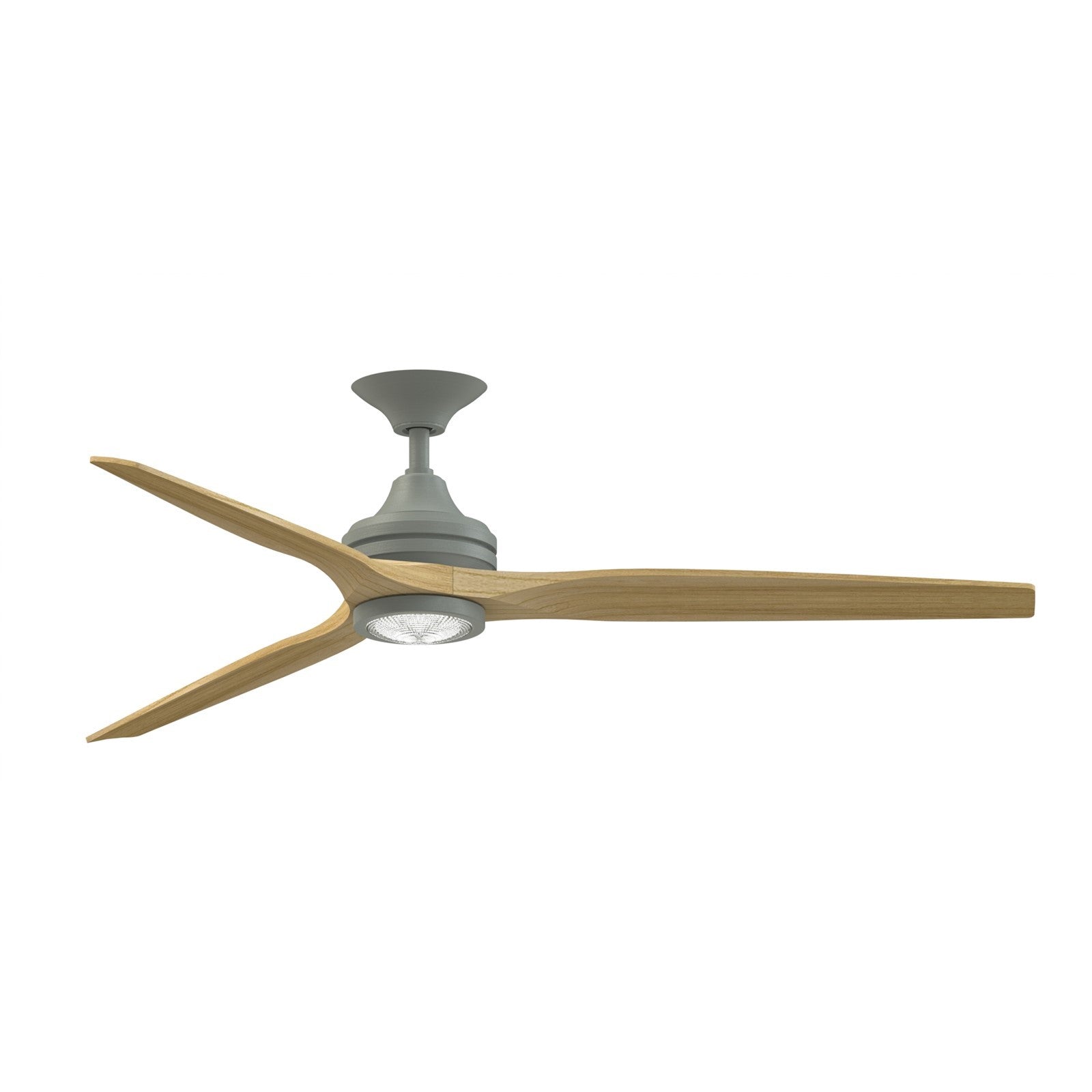

A 64-inch smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces, finished in antique graphite with natural blades.
The Spitfire DC Custom brings a sleek, modern profile to large rooms and covered patios. Its antique graphite motor housing pairs with three natural buttonwood blades for a warm, organic contrast. The included LED light kit features CCT Select technology, letting you shift from warm to daylight. With Wi-Fi fanSync, you can control the fan and light from your phone or voice assistant.
Best for
- Covered patios and porches, providing powerful airflow up to 8,754 CFM to keep large outdoor living areas comfortable
- Great rooms and open-plan living spaces with ceilings 8 feet or higher, using the included 6-inch or 12-inch downrods
- Sunrooms and three-season rooms where damp-rated construction resists humidity
- Bedrooms and home offices needing quiet, energy-efficient air movement with adjustable light color
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated, and should not be exposed to rain
- Rooms with ceilings under 7 feet, as the downrod mount requires adequate clearance
- Small spaces under 12x12 feet where a 64-inch blade sweep may feel overpowering
How bright is it?
The integrated LED light kit emits 1,600 lumens - roughly equivalent to a 100W incandescent bulb - making it bright enough to illuminate a large living area or covered patio. It is dimmable, so you can lower the light for a cozy evening.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vivid and natural, ideal for outdoor entertaining or reading. The light is fully dimmable via the included remote.
Sizing and fit
This fan has a 64-inch blade sweep and an overall height of 19.42 inches with the included 6-inch downrod (21.35 inches with the 12-inch downrod). It is designed for flat or sloped ceilings up to 20 degrees. The recommended hanging height is 7 to 9 feet from the floor to the blades for optimal airflow.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 18W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for covered outdoor areas, bathrooms, and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What shade options are included? The light kit includes both fresnel and frosted shades, so you can choose your preferred light diffusion.
