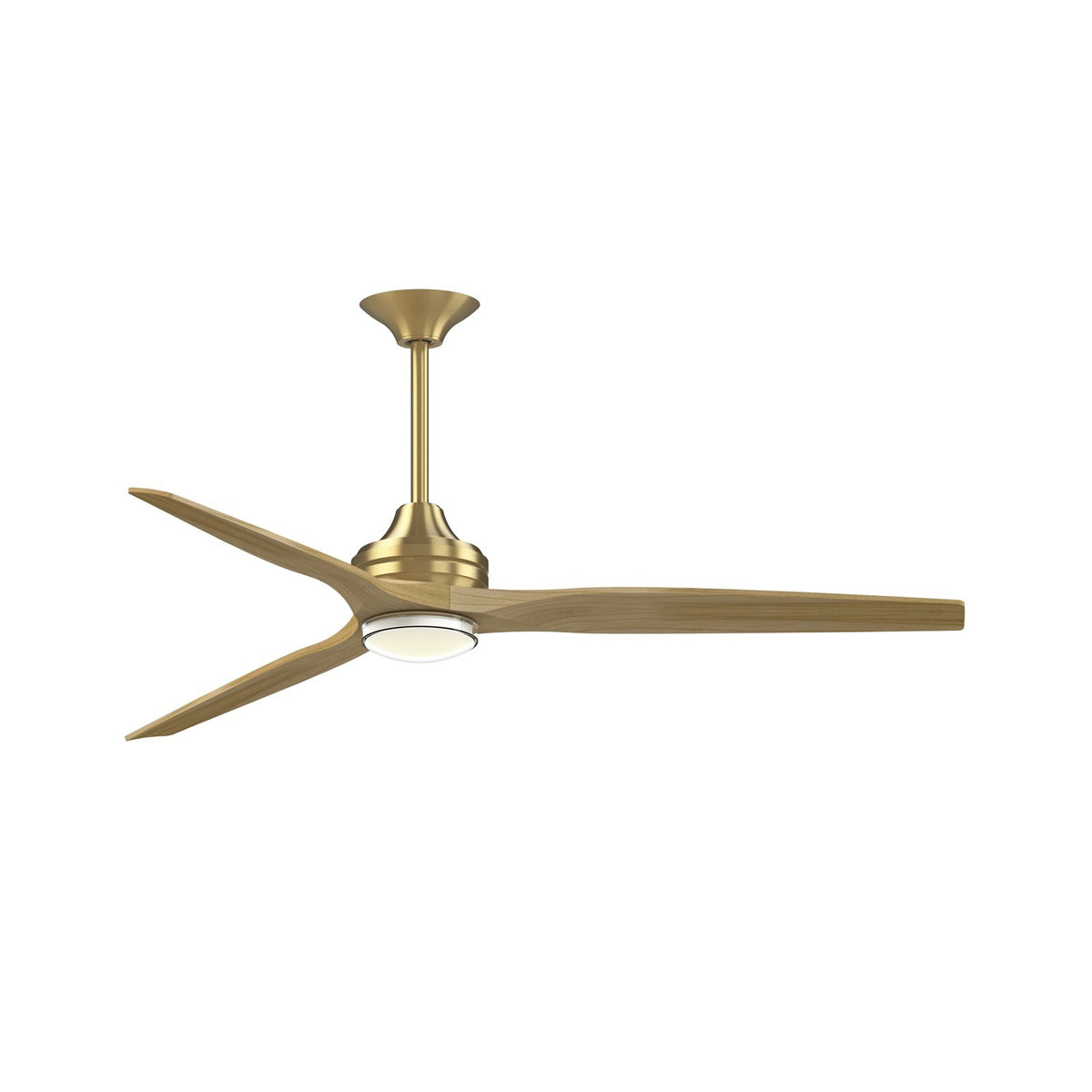

A 64-inch downrod smart ceiling fan with an integrated LED light kit, finished in brushed satin brass with natural blades, for covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a sleek, modern design with powerful performance. The brushed satin brass motor housing and natural buttonwood blades create a warm, organic look that suits coastal and contemporary interiors. The included LED light kit features CCT Select technology, letting you shift from warm to daylight tones. With a quiet DC motor delivering up to 8,754 CFM, Wi-Fi fanSync control, and a handheld remote, this fan offers both comfort and convenience.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity
- Living rooms and family rooms with standard 8-9 foot ceilings
- Bedrooms and home offices, thanks to quiet operation and adjustable light color
- Sunrooms and three-season rooms that need year-round comfort
- Spaces with sloped ceilings up to 20 degrees
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 feet, as the fan hangs 22 inches from the ceiling
- Spaces where a light kit is not desired, as this model includes one
How bright is it?
The integrated 24-watt LED module produces 2,000 lumens - roughly equivalent to a 150-watt incandescent bulb. This is sufficient for ambient lighting in a large room, though you may want additional task lighting for detailed work.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the light to your activity and mood. The high CRI of 90 ensures colors appear vivid and accurate.
Sizing and fit
This fan has a 64-inch blade sweep and an overall height of 22 inches from the ceiling with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods for flexible installation. The housing diameter is 8.07 inches, and the canopy is 8.76 inches in diameter. It weighs 19.93 pounds and requires a standard 120V electrical supply.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 19.93 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be installed in bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the double-walled marine light kit differ? The double-walled glass shade is constructed with marine-grade materials, making it more durable and suitable for outdoor wet locations.
