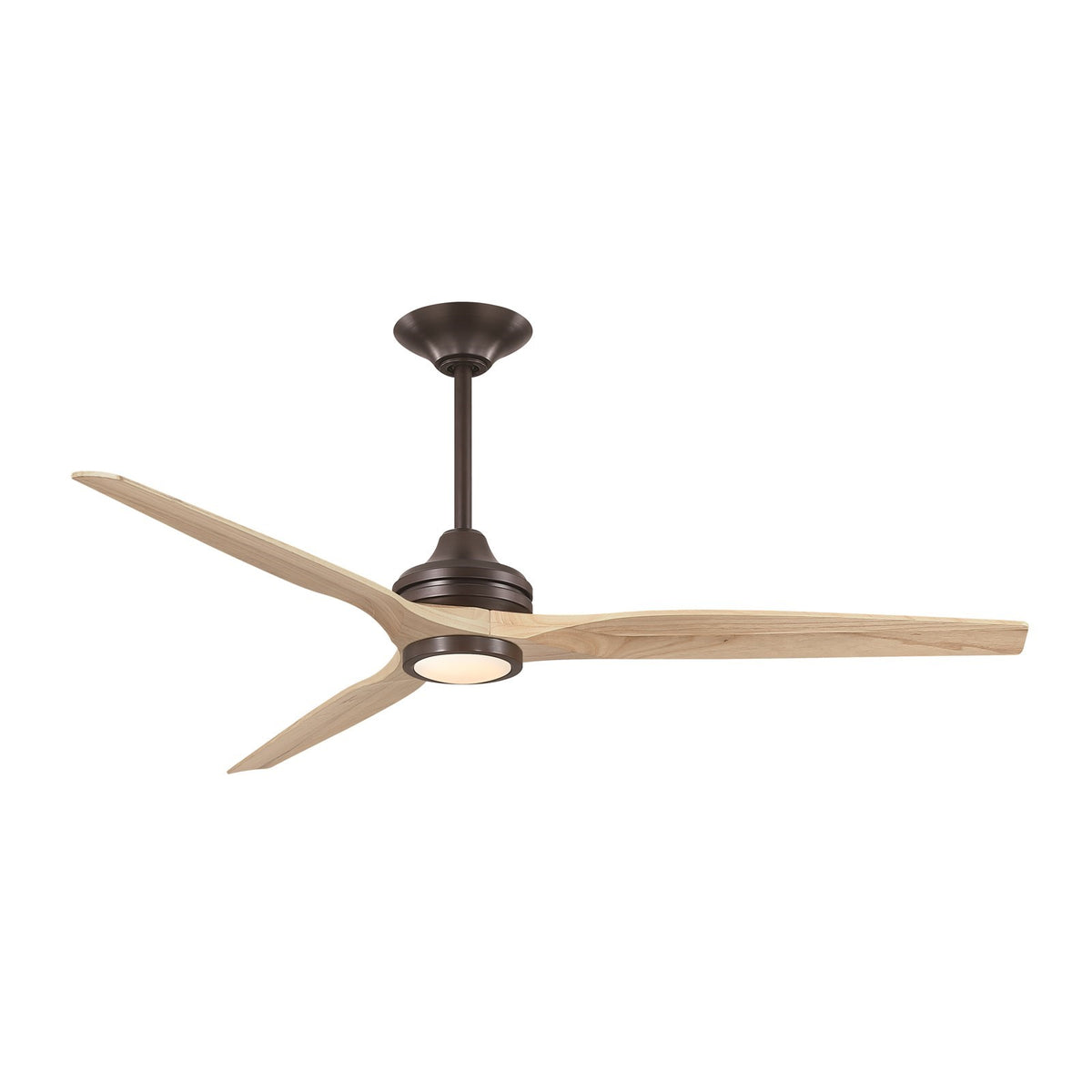

A 64-inch downrod smart ceiling fan with an integrated LED light kit, designed for indoor and covered outdoor spaces like patios and living rooms.
The Spitfire DC Custom from Fanimation pairs a Dark Bronze motor with Natural buttonwood blades for a streamlined, contemporary look. Its 6-speed DC motor delivers powerful airflow up to 8,754 CFM while staying quiet and energy-efficient. This version includes an 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight, and includes both fresnel and frosted shades. Control it all with the included TR360 remote or via Wi-Fi with the fanSync app and voice assistants.
Best for
- Covered patios and porches, where damp-rated construction handles humidity and moisture
- Living rooms and great rooms up to 20x20 ft, providing strong airflow and adjustable lighting
- Sunrooms and enclosed porches that need both air movement and versatile light
- Bedrooms and home offices where quiet operation and smart control are valued
- Rooms with standard or slightly sloped ceilings, thanks to the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water, as this fan is damp-rated, not wet-rated
- Rooms with very low ceilings, as the downrod adds height
- Spaces where a light kit is not desired, since this model includes one
How bright is it?
The integrated LED module produces 1600 lumens, roughly equivalent to a 100W incandescent bulb. This is sufficient for ambient lighting in medium to large rooms, but not as a primary task light.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K, 3500K, 4000K, and 5000K (daylight). This flexibility lets you shift from a cozy, golden glow to crisp, bright light. The 90 CRI ensures colors appear natural and accurate.
Sizing and fit
This fan has a 64-inch blade sweep and measures 64 x 64 x 19.42 inches with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods for flexible installation. The canopy is 8.76 inches in diameter, and the housing is 8.07 inches. It weighs 20.24 lbs.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What is the maximum slope for installation? This fan can be installed on ceilings with a slope up to 20 degrees.
