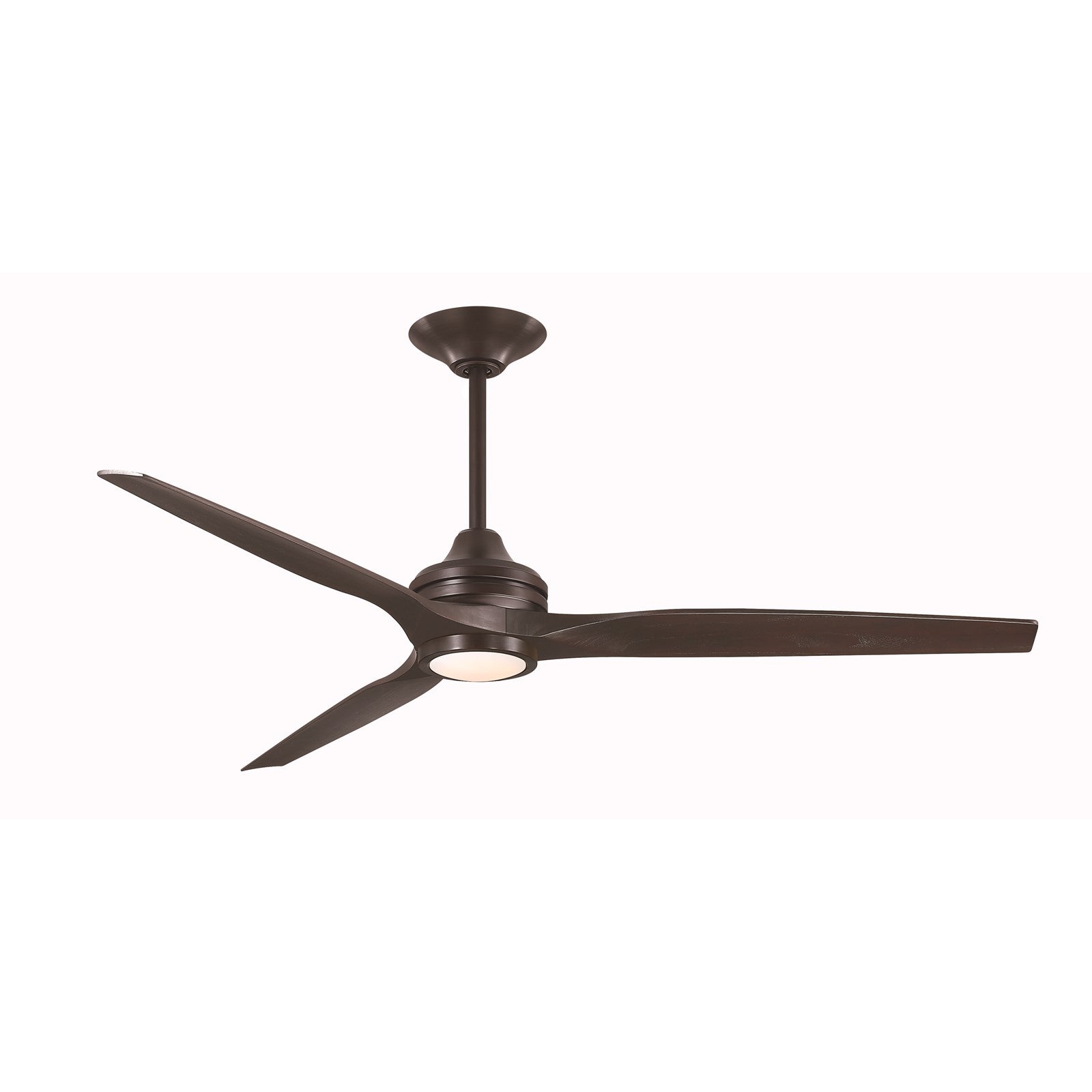

A 64-inch downrod smart ceiling fan with an integrated LED light kit, designed for indoor and covered outdoor spaces like patios and living rooms.
The Spitfire DC Custom combines a sleek Dark Bronze motor with Dark Walnut blades, delivering powerful yet quiet airflow up to 8,754 CFM. Its integrated 18-watt LED light kit features CCT Select technology, letting you shift from warm 2700K to bright 5000K. With Wi-Fi fanSync, the included TR360 remote, and KwikWire installation, this fan brings smart comfort and flexible lighting to any room.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Living rooms and great rooms up to 20x20 ft, with high airflow for large spaces
- Bedrooms and sunrooms needing quiet, energy-efficient cooling
- Rooms with standard or slightly sloped ceilings, thanks to the included downrods
- Smart homes, with control via app or voice assistant
Not ideal for
- Outdoor areas directly exposed to rain or water, as this fan is damp-rated, not wet-rated
- Rooms with very low ceilings, as the downrod adds height
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, providing ample light for a large room. The integrated LED module is dimmable, so you can adjust to your preferred level.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight. With a CRI of 90, colors appear vivid and accurate. The fresnel and frosted shades are both included for versatile light diffusion.
Sizing and fit
64-inch blade sweep, 19.42-inch height from ceiling to bottom with the included 6-inch downrod. Includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches for higher ceilings. Recommended hanging height is 7 to 9 feet.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app.
Can I install this in a bathroom or outdoors? It is damp-rated, suitable for bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I use this on a sloped ceiling? Yes, it supports up to a 20° slope, and includes both 6-inch and 12-inch downrods for flexible installation.
