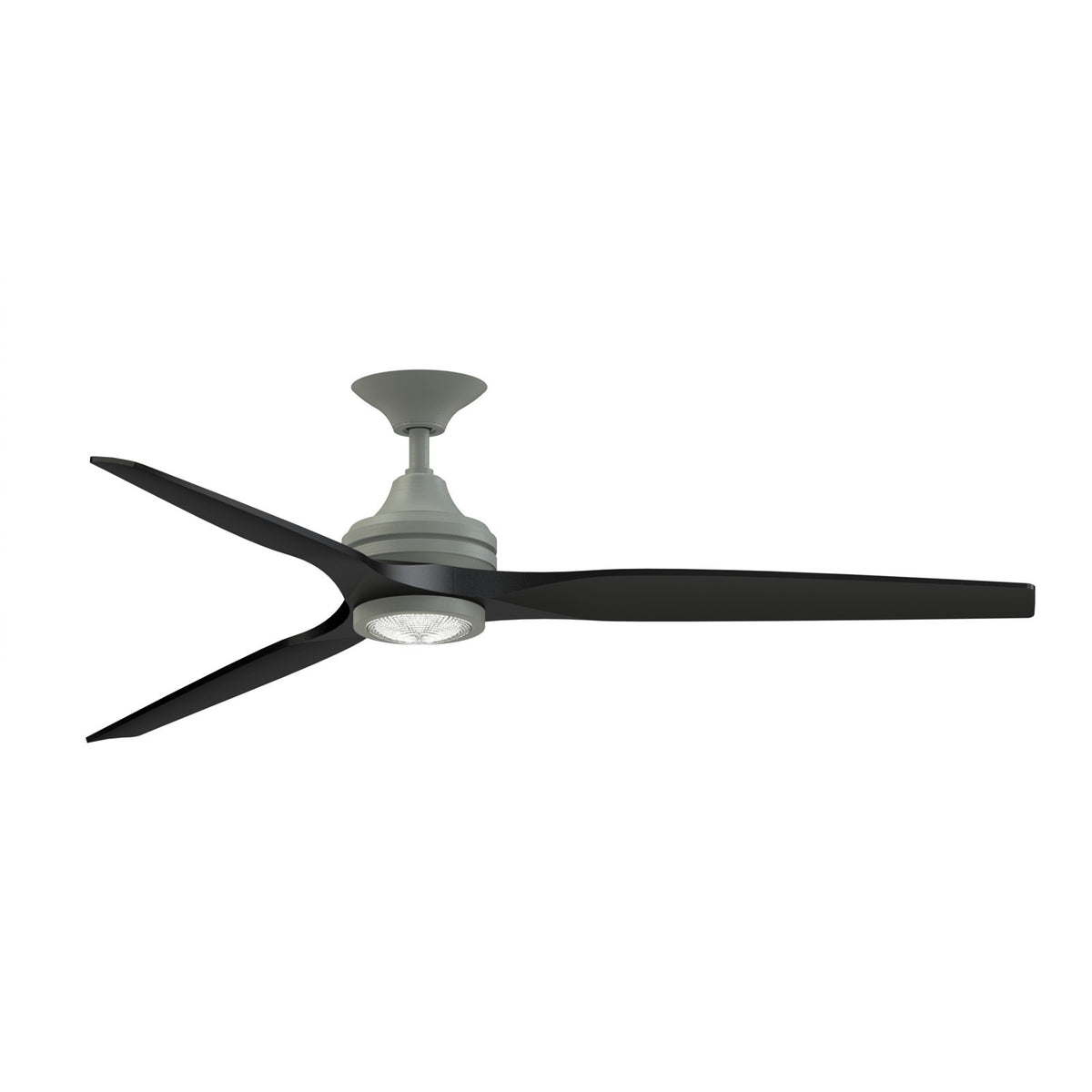

A 64-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, featuring an integrated LED light kit with CCT Select, finished in antique graphite with black blades.
The Spitfire DC Custom combines powerful airflow with customizable lighting. The antique graphite motor housing and black buttonwood blades create a sleek, modern look, while the integrated 18-watt LED light kit offers five color temperatures from warm to daylight. The 6-speed DC motor delivers up to 8,754 CFM, and the included TR360 remote plus Wi-Fi fanSync app control put everything at your fingertips.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity without direct rain exposure
- Bedrooms and living rooms with standard 8-9 ft ceilings, using the included 6-inch or 12-inch downrods
- Sunrooms and laundry rooms that need reliable air movement in moist conditions
- Large open-plan spaces up to 400 sq ft, where the 64-inch sweep delivers strong, even airflow
- Smart-home setups, with voice assistant and app control via fanSync
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 100 sq ft, where the 64-inch blades may feel oversized
- Rooms with ceilings under 8 ft - the downrod adds height, so consider the flush-mount version
How bright is it?
The integrated 18-watt LED light kit delivers 1,600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - so you can match the mood from cozy to crisp. The high CRI of 90 means colors appear accurate, ideal for living spaces and kitchens.
Sizing and fit
This downrod fan measures 64 inches wide, 64 inches deep, and 19.42 inches from ceiling to bottom with the included 6-inch downrod (or 25.42 inches with the 12-inch downrod). The 64-inch blade sweep suits large rooms, and the included downrods allow for flexible installation on flat or slightly sloped ceilings (up to 20°).
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app. The fan speed is also controlled via remote or app.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated for indoor and covered outdoor spaces, including bathrooms, covered patios, and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20° with the included downrods. For steeper slopes, optional downrods are available.
