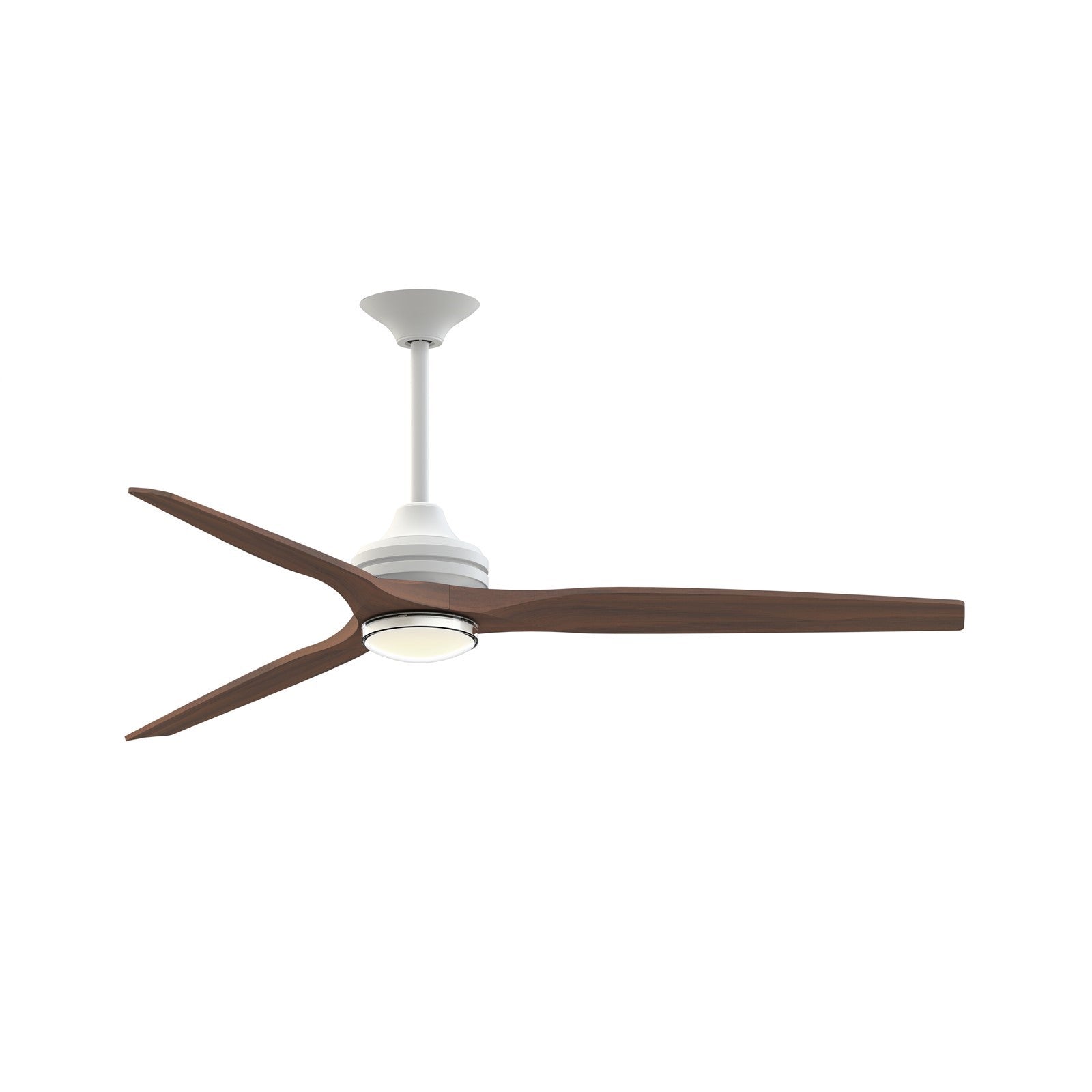

A 64-inch downrod smart ceiling fan with an integrated double-walled marine LED light kit, designed for covered outdoor and indoor spaces, finished in matte white with whiskey wood blades.
The Spitfire DC Custom brings streamlined design and smart control to large rooms. Its 6-speed DC motor delivers powerful, quiet airflow up to 8,754 CFM, while the integrated 24-watt LED light kit offers five color temperatures from warm to daylight. The double-walled glass shade is marine-grade, making it suitable for wet locations. The included TR360 remote and Wi-Fi fanSync app make it easy to adjust fan speed, light dimming, and color from anywhere.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Great rooms and open-plan living areas up to 400 sq ft, with high ceilings for optimal airflow
- Sunrooms and three-season rooms that need both air movement and adjustable lighting
- Bedrooms and living rooms where quiet operation and smart control are priorities
- Rooms with sloped ceilings up to 20 degrees, using the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 100 sq ft, where the 64-inch blade sweep may feel overpowering
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
The integrated LED module produces 2000 lumens - comparable to a 150-watt incandescent bulb, bright enough to illuminate a large living area or covered patio. It's dimmable, so you can lower the light for a cozy evening.
Light color and feel
Choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and natural. The double-walled glass shade is clear and durable.
Sizing and fit
With a 64-inch blade sweep and 22-inch height from ceiling to bottom (using the 12-inch downrod), this fan suits rooms with standard or high ceilings. The housing diameter is 8.07 inches. Ideal for rooms at least 12 x 12 ft.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 19.93 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What makes the marine light kit different? The double-walled glass shade is constructed with marine-grade materials, making it more durable and suitable for wet locations.
