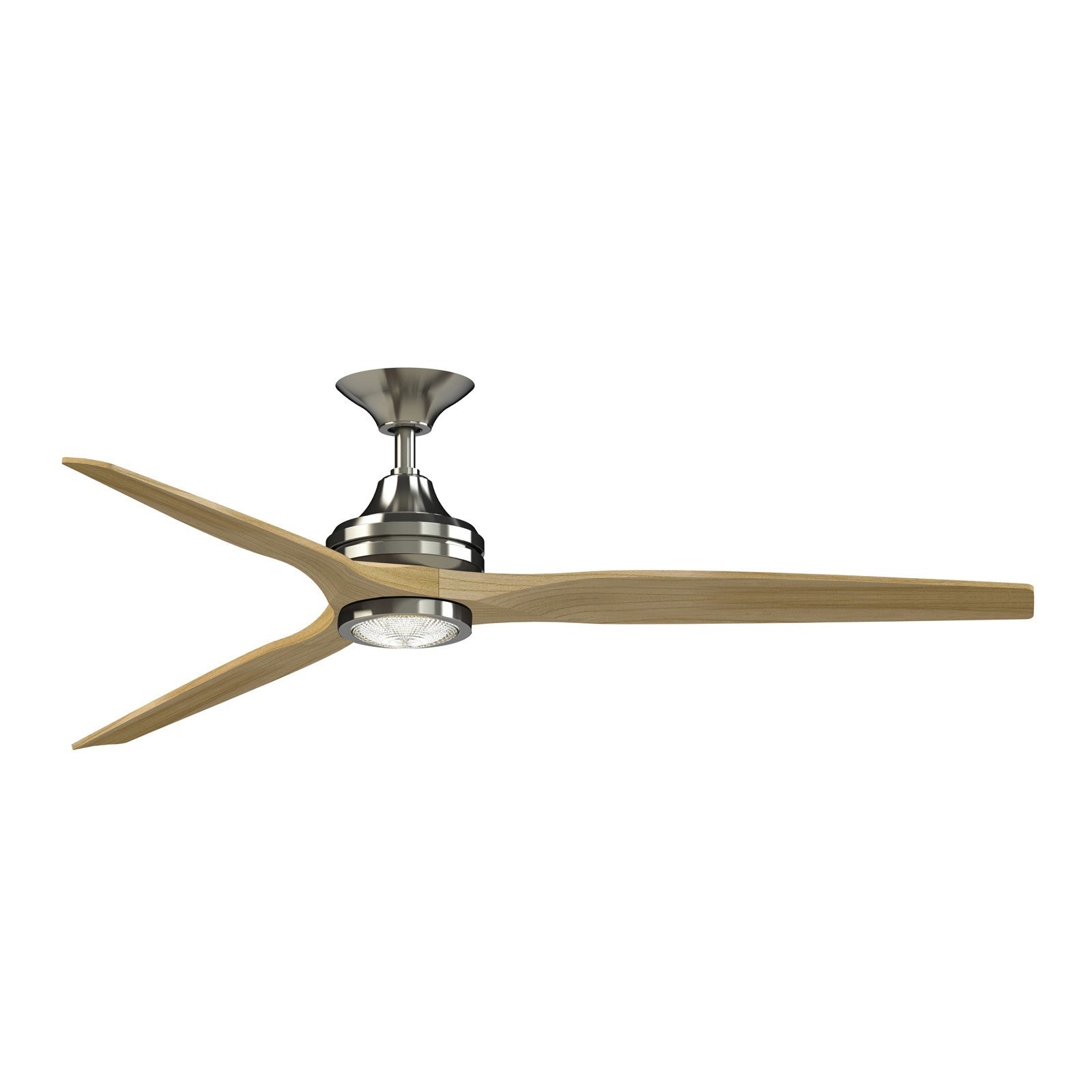

A 64-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a sleek Brushed Nickel motor with three Natural buttonwood blades, delivering powerful yet quiet airflow up to 8,754 CFM. Its integrated 18-watt LED light kit features CCT Select technology, letting you shift from warm 2700K to bright daylight 5000K. The kit includes both fresnel and frosted shades for versatile light diffusion. Control everything from the included TR360 remote or your smartphone via Wi-Fi fanSync, and enjoy easy installation with Fanimation's KwikWire technology.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Large living rooms and great rooms up to 400 sq ft, providing strong air circulation
- Sunrooms and three-season rooms needing both light and airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Homes with sloped ceilings up to 20 degrees, using the included downrods
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Low ceilings under 8 ft if you need the full 19.42-inch drop with the light kit
- Small rooms under 100 sq ft where a 64-inch sweep may feel overpowering
How bright is it?
The integrated LED module produces 1600 lumens - comparable to a 100W incandescent bulb. This is ample light for a large living area or covered patio, and it's dimmable so you can dial it down for ambiance.
Light color and feel
With five selectable color temperatures (2700K to 5000K), you can choose from warm, cozy light to crisp daylight. The 90 CRI ensures colors appear natural and vibrant, ideal for entertaining or reading. The included fresnel and frosted shades let you adjust the light diffusion.
Sizing and fit
This fan measures 64 inches in diameter and hangs 15.35 to 21.35 inches from the ceiling (with light kit) using the included 6-inch and 12-inch downrods. It suits rooms with ceilings 8 feet or higher and can be installed on sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is built in and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? It is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, via Wi-Fi fanSync technology, you can control it with Amazon Alexa or Google Assistant.
Ships from our warehouse in 1-4 Business Days
