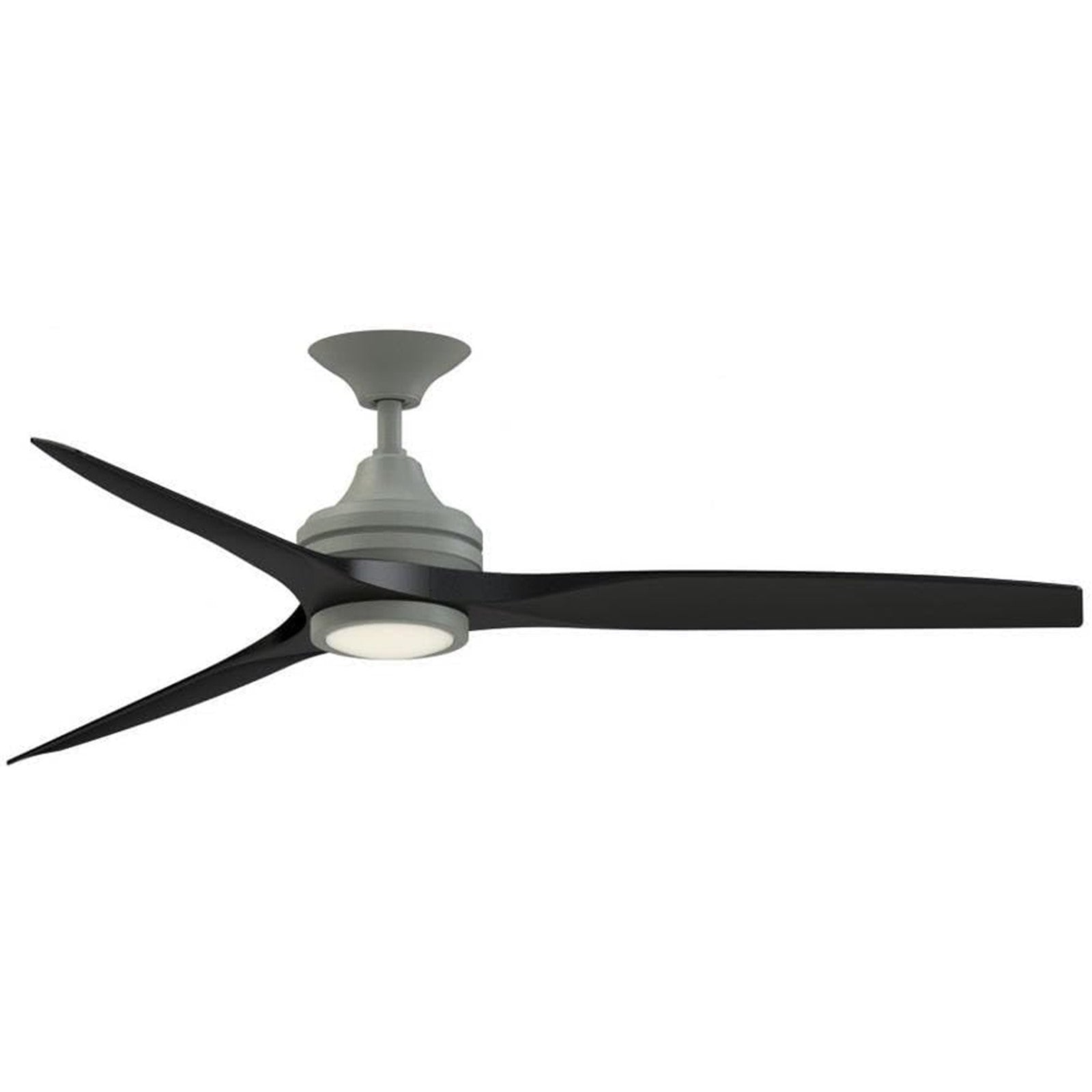

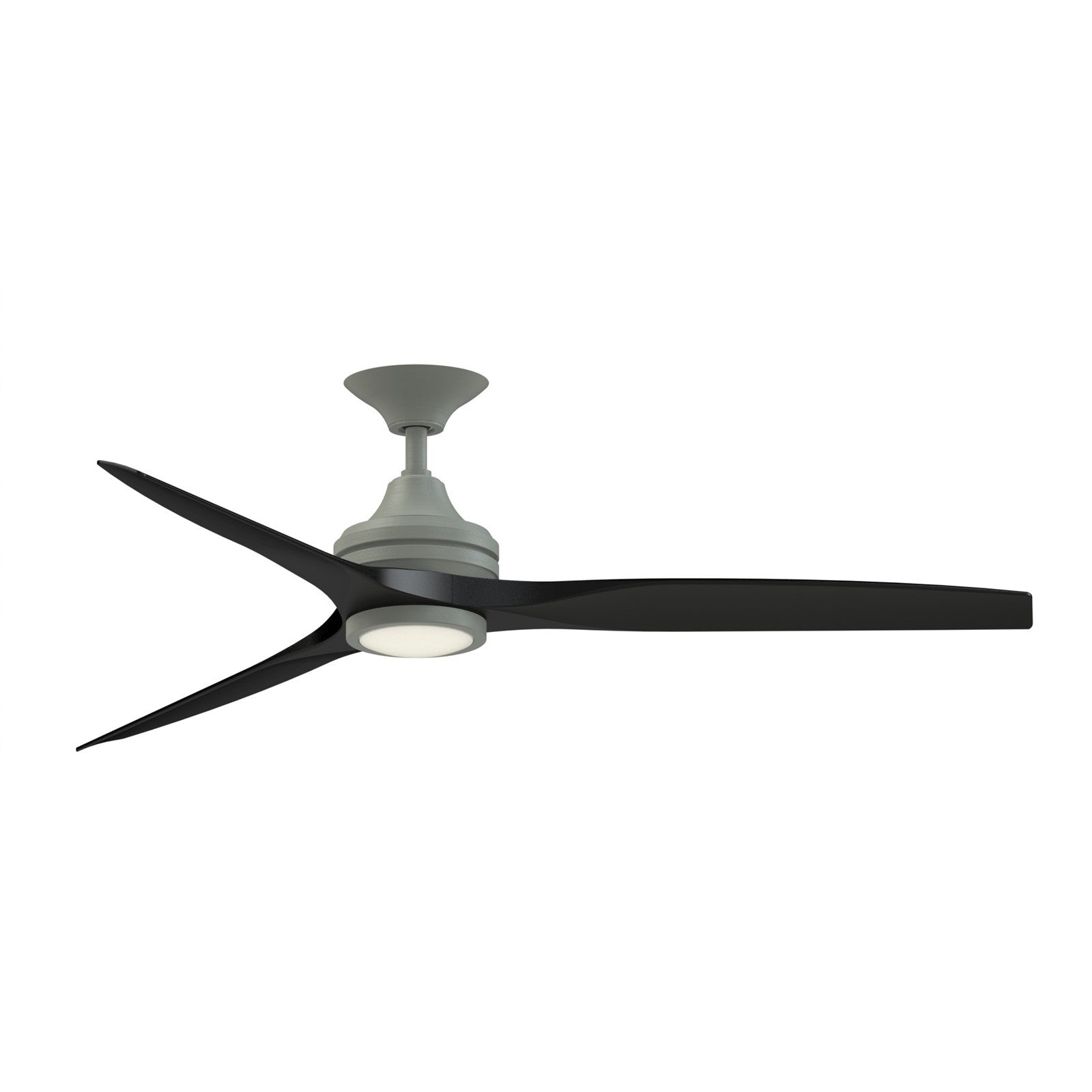

A 60-inch damp-rated ceiling fan with integrated LED light from Fanimation's Spitfire collection, finished in antique graphite with black buttonwood blades, for covered outdoor spaces and large indoor rooms.
The Spitfire with LED light kit pairs a sleek three-blade silhouette with an antique graphite finish and black buttonwood blades, bringing a modern-industrial look to patios, porches, and sunrooms. The included 18-watt dimmable LED module provides warm 3000K light with a high 90 CRI, and you can choose between fresnel or frosted shades (both included). Its powerful AC motor moves up to 5,227 CFM, and the reversible airflow keeps you cool in summer and warm in winter. Designed for damp locations, it handles humidity with ease, though it should not be directly exposed to rain.
Best for
- Covered patios and porches, mounted on flat or slightly sloped ceilings up to 19°
- Sunrooms and three-season rooms where humidity is a factor
- Large living rooms or great rooms (15x15 ft or larger) needing high airflow and ambient light
- Bathrooms and laundry rooms with high moisture levels
- Smart home setups, compatible with Fanimation fanSync and most smart devices (control sold separately)
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft, unless you use the optional close-to-ceiling mount (sold separately)
- Spaces where you need a brighter primary light—the 1500-lumen LED is best for ambient or accent lighting
How bright is it?
The integrated LED module produces 1500 lumens—roughly equivalent to a 100W incandescent bulb. This is suitable for ambient lighting in a living room or bedroom, but not as a primary task light for activities like reading or cooking.
Light color and feel
The LED emits 3000K warm white—a soft, golden tone similar to traditional incandescent lighting. With a CRI of 90, it renders colors accurately, making it a good choice for spaces with warm wood tones or colorful decor. The light is dimmable via the included TR500 remote.
Sizing and fit

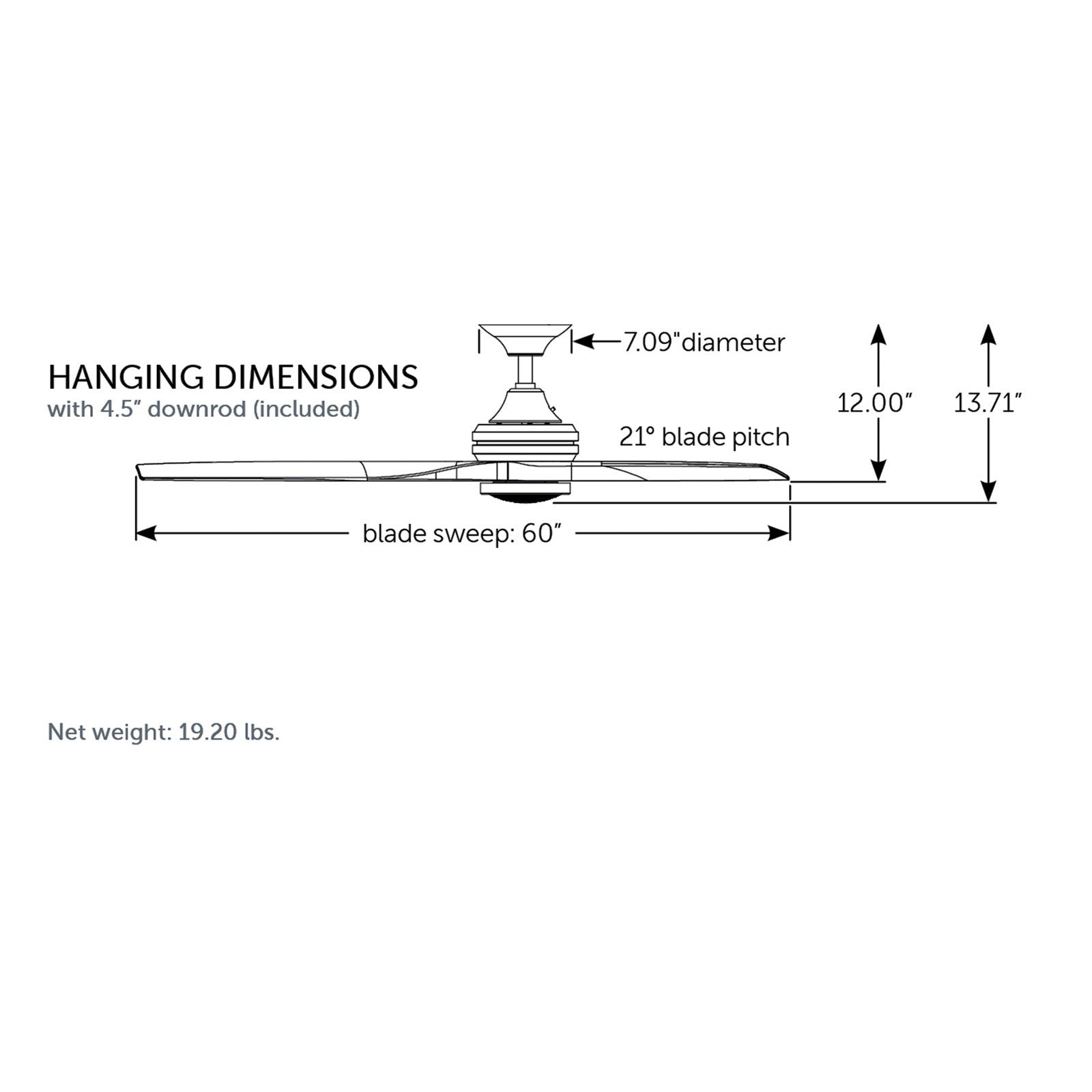

With a 60-inch blade sweep and a 13.71-inch drop from ceiling to bottom (with light kit), this fan suits rooms at least 12x12 ft. The included 4.5-inch downrod works for standard 8-9 ft ceilings; optional downrods up to 72 inches are available for higher ceilings. The canopy is 7.09 inches in diameter, and the housing is 8.07 inches.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 60"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3776
- CFM High: 5227
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 60"(L)60"(W) x 13.71"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.09"(Dia) x 2.2"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12"
- Ceiling to Bottom (With Light Kit): 13.71"
- Item Weight: 21.58 lbs.
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included. You do not need to purchase a separate bulb.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable and controlled via the included TR500 remote. The remote allows infinite light levels.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I choose between the fresnel and frosted shades? Yes, both shades are included, so you can switch between them to achieve your preferred light diffusion.
