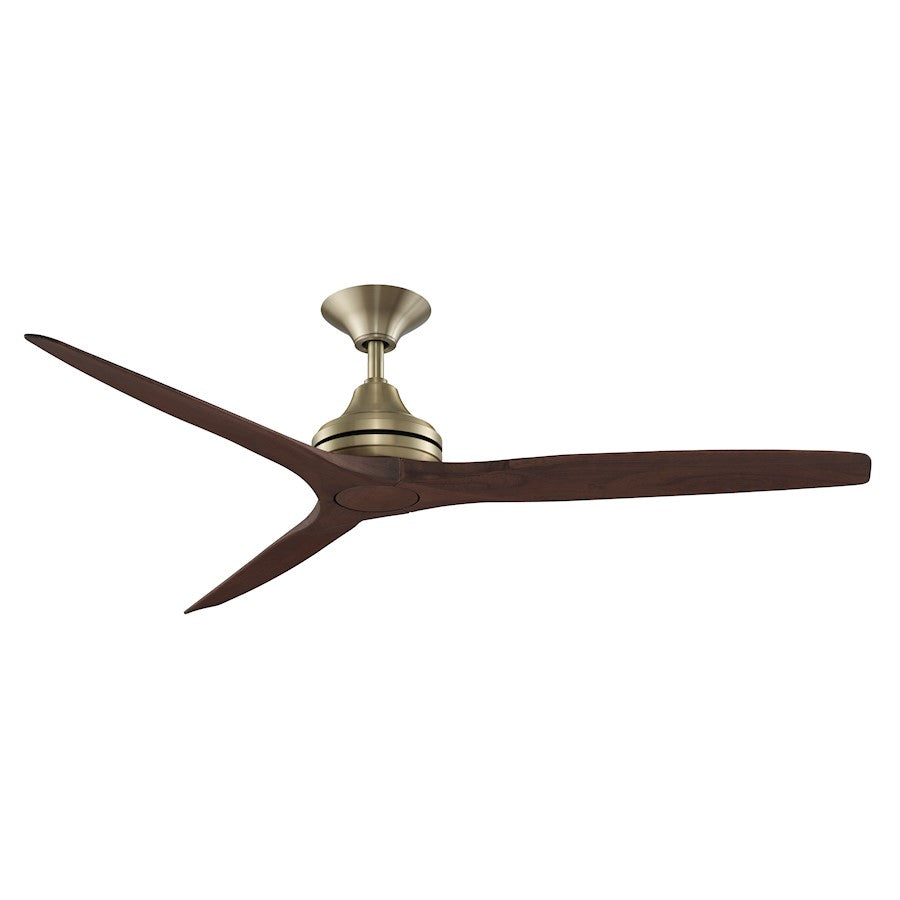

A 60-inch three-blade ceiling fan motor from Fanimation's Spitfire collection, finished in brushed satin brass, for covered patios, bedrooms, and living spaces that need powerful, efficient airflow.
The Spitfire is a statement of modern simplicity, with a sculpted three-blade design that stands out from typical fan silhouettes. This listing is for the motor only, letting you choose from Fanimation's range of Spitfire blades and optional LED light kits to create your ideal configuration. The brushed satin brass finish adds a warm, elegant touch that pairs beautifully with traditional, transitional, and glam interiors, and the damp-rated construction means it can handle the humidity of a covered outdoor area.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Bedrooms and living rooms with 8-foot or higher ceilings, using the included 4.5-inch downrod
- Large rooms up to 400 square feet, thanks to the 6641 CFM high-speed airflow
- Energy-conscious homes, with an average airflow efficiency of 108 CFM per watt on high
- Smart-home setups, with WiFi or Bluetooth compatibility (controls sold separately)
Not ideal for
- Indoor rooms with low ceilings under 7 feet, as the fan hangs 12 inches from the ceiling
- Spaces where you need a light kit included, as this motor-only model requires a separate purchase
- Homes outside the United States, as this fan is designed for 110-volt wiring only
How bright is it?
This is a ceiling fan motor only and does not include a light kit. If you add Fanimation's optional LED light kit, it will provide bright, energy-efficient illumination, but the exact lumen output depends on the kit you choose.
Light color and feel
Light color and feel will depend on the optional LED light kit you select. Fanimation's LED kits typically offer warm, inviting light, but please check the specific kit for color temperature and dimming capabilities.
Sizing and fit
This motor is designed for use with 48-inch or 60-inch Spitfire blades (sold separately). The motor housing measures 8.07 inches in diameter, and the fan hangs 12 inches from the ceiling to the blade edge with the included 4.5-inch downrod. The canopy is 7.09 inches in diameter and 2.2 inches high. Ideal for rooms with at least 8-foot ceilings.
Specifications
- Finish: Brushed Satin
- Voltage: 120V
- Voltage Cycles: 60HZ
- Number of Blades: 3
- Blade Pitch (Degrees): 21
- Light Kit Included: No
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: Yes
- Optional Spitfire blades
- Optional lighting fitters and light kits
- 18-watt LED included
- Damp rated
- Energy Star rated
- CFM High: 6641
- CFM Medium: 4614
- CFM Low: 2433
- Watts High: 61
- Watts Medium: 36
- Watts Low: 14
- Airflow Efficiency High: 108
- Airflow Efficiency Medium: 128
- Airflow Efficiency Low: 175
- RPM High: 130
- RPM Medium: 98
- RPM Low: 54
- Current Draw High: 0.52
- Current Draw Medium: 0.4
- Current Draw Low: 0.25
- Included Control: BTT9
- Included Control Type: Handheld
- Energy Star
- Safety Rating: UL/cUL
- Warranty: Limited Lifetime Warranty
- For Use in Damp Locations
- Overall Dimensions: 14.49 inches (L) x 10.47 inches (W) x 10.9 inches (H)
- Canopy Dimensions: 7.09 inches (Dia) x 2.2 inches (H)
- Housing Diameter: 8.07 inches
- Ceiling to Blade Edge: 12 inches
- Ceiling to Bottom (with LK): 13.71 inches
- Leadwire: 80 inches
- Item Weight: 22.67 lbs.
Frequently asked
Is the bulb included? No, this is a motor-only ceiling fan. Blades, light kits, and controls are sold separately.
Is it dimmable, and what dimmer should I use? This fan motor is not dimmable. Speed is controlled via the included handheld remote or optional WiFi/Bluetooth controls.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas and bathrooms with adequate ventilation.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on this motor.
Can I use this on a sloped ceiling? Yes, with an optional sloped ceiling adapter (sold separately), this fan can be installed on angled ceilings.
