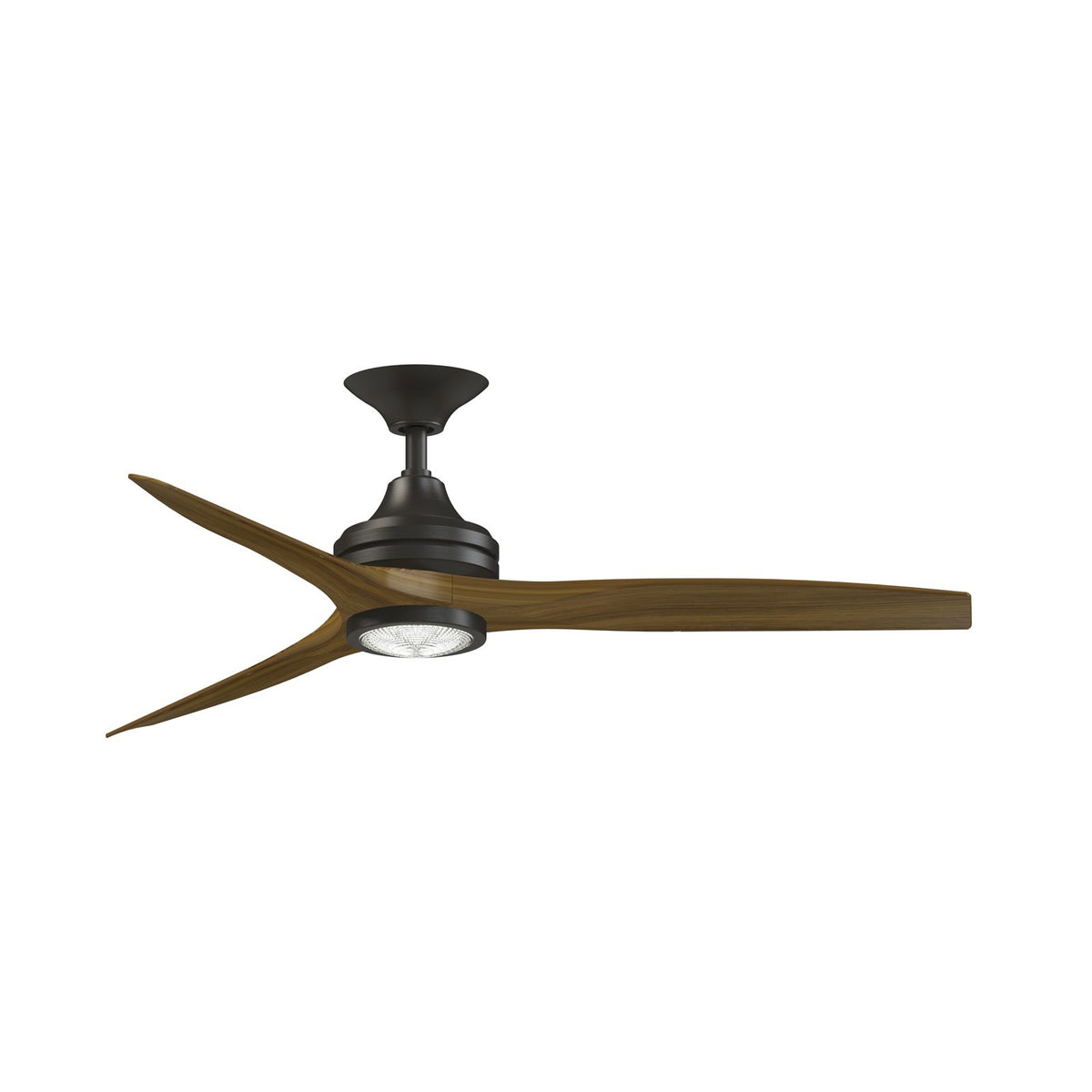

A 54-inch smart ceiling fan with an integrated LED light kit, finished in Dark Bronze with Koa blades, for indoor and covered outdoor spaces.
The Spitfire DC Custom combines a sleek, modern design with powerful performance. Its 6-speed DC motor delivers up to 7,307 CFM, while the included 18-watt LED light kit offers CCT Select technology with five color temperatures. The included TR360 remote and Wi-Fi fanSync technology provide convenient control from anywhere.
Best for
- Covered patios and porches, with damp-rated construction that handles humidity
- Sunrooms and three-season rooms needing both airflow and adjustable lighting
- Bathrooms and laundry rooms with moisture exposure
- Living rooms and bedrooms with standard 8-9 ft ceilings, using the included downrods
- Smart-home setups, with voice and app control via fanSync
Not ideal for
- Spaces directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms larger than 400 sq ft if you need primary cooling - consider a larger fan or multiple units
- Ceilings with a slope greater than 20 degrees - this fan supports up to 20 degrees
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb. That's plenty for ambient lighting in a bedroom, living room, or covered patio.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K (warm), 3000K (soft white), 3500K (neutral), 4000K (cool), and 5000K (daylight). The light is dimmable via the remote, and with a CRI of 90, colors appear vivid and accurate.
Sizing and fit
With a 54-inch blade sweep and a height of 19.42 inches (using the included 6-inch downrod), this fan fits rooms with 8-foot ceilings. The overall dimensions are 54 inches wide by 54 inches deep by 19.42 inches high. Ideal for rooms up to 400 square feet.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology with five color temperatures.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote, which offers infinite light dimming. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants like Amazon Alexa or Google Assistant.
