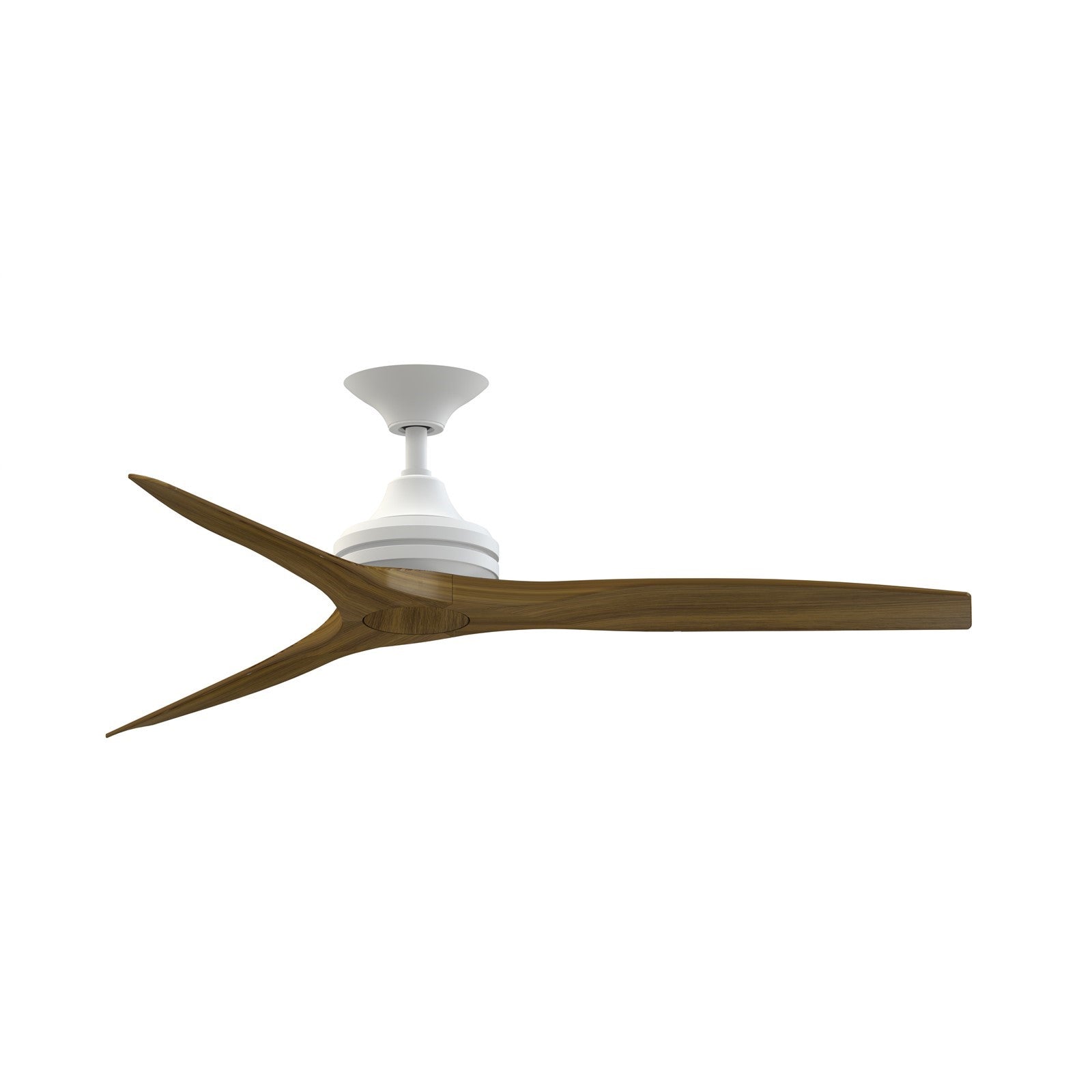

A 54-inch indoor/outdoor smart ceiling fan without a light kit, designed for covered patios, porches, and large living spaces.
The Spitfire DC Custom pairs a sleek Matte White motor with three Koa blades, delivering powerful yet quiet airflow up to 7,307 CFM from its 6-speed DC motor. This version is compatible with an optional integrated LED light kit (sold separately) that features CCT Select technology. Control the fan with the included TR360 handheld remote or via Wi-Fi fanSync technology on your smart device.
Best for
- Covered patios and porches, where the damp-rated construction withstands humidity and moisture
- Large living rooms and great rooms up to 20x20 ft, providing strong airflow
- Sunrooms and enclosed porches that need air movement without a light fixture
- Bedrooms and home offices where quiet operation and smart control are valued
- Spaces with 8-9 ft ceilings, using the included 6-inch or 12-inch downrod
Not ideal for
- Areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms with ceilings steeper than 20° slope without an angled ceiling adapter
- Spaces that require a light kit, as this model does not include one (sold separately)
How bright is it?
This fan does not include a light kit, so there is no built-in brightness. If you add the optional LED light kit, it provides 1600 lumens—comparable to a 100W incandescent bulb—and is dimmable.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures (2700K to 5000K) via CCT Select technology, allowing you to match the light to your preference. The high CRI of 90 ensures accurate color rendering.
Sizing and fit
This fan has a 54-inch blade sweep and overall dimensions of 54 x 54 x 19.69 inches. It includes both 6-inch and 12-inch downrods, allowing installation on flat or sloped ceilings up to 20°. For optimal airflow, mount the fan so the blades are 7-9 feet above the floor.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Koa
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The optional LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the remote. If you add the optional light kit, it is dimmable via the remote or app.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I control this fan with voice assistants? Yes, the fanSync technology works with compatible smart devices and voice assistants like Amazon Alexa and Google Assistant.
