A 54-inch smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces, finished in antique graphite with natural blades.

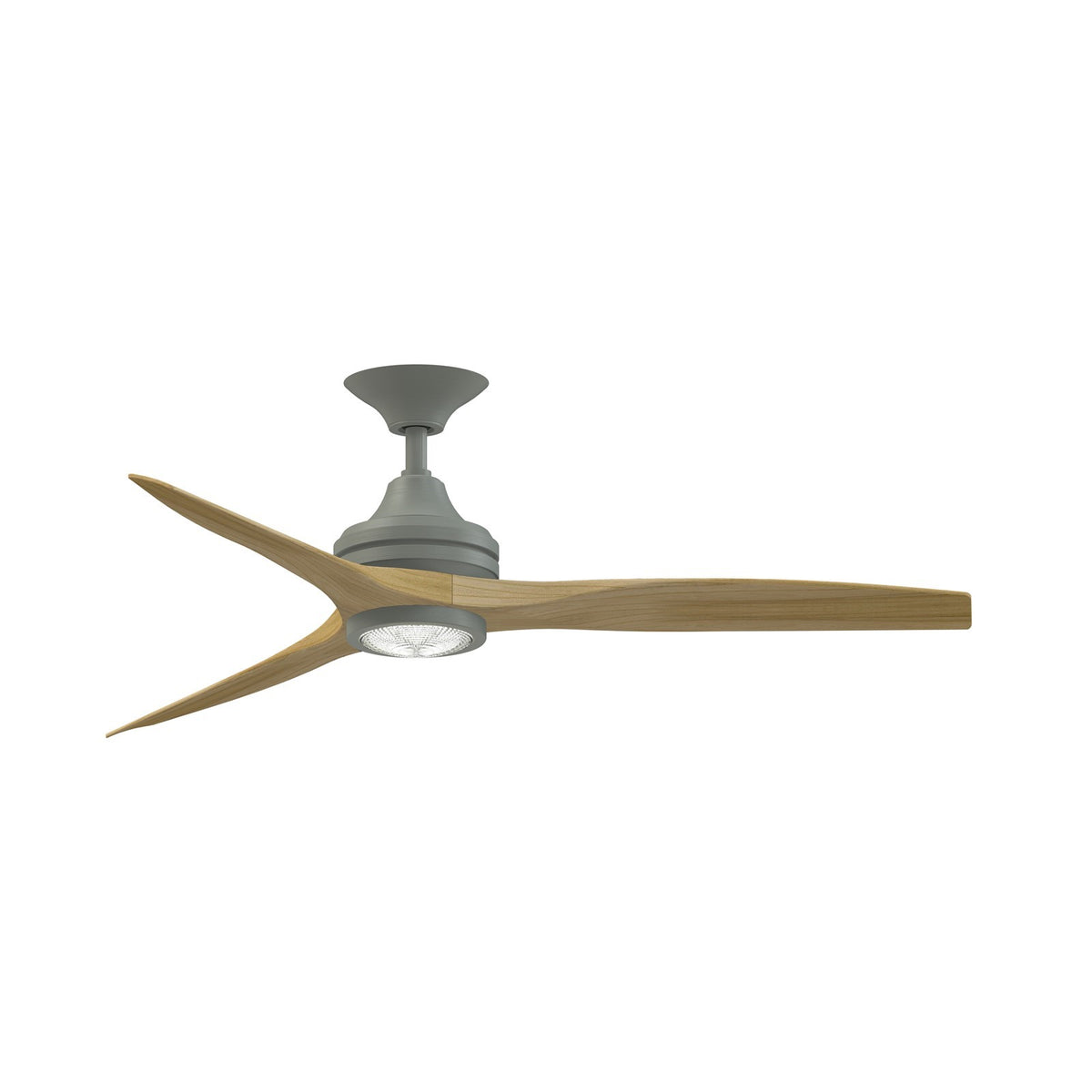

The Spitfire DC Custom pairs a sleek antique graphite motor housing with three natural buttonwood blades for a modern, organic look. Its 6-speed DC motor delivers powerful yet quiet airflow up to 7,307 CFM, while the integrated 18-watt LED light kit offers five color temperatures from warm to daylight. With Wi-Fi fanSync, you can control the fan and light from your smart device or voice assistant, and the included handheld remote puts all functions at your fingertips.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Living rooms and great rooms up to 20x20 ft, providing strong airflow and ambient light
- Sunrooms and three-season rooms that need year-round comfort
- Bedrooms and home offices where quiet operation and smart control are valued
- Spaces with ceilings up to 20° slope, using the included 6-inch or 12-inch downrod
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft when using the 12-inch downrod - consider the flush-mount version
- Spaces where a light kit is not desired - this model includes the light kit
How bright is it?
The integrated LED module produces 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms. It is dimmable for adjustable brightness.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vibrant and accurate. The included fresnel and frosted shades let you customize the light diffusion.
Sizing and fit
This fan has a 54-inch blade sweep and overall dimensions of 54 x 54 x 21.08 inches (with light kit). It includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches for higher ceilings. Recommended hanging height is 7 to 9 feet for optimal airflow.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for covered outdoor areas and bathrooms, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What is the difference between the fresnel and frosted shades? The fresnel shade provides a more focused light distribution, while the frosted shade offers a softer, more diffused glow. Both are included so you can choose the look that suits your space.
