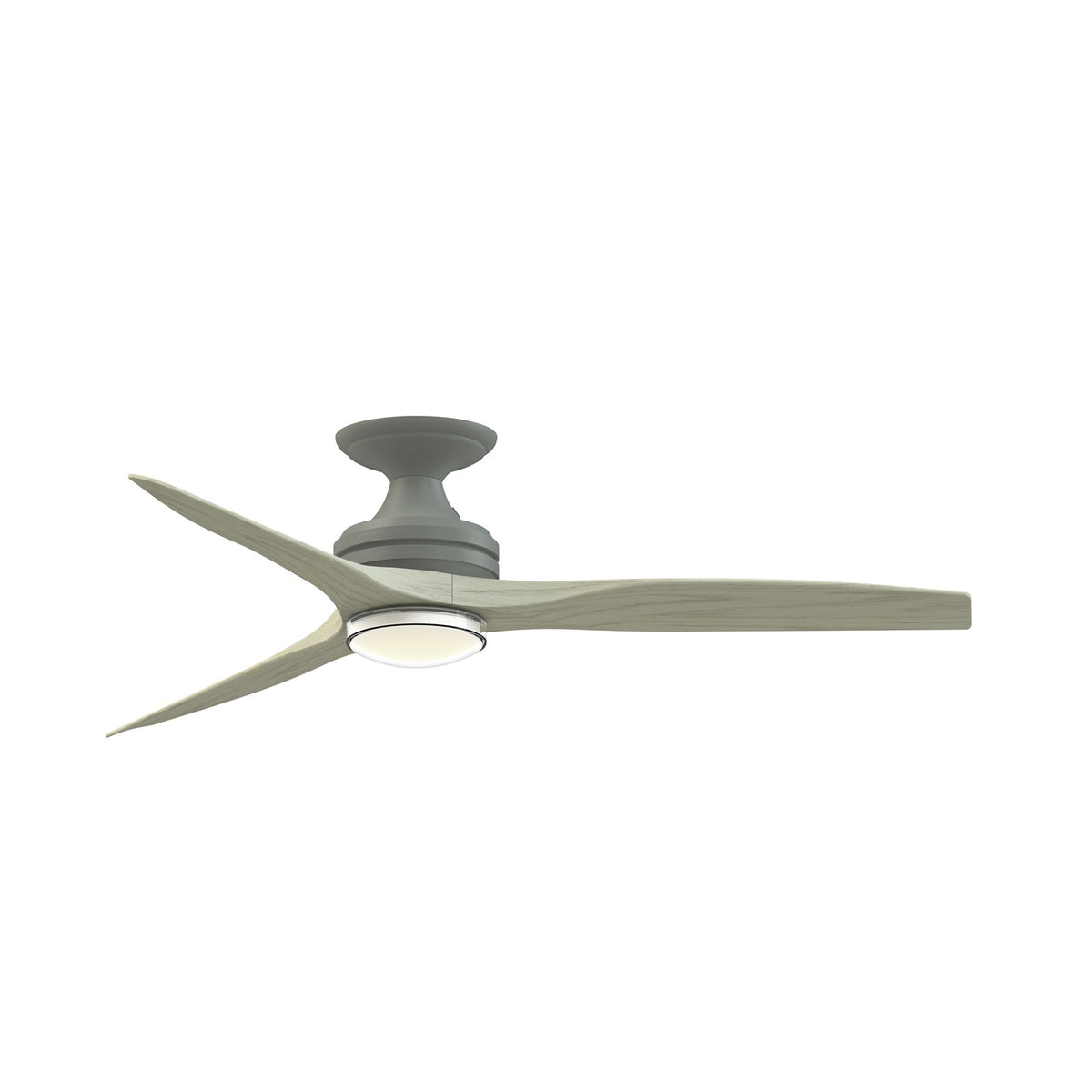

A 54-inch flush-mount smart ceiling fan with an integrated LED light kit and double-walled marine glass shade, finished in antique graphite with Light Oak blades.
The Spitfire DC Custom brings a streamlined, modern profile to spaces that need powerful airflow and flexible lighting. The antique graphite motor housing pairs with three Light Oak blades to create a warm, natural contrast. This version includes a 24-watt LED light kit with CCT Select technology, letting you shift from warm to daylight tones. The double-walled glass shade is constructed with marine-grade materials, making it suitable for outdoor wet locations. The included TR360 remote and Wi-Fi fanSync technology provide full control from anywhere.
Best for
- Covered patios and porches, where the damp-rated motor and marine-grade light kit resist humidity
- Sunrooms and three-season rooms that need flexible air movement and lighting
- Bedrooms and living areas with low ceilings, thanks to the flush mount design
- Bathrooms and laundry rooms where moisture resistance is important
- Smart-home setups, with Wi-Fi control via fanSync and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water spray - the fan is damp-rated, though the light kit is marine-grade for wet locations
- Rooms with ceilings higher than 9 feet if you prefer a flush mount, as it cannot be extended with downrods
- Spaces where you want a fan without a light kit, since the integrated LED is included
How bright is it?
This light kit produces 2000 lumens - roughly equivalent to a 150-watt incandescent bulb. It's bright enough to serve as the primary light in a medium to large room, and it dims smoothly for accent or ambient lighting.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K, 3500K, 4000K, and 5000K (daylight). The 90 CRI rating ensures colors appear vivid and accurate, ideal for living spaces.
Sizing and fit
The fan measures 54 inches wide by 54 inches deep and hangs 12 inches from the ceiling. It's designed for flat ceilings and mounts flush, making it a good fit for rooms with 8-foot ceilings. The 54-inch blade sweep suits rooms up to 18 x 20 feet.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 12"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 12"
- Item Weight: 21.5 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas, bathrooms, and laundry rooms. The light kit is marine-grade and suitable for wet locations.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the flush mount affect installation? The fan mounts directly to a flat ceiling, making it ideal for low ceilings. It includes Fanimation's KwikWire technology for easier wiring.
