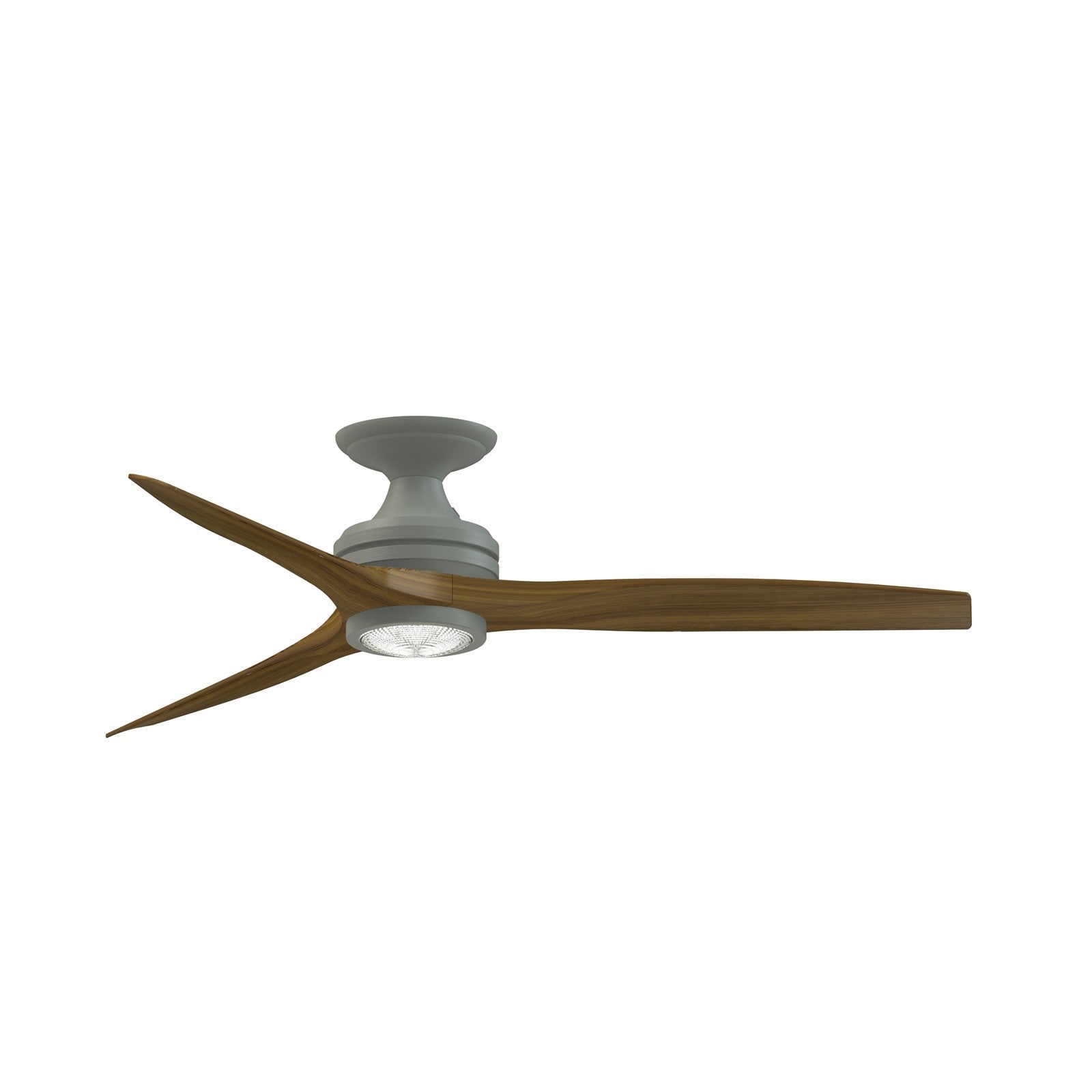

A 54-inch flush-mount smart ceiling fan with an integrated LED light kit, finished in antique graphite with Koa blades, for covered outdoor and indoor spaces.
The Spitfire DC Custom brings a streamlined, modern profile to spaces that need powerful airflow and flexible lighting. The antique graphite motor housing pairs with three Koa blades to create a warm, natural contrast that suits contemporary and transitional interiors. This version includes an 18-watt LED light kit with CCT Select technology, letting you shift from warm to daylight tones, and it is controlled by the included TR360 remote or the fanSync app.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity without direct rain exposure
- Sunrooms and three-season rooms that need year-round air movement
- Bedrooms and living areas with low ceilings, thanks to the flush mount design
- Bathrooms and laundry rooms where moisture resistance is a priority
- Smart-home setups, with Wi-Fi control via fanSync and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water spray - this fan is damp-rated, not wet-rated
- Rooms with ceilings higher than 9 feet if you prefer a flush mount, as it cannot be extended with downrods
- Spaces where you want a fan without a light kit, since the integrated LED is included
How bright is it?
This light kit produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. It's bright enough to serve as the primary light in a small to medium room, and it dims smoothly for accent or ambient lighting.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K, 3500K, 4000K, and 5000K (daylight). This lets you match the light to the time of day or your activity. The 90 CRI rating means colors appear vivid and accurate, ideal for spaces where you want true-to-life tones.
Sizing and fit
The fan measures 54 inches wide by 54 inches deep and hangs 11.33 inches from the ceiling. It's designed for flat ceilings and mounts flush, making it a good fit for rooms with 8-foot ceilings. The 54-inch blade sweep suits rooms up to 18 x 20 feet.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 11.33"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 11.33"
- Item Weight: 20.99 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas, bathrooms, and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the flush mount affect installation? The fan mounts directly to a flat ceiling, making it ideal for low ceilings. It includes Fanimation's KwikWire technology for easier wiring.
