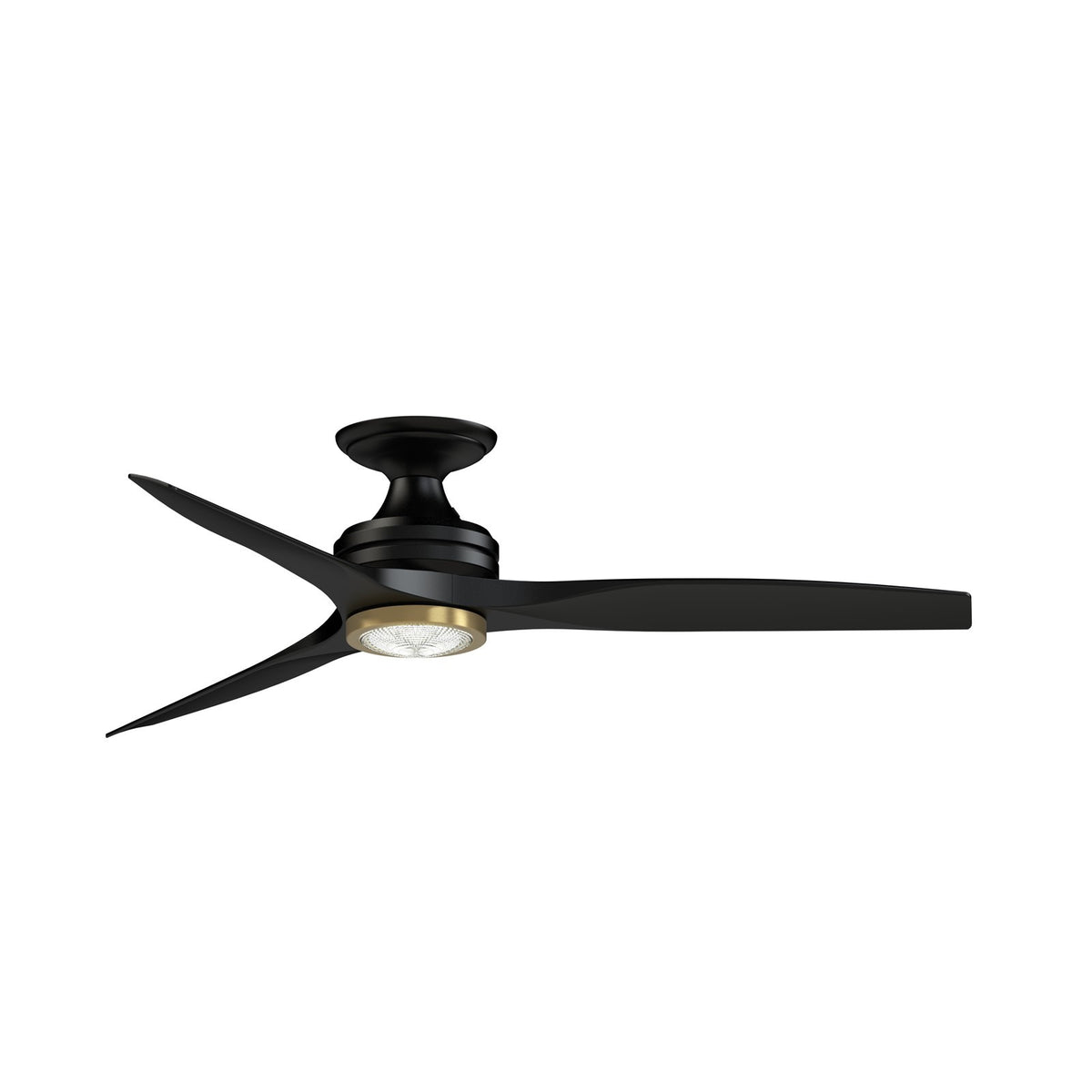

A 54-inch flush-mount smart ceiling fan with an integrated LED light kit, finished in black with black blades, for covered outdoor and indoor spaces.
The Spitfire DC Custom combines a sleek, low-profile design with powerful performance. Its 6-speed DC motor delivers up to 7,307 CFM of airflow while staying quiet and energy-efficient. The black motor and blades create a modern look that suits contemporary and transitional interiors. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight. With Wi-Fi enabled fanSync technology, you can control the fan and light from your smartphone or voice assistant. The included TR360 remote provides convenient control of speed, reversing, light dimming, and CCT selection.
Best for
- Covered patios and porches, where the damp-rated construction withstands humidity and moisture
- Bedrooms and living rooms with low ceilings, thanks to the flush mount design
- Sunrooms and laundry rooms that need reliable air circulation and lighting
- Large rooms up to 400 square feet, providing strong airflow and ambient light
Not ideal for
- Outdoor areas directly exposed to rain or water, as this fan is damp-rated, not wet-rated
- Rooms with ceilings higher than 9 feet, as the flush mount limits hanging height
How bright is it?
The integrated 18-watt LED light kit provides 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium-sized rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures (2700K to 5000K) to create the perfect ambiance, from warm and cozy to bright and energizing. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This fan measures 54 inches in diameter and 11.33 inches from ceiling to bottom, making it ideal for rooms with 8-foot ceilings. The flush mount design keeps it close to the ceiling, maximizing headroom.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 11.33"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 11.33"
- Item Weight: 20.99 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and the LED module is built-in.
Is it dimmable, and what dimmer should I use? The fan speed and light dimming are controlled via the included TR360 remote. The light is dimmable.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor.
Does this fan work with smart home systems? Yes, it features Wi-Fi enabled fanSync technology, allowing control via compatible smart devices and voice assistants.
