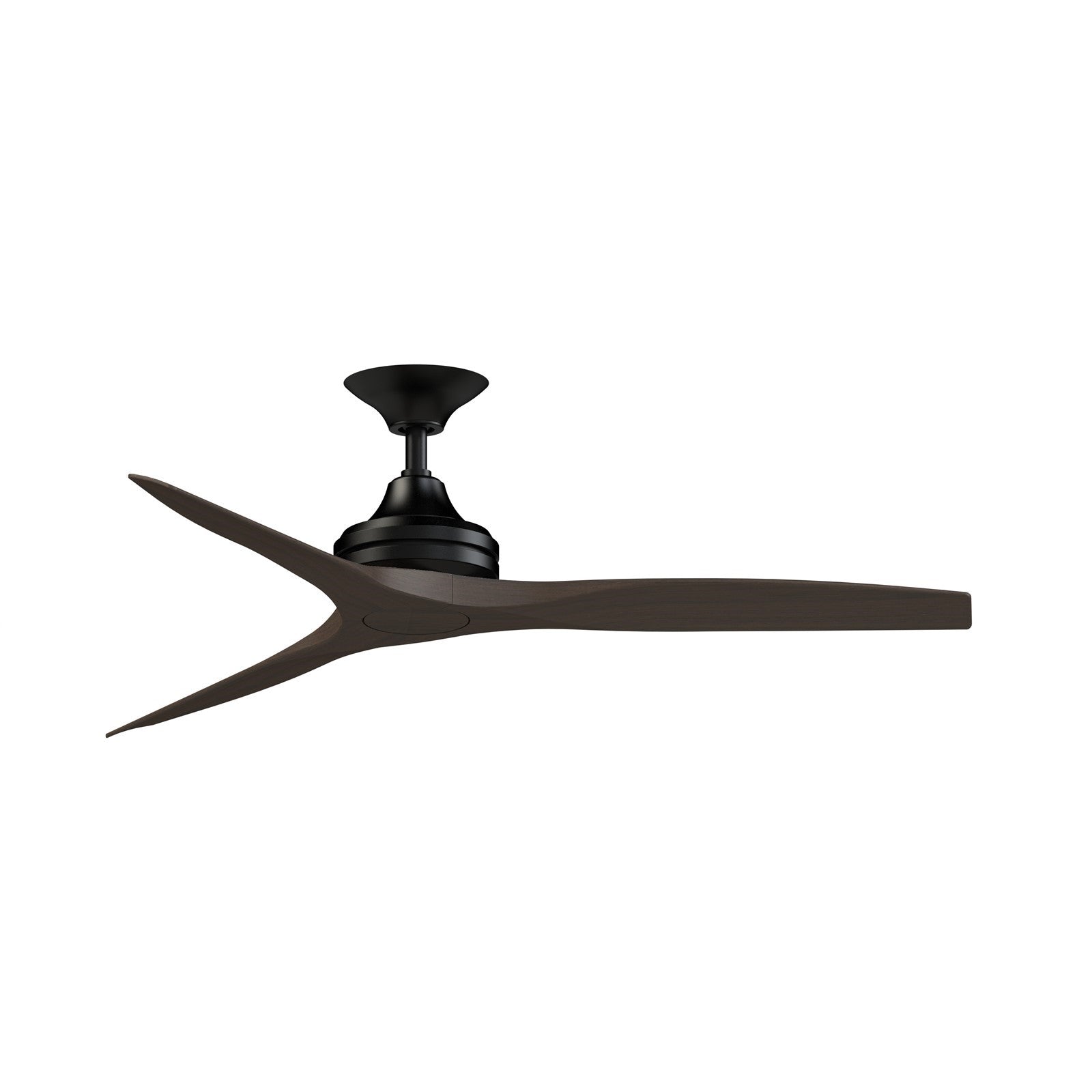

A 54-inch downrod smart ceiling fan with a black motor and dark walnut blades, designed for indoor and covered outdoor spaces.
The Spitfire DC Custom delivers powerful, quiet airflow up to 7,307 CFM from its 6-speed DC motor. The dark walnut buttonwood blades add a warm contrast to the black finish. This fan is compatible with an optional LED light kit (sold separately) and includes the TR360 remote and Wi-Fi fanSync for smart control.
Best for
- Covered patios and porches, where the damp-rated motor and blades resist humidity
- Living rooms and great rooms with standard to high ceilings, using the included downrods
- Bedrooms needing quiet, energy-efficient air movement
- Smart-home setups, with voice assistant and app control via fanSync
- Year-round comfort, with a reversible motor for summer and winter airflow
Not ideal for
- Outdoor areas directly exposed to rain or water, as it is damp-rated, not wet-rated
- Rooms with very low ceilings, where a flush mount would be better
How bright is it?
This fan does not include a light kit, so brightness depends on the optional LED kit you add. The compatible 18-watt LED kit produces 1600 lumens, similar to a 100W incandescent bulb.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and natural.
Sizing and fit
This downrod fan measures 54 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod. It fits flat or sloped ceilings up to 20 degrees, and optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 17.93 lbs.
Frequently asked
What is it made of? The motor housing is finished in black, and the blades are made of buttonwood with a dark walnut finish.
Where in the home does this work best? It works best in living rooms, bedrooms, and covered outdoor areas like patios and porches, thanks to its damp rating.
How is it mounted or assembled? It mounts to flat or sloped ceilings using the included 6-inch and 12-inch downrods. Optional downrods up to 72 inches are available.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with an optional integrated LED light kit, sold separately.
