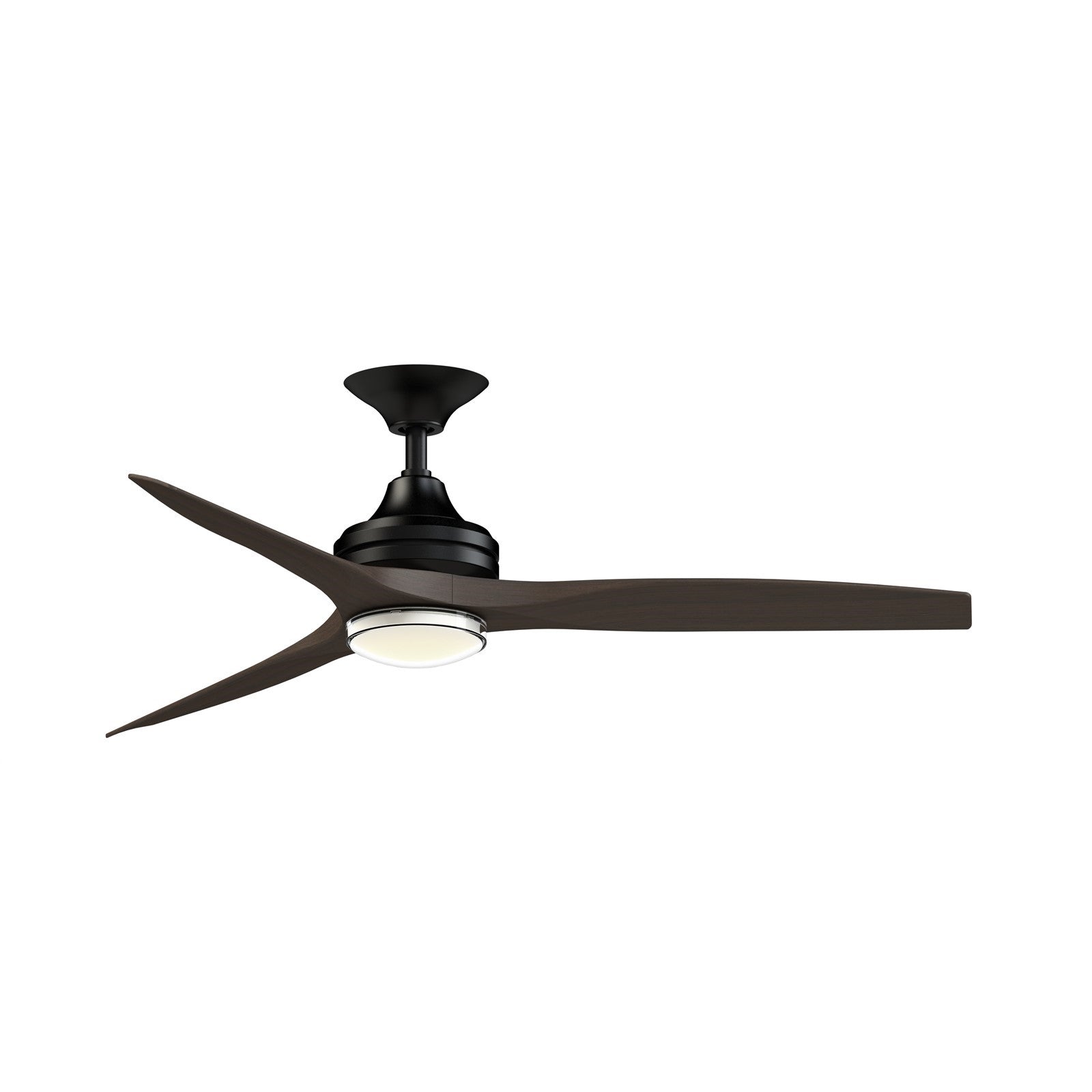

A 54-inch downrod smart ceiling fan with an integrated LED light kit, designed for indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a black motor with dark walnut buttonwood blades, delivering powerful, quiet airflow up to 7,307 CFM. Its integrated 24-watt LED light kit features CCT Select technology with five color temperatures, and the double-walled marine-grade glass shade is built for durability. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync.
Best for
- Covered patios and porches, where the damp-rated motor and blades resist humidity
- Living rooms and great rooms with standard to high ceilings, using the included downrods
- Bedrooms needing quiet, energy-efficient air movement and integrated lighting
- Smart-home setups, with voice assistant and app control via fanSync
- Year-round comfort, with a reversible motor for summer and winter airflow
Not ideal for
- Outdoor areas directly exposed to rain or water, as it is damp-rated, not wet-rated
- Rooms with very low ceilings, where a flush mount would be better
How bright is it?
The integrated LED module produces 2000 lumens - roughly equivalent to a 150W incandescent bulb - enough to light a large living room or patio area. It is dimmable, so you can adjust the brightness to suit the mood.
Light color and feel
Choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and natural. The double-walled glass shade diffuses light evenly.
Sizing and fit
This downrod fan measures 54 inches in diameter and hangs 22 inches from the ceiling with the included 12-inch downrod. It fits flat or sloped ceilings up to 20 degrees, and optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 19.74 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is safe for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What makes the light kit marine-grade? The double-walled glass shade and marine-grade materials make it more durable and suitable for outdoor wet locations, though the fan itself is only damp-rated.
