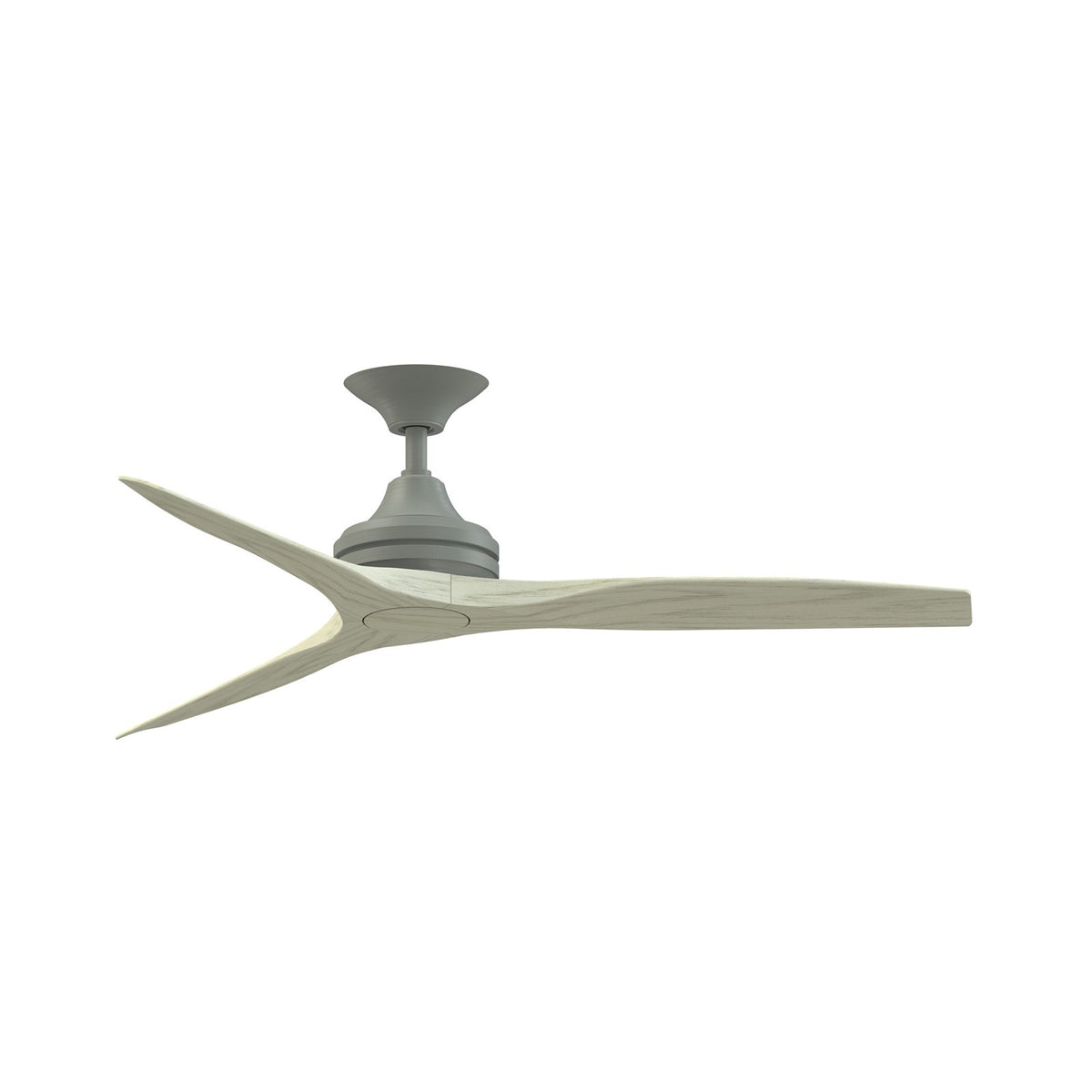

A 54-inch downrod smart ceiling fan with antique graphite finish and Light Oak blades, designed for indoor and covered outdoor spaces.
The Spitfire DC Custom combines a sleek, modern motor housing with three Light Oak blades for a clean, natural look. This version is compatible with an optional LED light kit (sold separately) and includes the TR360 remote for full control. With Wi-Fi fanSync technology, you can adjust speed, direction, and lighting from your smartphone or voice assistant. The damp-rated construction makes it suitable for covered patios, sunrooms, and bathrooms.
Best for
- Covered patios and porches, where the damp-rated motor and blades resist humidity
- Sunrooms and three-season rooms that need flexible air movement
- Bedrooms and living areas with standard or slightly sloped ceilings, using the included 6-inch or 12-inch downrods
- Bathrooms and laundry rooms where moisture resistance is important
- Smart-home setups, with Wi-Fi control via fanSync and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water spray - this fan is damp-rated, not wet-rated
- Rooms with very low ceilings (under 8 feet) if you use the 12-inch downrod, as it increases hanging height
- Spaces where you need a light kit included, since this version is sold without one
How bright is it?
This fan does not include a light kit. If you add the optional 18-watt LED kit, it produces 1600 lumens - about as bright as a 100-watt incandescent bulb - and is dimmable.
Light color and feel
With the optional CCT Select light kit, you can choose from 2700K (warm white) to 5000K (daylight). The 90 CRI rating ensures accurate color rendering, ideal for living spaces.
Sizing and fit
The fan measures 54 inches wide by 54 inches deep and hangs 19.69 inches from the ceiling with the included 12-inch downrod (13.69 inches with the 6-inch downrod). It fits flat or sloped ceilings up to 20 degrees. The 54-inch blade sweep suits rooms up to 18 x 20 feet.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 17.93 lbs.
Frequently asked
What is it made of? The motor housing is finished in antique graphite, and the blades are made of buttonwood with a Light Oak finish.
Where in the home does this work best? It works best in covered outdoor areas, sunrooms, bedrooms, and living rooms with standard ceilings. It is damp-rated for humidity but not direct rain.
How is it mounted or assembled? It mounts to flat or sloped ceilings (up to 20 degrees) using the included 6-inch and 12-inch downrods. Optional downrods up to 72 inches are available.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit with CCT Select, which is sold separately.
