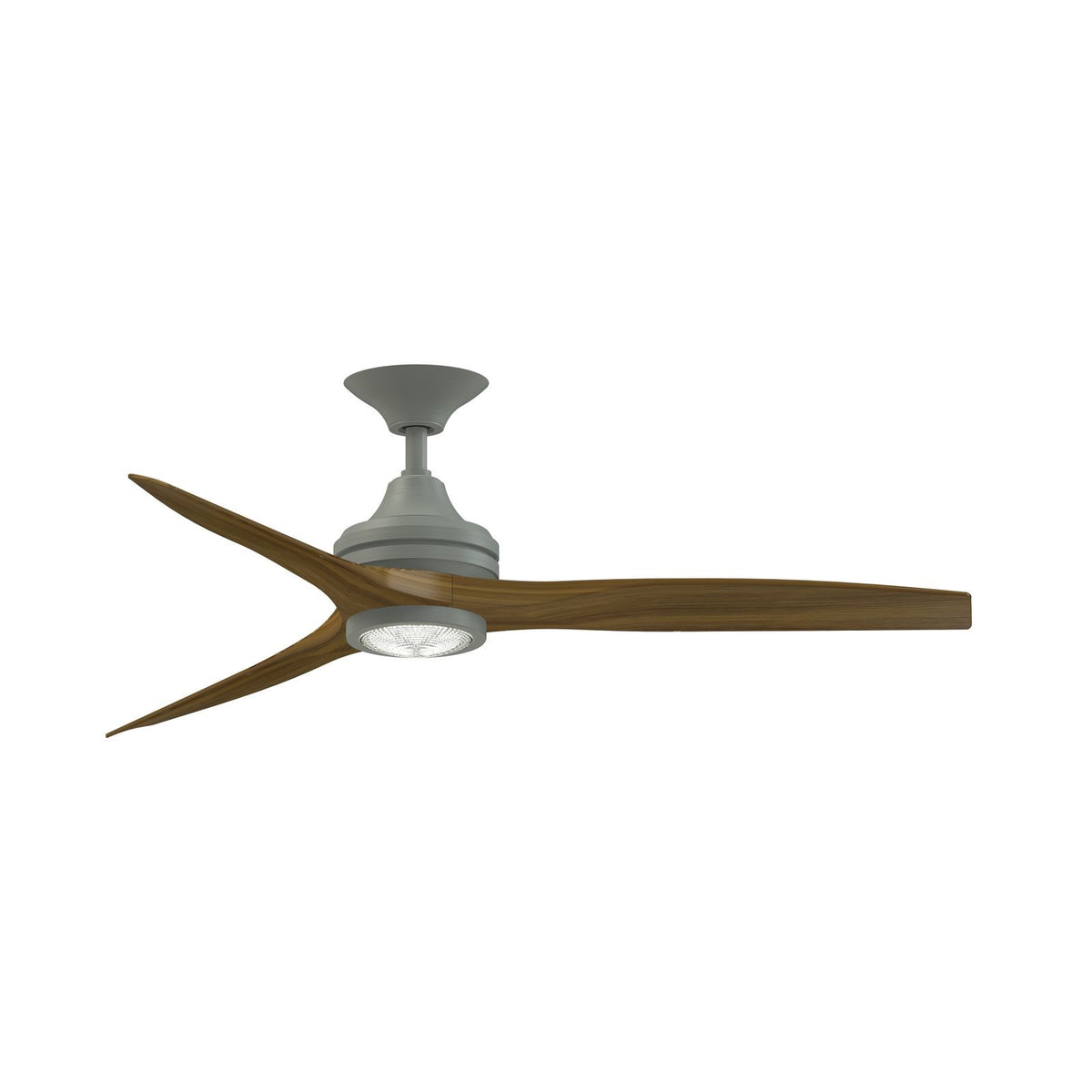

A 54-inch damp-rated smart ceiling fan with an integrated LED light kit, designed for covered outdoor spaces and large indoor rooms.
The Spitfire DC Custom pairs a streamlined Antique Graphite motor housing with three Koa wood blades for a warm, modern look that suits coastal and contemporary homes. Its 6-speed DC motor delivers powerful airflow up to 7,307 CFM while staying quiet and energy-efficient. The integrated LED light kit features CCT Select technology, letting you choose from five color temperatures from warm white to daylight, and includes both fresnel and frosted shades for versatile light diffusion.
Best for
- Covered patios, porches, and sunrooms where damp-rated durability is needed
- Large bedrooms and living rooms up to 400 sq ft, mounted with the included downrods
- Bathrooms and laundry rooms with high humidity, as long as not directly exposed to rain
- Smart-home setups, with Wi-Fi control via the fanSync app or voice assistants
- Year-round comfort with a reversible motor for summer and winter airflow
Not ideal for
- Outdoor areas with direct rain or water exposure - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need the full 21-inch hanging height
- Those who prefer a light kit with a single fixed color temperature - this one offers five selectable options
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, enough to light a large living area or covered patio. The light is dimmable, so you can adjust it from a soft glow to full brightness.
Light color and feel
Choose from 2700K warm white to 5000K daylight, with 3000K and 3500K in between. This flexibility lets you match the light to your activity or mood, from cozy evenings to bright task lighting. With a CRI of 90, colors appear vivid and true to life. The included fresnel and frosted shades let you choose between a clear, focused beam or a softer, diffused glow.
Sizing and fit
The fan measures 54 inches in diameter and hangs 15.35 to 21.35 inches from the ceiling with the included 6-inch and 12-inch downrods. It fits rooms with flat or slightly sloped ceilings (up to 20 degrees). For low ceilings, consider the flush-mount version.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 18W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote, which offers infinite light dimming.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What's the difference between the fresnel and frosted shades? The fresnel shade provides a clearer, more focused light, while the frosted shade diffuses the light for a softer glow. Both are included so you can choose based on your preference.
