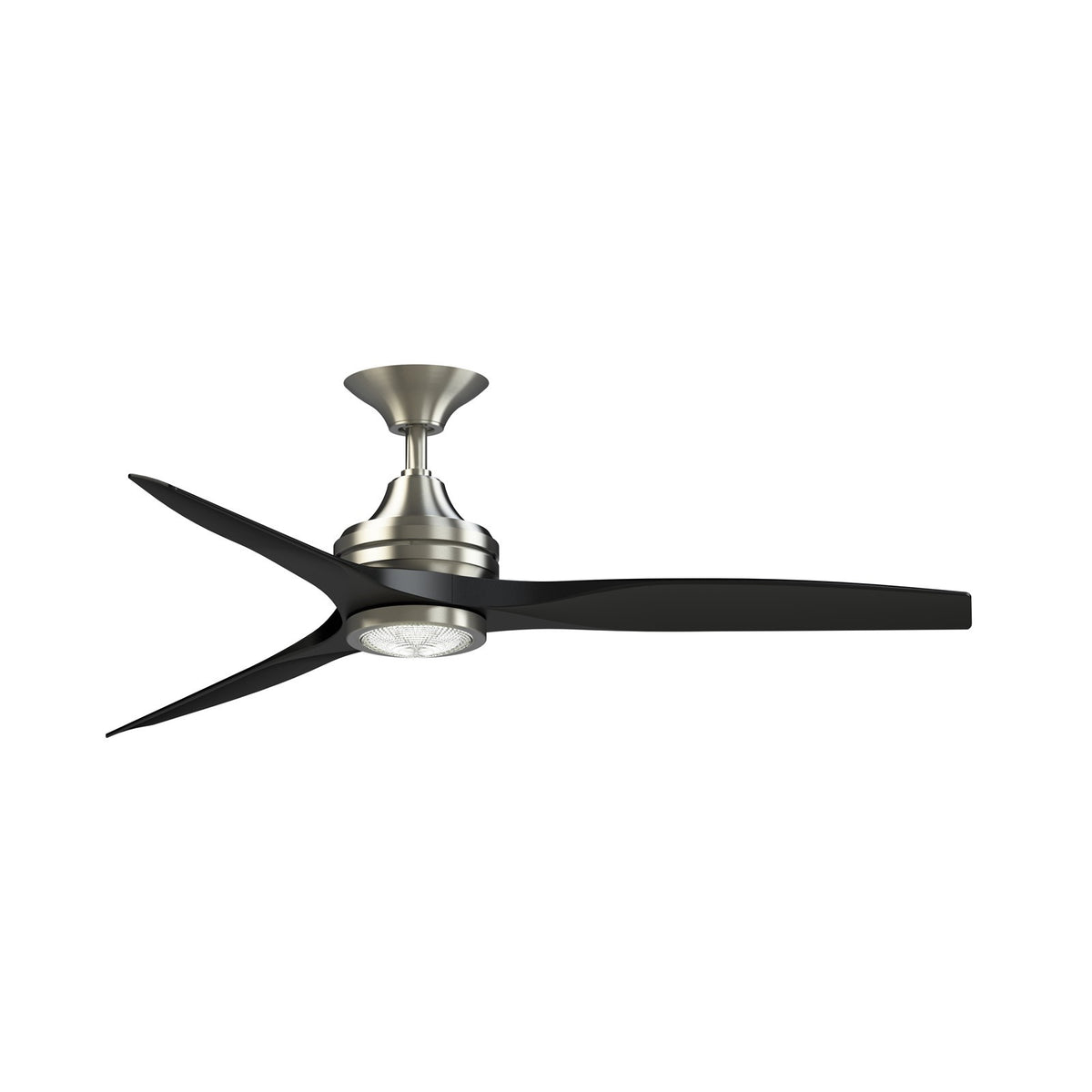

A 54-inch smart ceiling fan with an integrated LED light kit, finished in brushed nickel with black blades, for covered patios and large rooms.
The Spitfire DC Custom from Fanimation combines powerful airflow with customizable lighting. Its 6-speed DC motor moves up to 7,307 CFM quietly, while the included 18-watt LED light kit offers five color temperatures from warm white to daylight. The TR360 remote and Wi-Fi fanSync app give you full control over fan speed, light dimming, and color selection. Damp-rated for covered outdoor use, this fan is built for comfort and style.
Best for
- Covered patios and porches where you want both air movement and light
- Living rooms and bedrooms up to 18 x 18 feet
- Sunrooms and bathrooms that benefit from humidity-resistant construction
- Smart-home setups - control via fanSync app, Alexa, or Google Assistant
Not ideal for
- Rooms with ceilings under 8 feet - the downrod adds height; consider the flush-mount version
- Directly exposed outdoor areas - this fan is damp-rated, not wet-rated
- Anyone who prefers a single fixed light color - this kit is adjustable
How bright is it?
The integrated LED light kit delivers 1,600 lumens - about as bright as a 100W incandescent bulb - enough to light a medium-sized room. It's dimmable, so you can lower it for ambiance.
Light color and feel
CCT Select technology lets you choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, and 5000K daylight. With a 90 CRI, colors appear accurate and vibrant. The light is dimmable via the remote.
Sizing and fit
This downrod model measures 54 inches wide and hangs 19.42 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings. The 54-inch blade sweep suits rooms up to 18 x 18 feet.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 19.23 lbs.
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, so it's safe for covered outdoor areas, bathrooms, and other humid spaces - but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, this fan supports up to a 20° slope with the included downrods.
