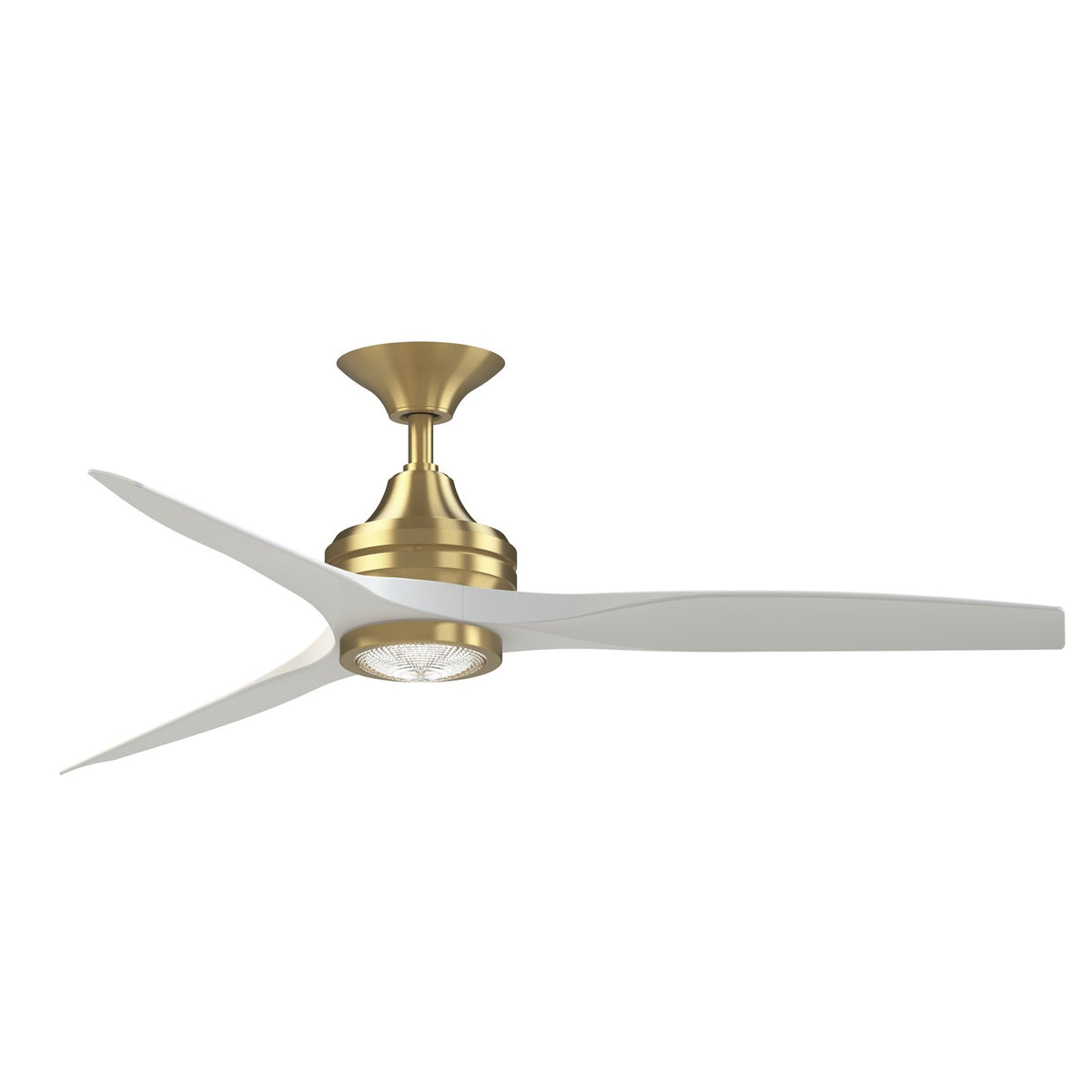

A 54-inch smart ceiling fan with an integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in brushed satin brass with matte white blades, for covered patios, porches, and spacious rooms.
The Spitfire DC Custom combines powerful airflow—up to 7,307 CFM from its quiet 6-speed DC motor—with customizable lighting. The integrated 18-watt LED module features CCT Select technology, letting you choose from five color temperatures (2700K to 5000K) to match your mood or activity. The brushed satin brass motor housing and matte white buttonwood blades create a clean, contemporary look that works indoors and in covered outdoor spaces. Control everything with the included TR360 handheld remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Bedrooms and living rooms that need both air movement and ambient light
- Sunrooms and laundry rooms that need reliable air movement in humid conditions
- Smart-home setups—control via fanSync app, voice assistant, or remote
- Energy-conscious buyers who want a reversible DC motor for year-round efficiency
Not ideal for
- Rooms with low ceilings—this downrod version adds height; consider the flush-mount option
- Outdoor areas directly exposed to rain or water—damp rated, not wet rated
- Small rooms under 12 x 12 feet where a 54-inch sweep may be overpowering
How bright is it?
The integrated 18W LED module delivers 1600 lumens—roughly equivalent to a 100W incandescent bulb—enough to light a medium-sized room. It's dimmable via the remote.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors render accurately, making it suitable for kitchens or art-filled rooms.
Sizing and fit
With a 54-inch blade sweep and included 6-inch and 12-inch downrods, this fan fits rooms at least 12 x 12 feet. The overall height ranges from 13.69 to 19.69 inches without the light kit, and 15.35 to 21.35 inches with it. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp rated for covered outdoor areas and humid indoor spaces like bathrooms and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees. For steeper slopes, additional downrods may be needed.
