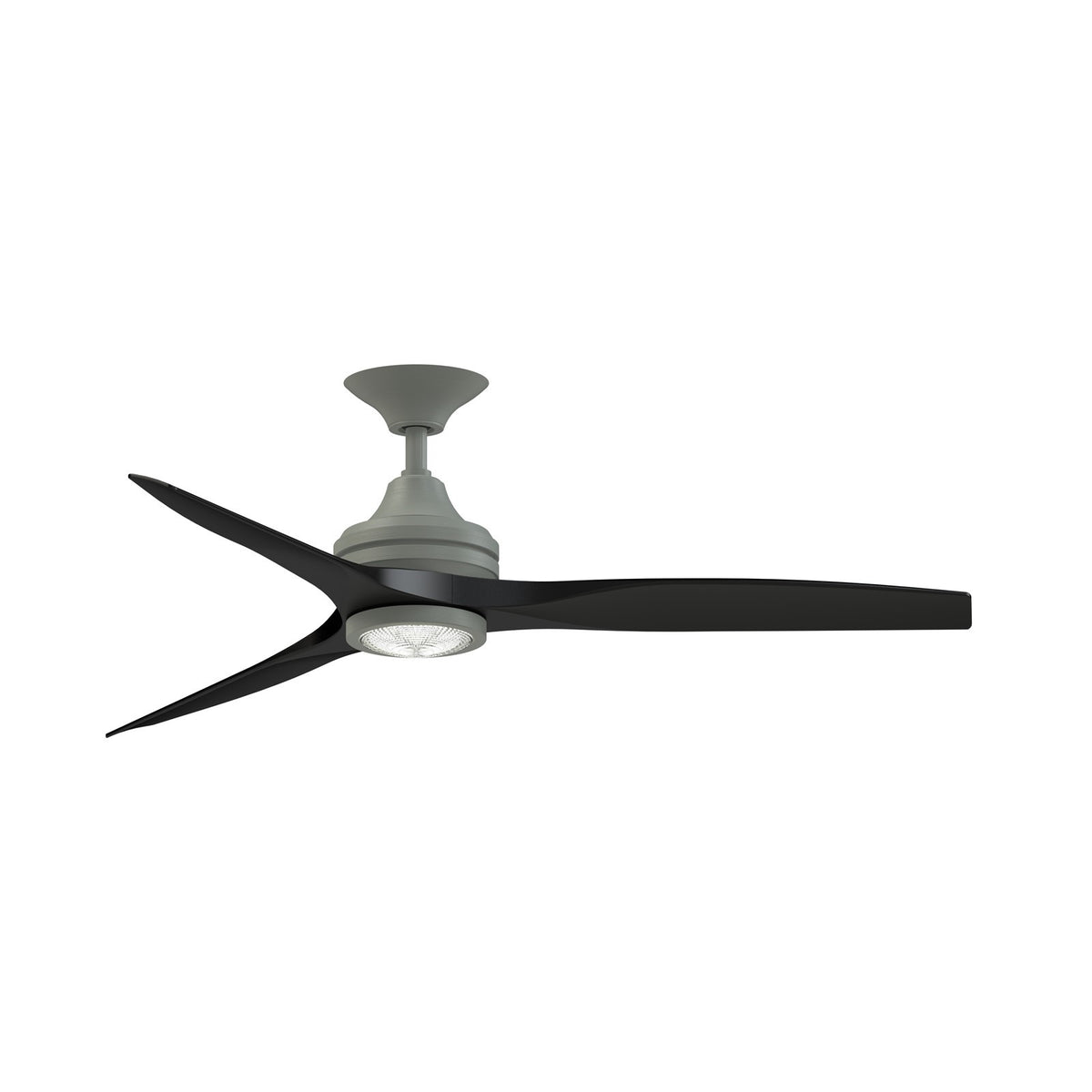

A 54-inch smart ceiling fan with an integrated LED light kit for covered patios, porches, and large living spaces, finished in antique graphite with black blades.
The Spitfire DC Custom combines a sleek, modern design with powerful performance. Its antique graphite motor housing pairs with three black buttonwood blades, and the integrated 18-watt LED light kit offers five color temperatures from warm 2700K to daylight 5000K. The 6-speed DC motor delivers up to 7,307 CFM of quiet airflow, while the included remote and Wi-Fi fanSync app provide convenient control. Damp-rated for covered outdoor use, it's built to handle humidity without direct rain exposure.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Living rooms and great rooms up to 20 x 20 feet, with powerful airflow and bright light
- Bedrooms with standard 8-9 foot ceilings, using the included downrods
- Smart-home setups, with control via the fanSync app or voice assistant
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 feet, as the downrod adds height
How bright is it?
The integrated LED light kit delivers 1600 lumens—comparable to a 100-watt incandescent bulb—providing ample illumination for most living spaces. It's dimmable via the remote or app.
Light color and feel
Choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. The 90 CRI rating ensures colors appear accurate and vibrant, and the light is fully dimmable.
Sizing and fit

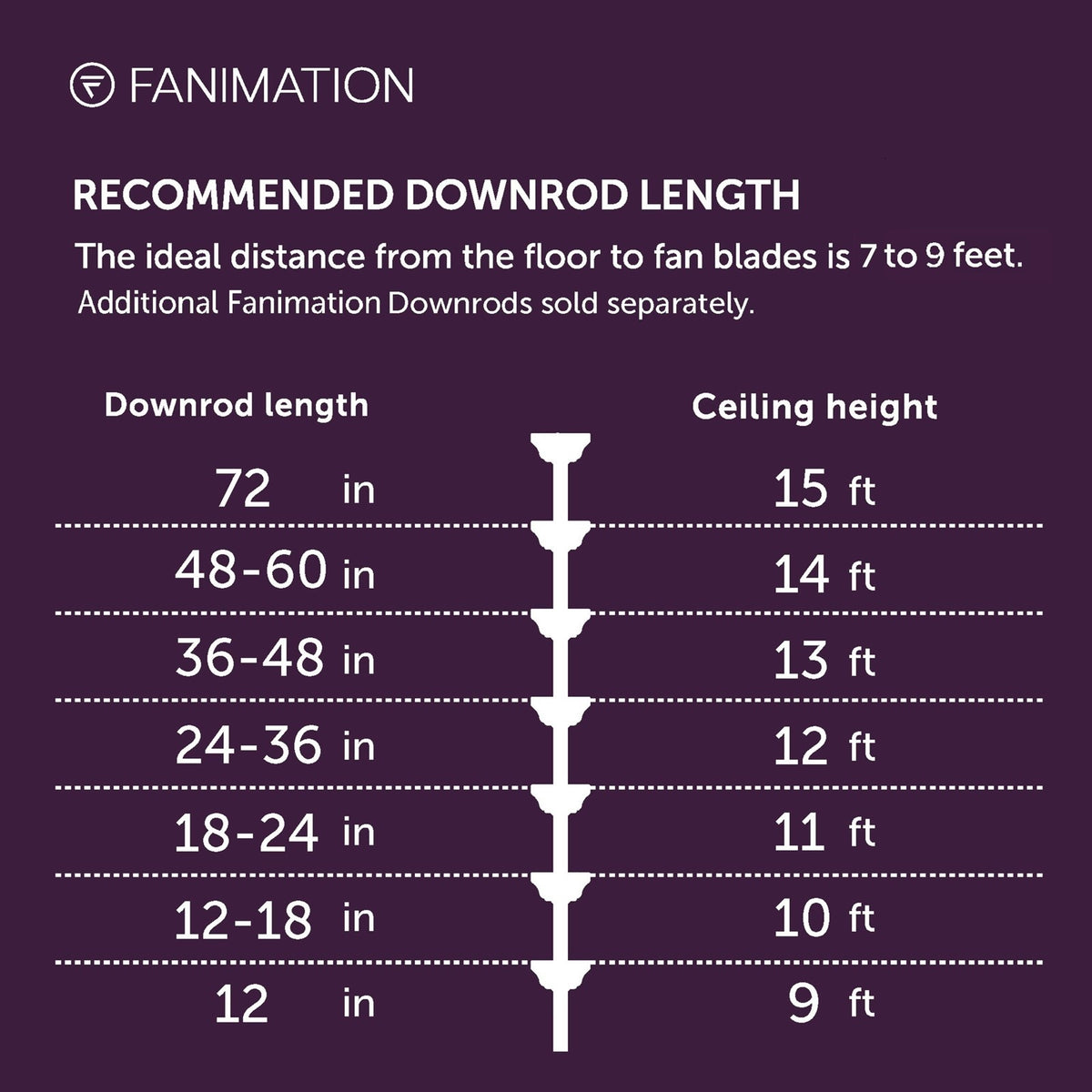

This fan measures 54 inches in diameter and hangs 21.08 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings. It fits spaces at least 12 x 12 feet for optimal airflow.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 21.08"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 19.23 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features five selectable color temperatures.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No separate dimmer switch is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees.
Ships from our warehouse in 1-4 Business Days
