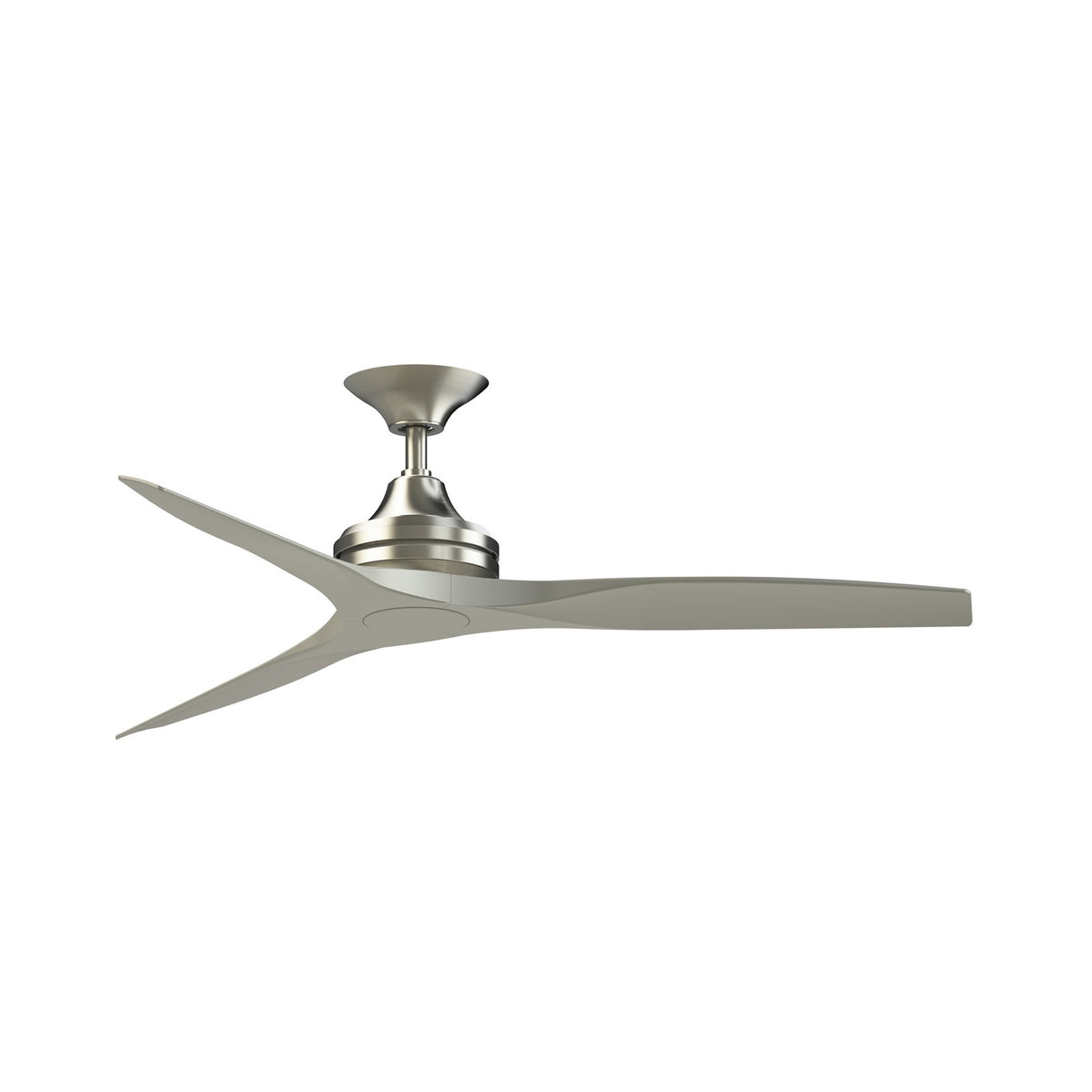

A 54-inch smart ceiling fan with brushed nickel finish throughout, for covered patios and large rooms.
The Spitfire DC Custom from Fanimation combines a sleek, monochromatic look with powerful performance. Its 6-speed DC motor moves up to 7,307 CFM quietly, and the included TR360 remote puts fan speed, reversing, and optional light control at your fingertips. Wi-Fi enabled fanSync lets you adjust comfort from your phone or voice assistant, while the damp-rated construction stands up to humid, covered outdoor spaces.
Best for
- Covered patios and porches where a cohesive brushed nickel look is desired
- Bedrooms and living rooms up to 18 x 18 feet
- Sunrooms and laundry rooms that need reliable air movement in humidity
- Smart-home setups - control via fanSync app, Alexa, or Google Assistant
Not ideal for
- Rooms with ceilings under 8 feet - the downrod adds height; consider the flush-mount version
- Directly exposed outdoor areas - this fan is damp-rated, not wet-rated
- Anyone who wants a light kit included - this version is compatible but the light kit is sold separately
How bright is it?
This fan does not include a light kit. It is compatible with Fanimation's integrated 18-watt LED light kit (sold separately), which delivers 1,600 lumens - about as bright as a 100W incandescent bulb - when added.
Light color and feel
If you add the optional light kit, CCT Select technology lets you choose from five color temperatures - 2700K warm white to 5000K daylight - so you can match the mood from cozy to crisp. The kit is dimmable and has a 90 CRI for accurate color rendering.
Sizing and fit
This downrod model measures 54 inches wide and hangs 19.69 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings. The 54-inch blade sweep suits rooms up to 18 x 18 feet.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Brushed Nickel
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 17.93 lbs.
Frequently asked
Is the bulb included? No light kit is included with this fan. It is compatible with Fanimation's integrated LED light kit, sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is fully adjustable via the included TR360 remote. If you add the optional light kit, it is dimmable through the remote as well.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, so it's safe for covered outdoor areas, bathrooms, and other humid spaces - but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, this fan supports up to a 20° slope with the included downrods.
