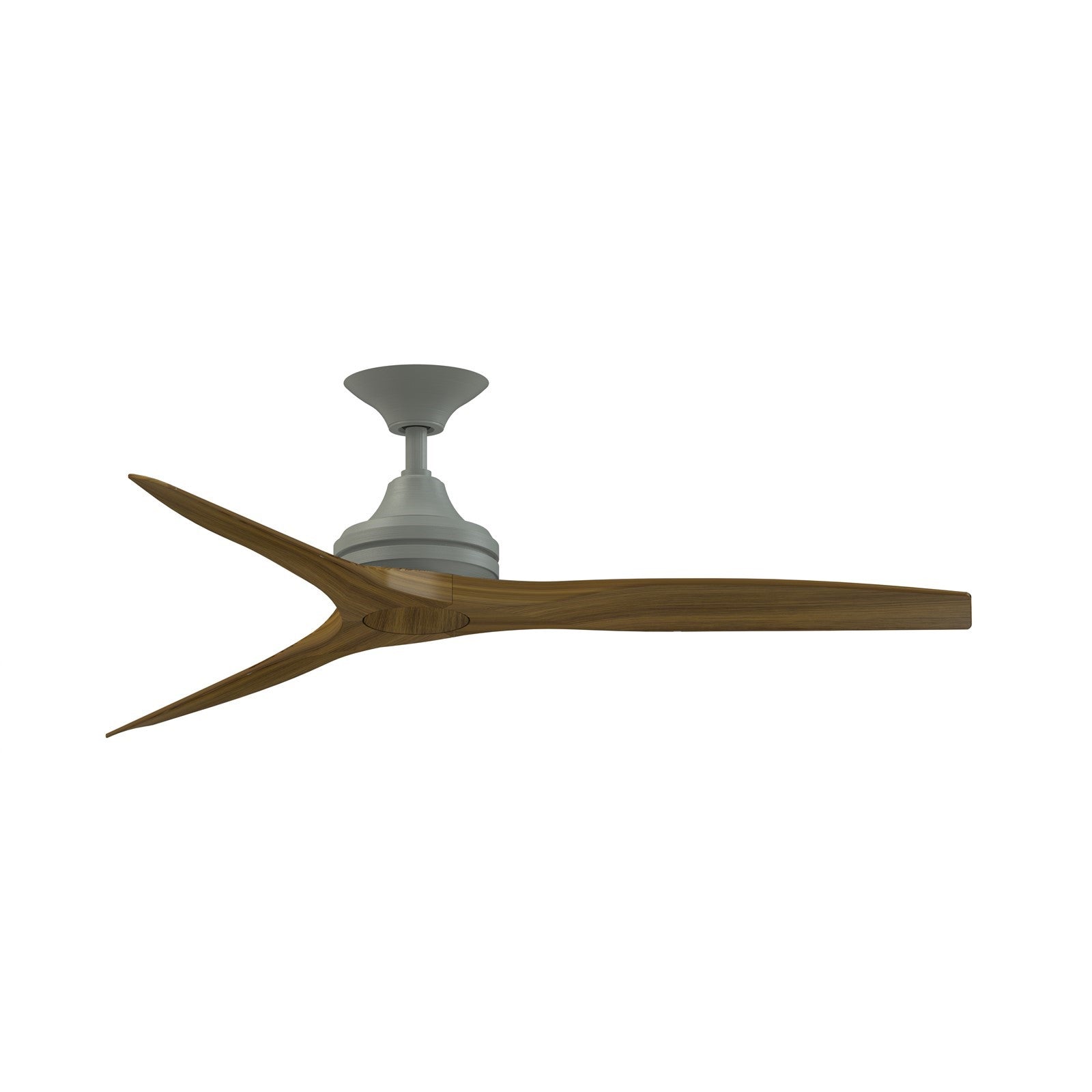

A 54-inch smart ceiling fan for covered patios, porches, and large living spaces, finished in antique graphite with koa blades.
The Spitfire DC Custom brings a sleek, modern look to indoor and covered outdoor spaces. Its antique graphite motor housing pairs with three koa buttonwood blades for a warm, natural contrast. The 6-speed DC motor delivers powerful yet quiet airflow up to 7,307 CFM, and the included handheld remote plus Wi-Fi fanSync app control make it easy to adjust from anywhere. Damp-rated for covered outdoor use, it's built to handle humidity without direct rain exposure.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Living rooms and great rooms up to 20 x 20 feet, with powerful airflow
- Bedrooms with standard 8-9 foot ceilings, using the included downrods
- Smart-home setups, with control via the fanSync app or voice assistant
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms where you need a light kit included—this version is fan-only (light kit sold separately)
How bright is it?
This fan does not include a light kit, so brightness depends on the optional 18-watt LED module you add. When installed, it delivers 1600 lumens—comparable to a 100-watt incandescent bulb—with five color temperatures from warm 2700K to daylight 5000K.
Light color and feel
If you add the optional light kit, you can choose from 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. The 90 CRI rating means colors appear accurate and vibrant. The light is dimmable via the remote or app.
Sizing and fit

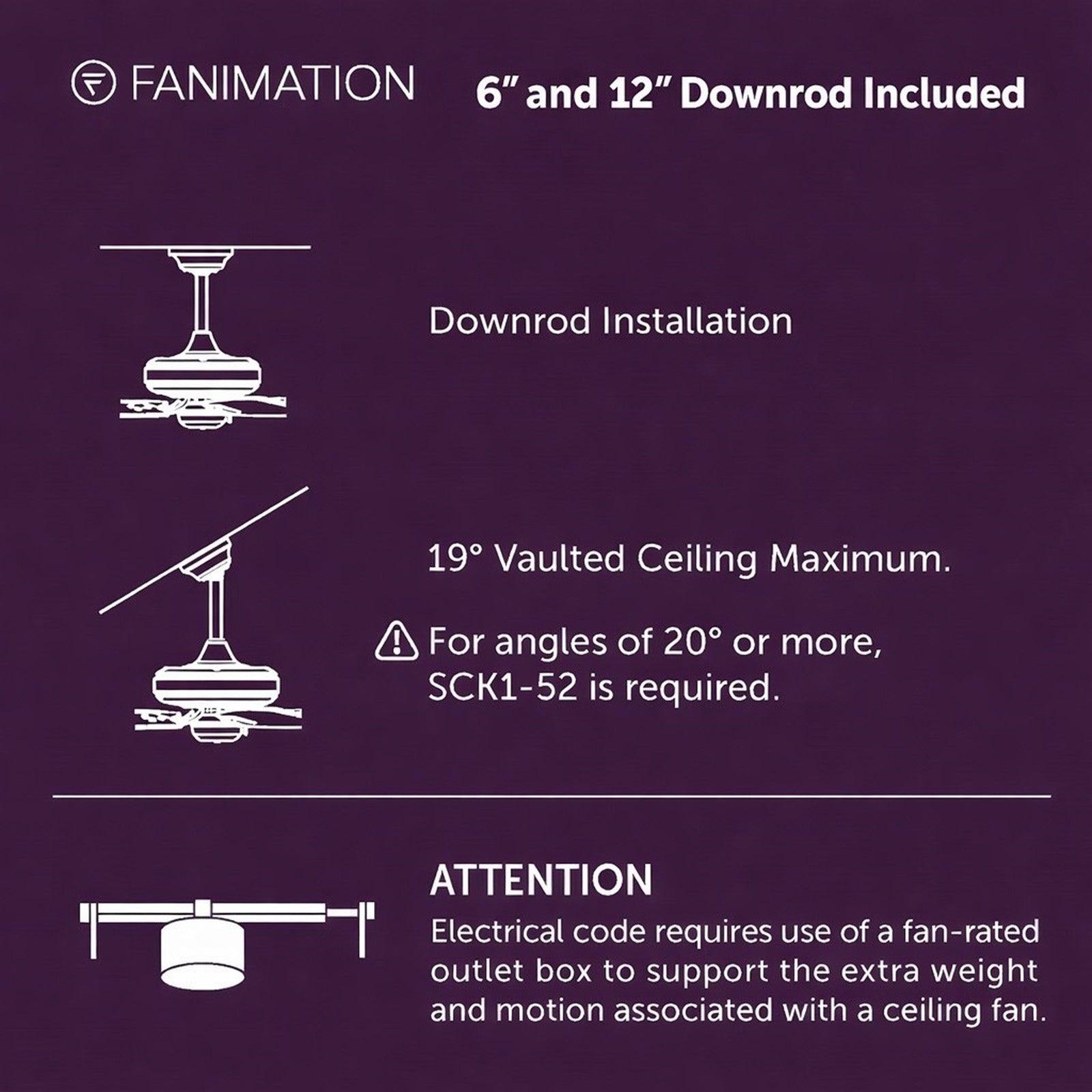

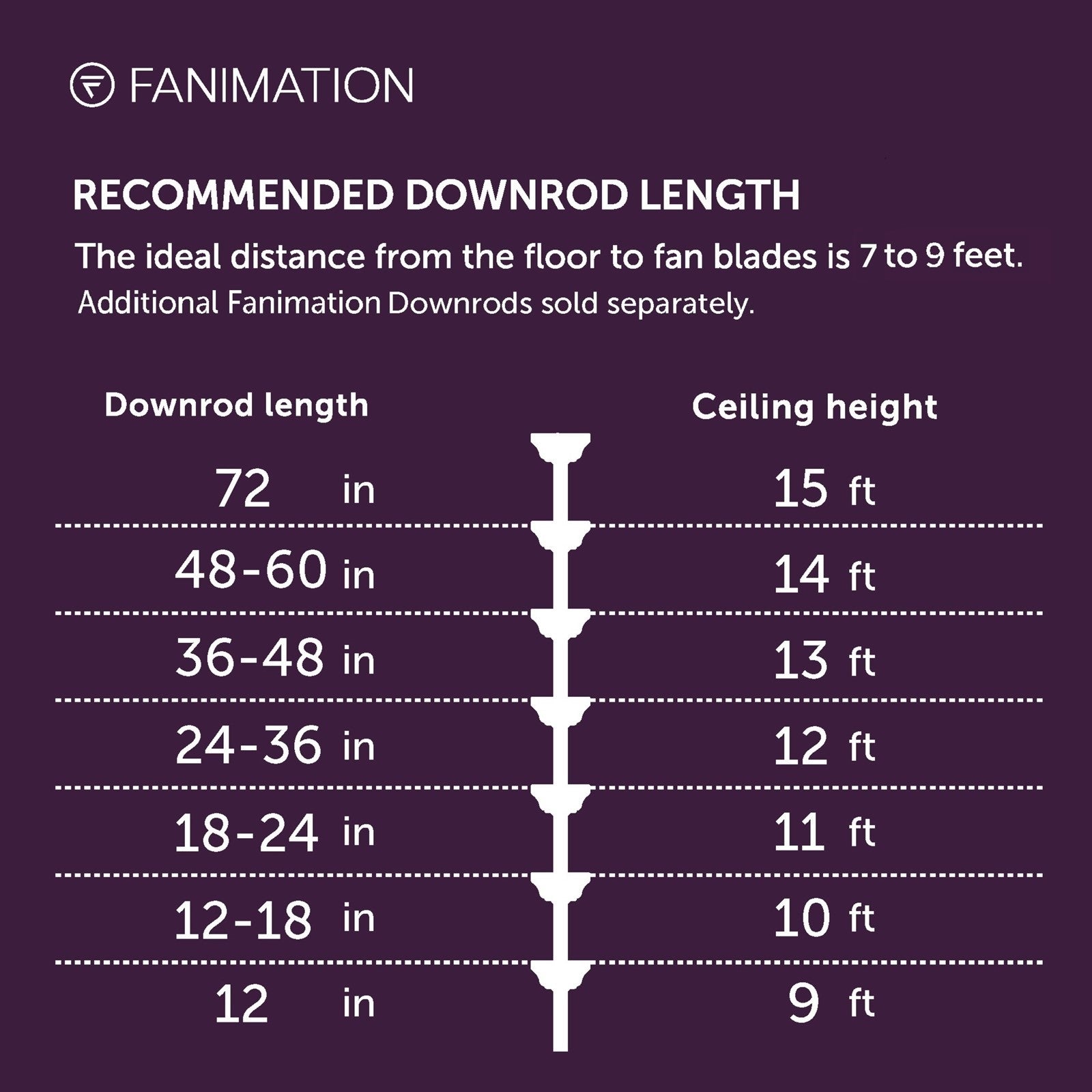

This fan measures 54 inches in diameter and hangs 19.69 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings. It fits spaces at least 12 x 12 feet for optimal airflow.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Koa
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 54"(L)54"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 17.93 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The optional 18-watt LED module is sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the included remote. If you add the optional light kit, it is dimmable via the remote or app.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees.
