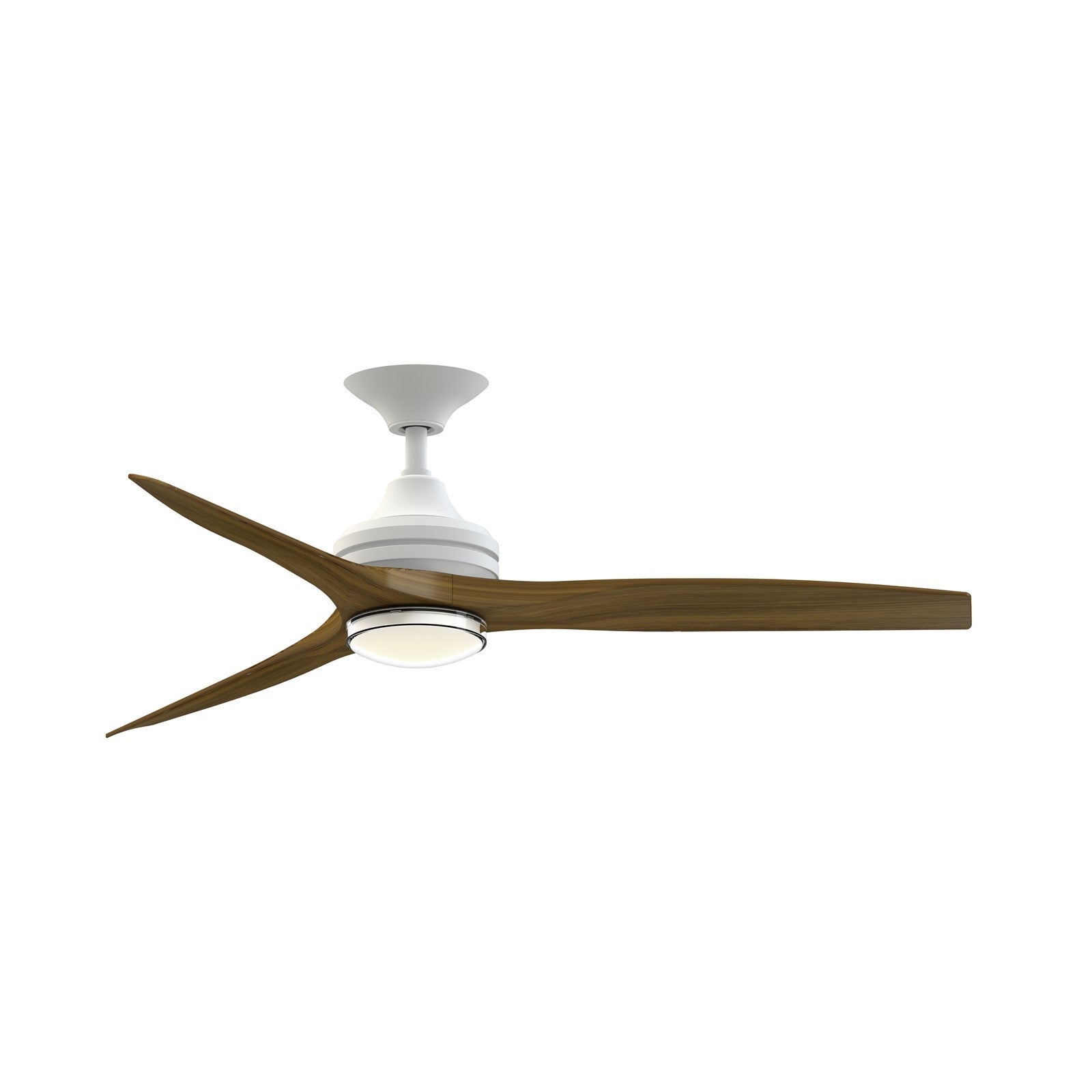

A 54-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, designed for covered patios, porches, and large living spaces.
The Spitfire DC Custom pairs a sleek Matte White motor with three Koa blades, delivering powerful yet quiet airflow up to 7,307 CFM from its 6-speed DC motor. The integrated 24-watt LED light kit features CCT Select technology, letting you choose from five color temperatures—2700K to 5000K—to shift from warm ambiance to bright daylight. The double-walled glass shade is marine-grade, making it suitable for outdoor wet locations. Control everything with the included TR360 handheld remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches, where the damp-rated construction withstands humidity and moisture
- Large living rooms and great rooms up to 20x20 ft, providing strong airflow and customizable lighting
- Sunrooms and enclosed porches that need both air movement and flexible light color
- Outdoor areas with exposure to moisture, thanks to the marine-grade double-walled glass shade
- Spaces with 8-9 ft ceilings, using the included 6-inch or 12-inch downrod
Not ideal for
- Areas directly exposed to rain or water—this fan is damp-rated, not wet-rated, despite the marine-grade shade
- Rooms with ceilings steeper than 20° slope without an angled ceiling adapter
- Small spaces under 10x10 ft where a 54-inch sweep may feel oversized
How bright is it?
The integrated LED module produces 2000 lumens—comparable to a 150W incandescent bulb—making it suitable for ambient lighting in medium to large rooms. It is dimmable, so you can adjust brightness to suit the mood.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). This flexibility lets you match the light to the time of day or activity. The high CRI of 90 ensures colors appear vibrant and accurate.
Sizing and fit
This fan has a 54-inch blade sweep and overall dimensions of 54 x 54 x 16 inches (with light kit). It includes both 6-inch and 12-inch downrods, allowing installation on flat or sloped ceilings up to 20°. For optimal airflow, mount the fan so the blades are 7-9 feet above the floor.
Specifications
- Primary Finish: Matte White
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced separately.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water. The marine-grade shade adds extra durability.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I control this fan with voice assistants? Yes, the fanSync technology works with compatible smart devices and voice assistants like Amazon Alexa and Google Assistant.
