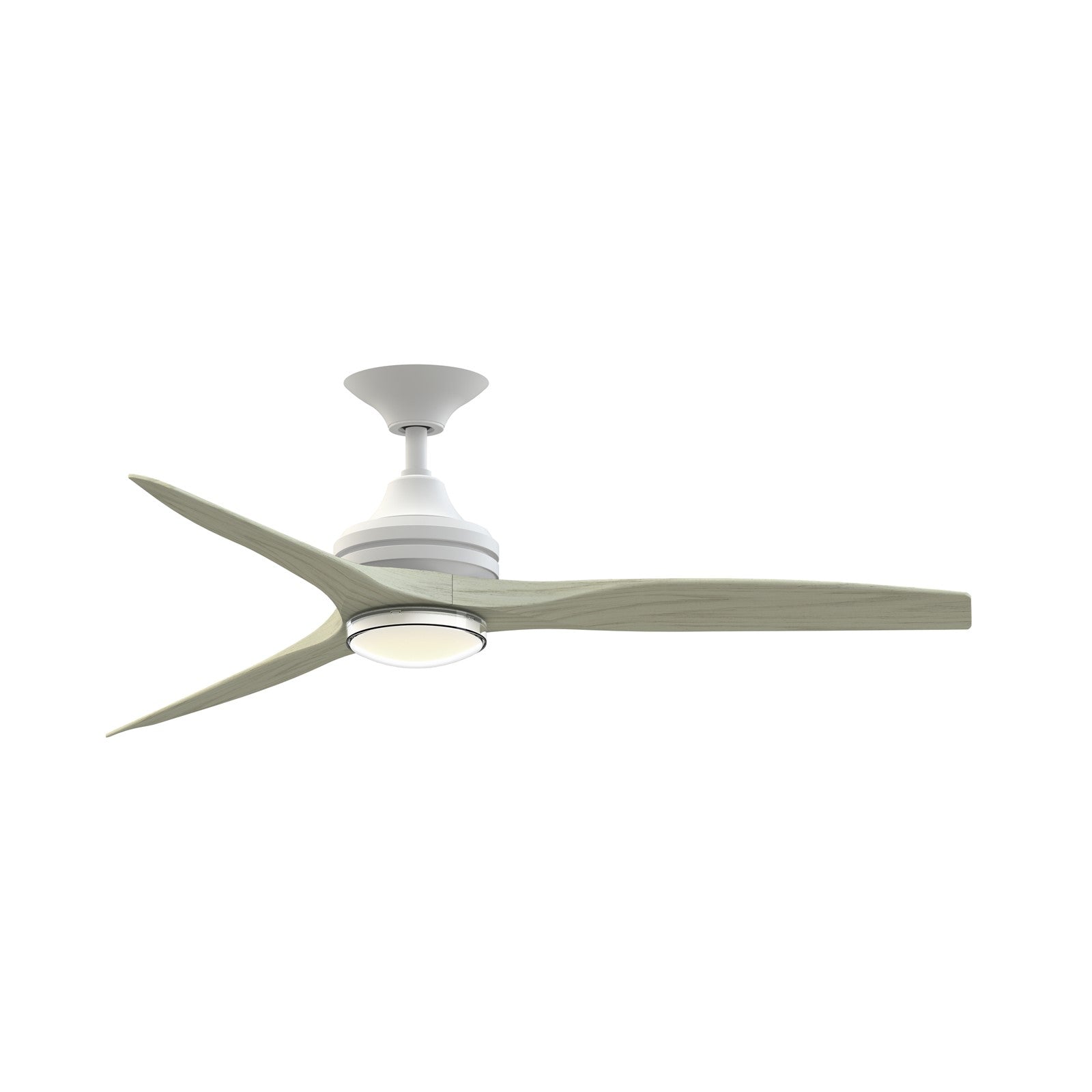

A 54-inch indoor/outdoor smart ceiling fan from Fanimation's Spitfire collection, finished in matte white with light oak blades and an integrated LED light kit with CCT Select technology.
The Spitfire DC Custom pairs a sleek matte white motor with three light oak buttonwood blades, creating a clean, modern look that suits contemporary and transitional homes. Its 6-speed DC motor delivers powerful yet quiet airflow up to 7,307 CFM, while the included TR360 remote and Wi-Fi fanSync technology put full control at your fingertips. This version includes a double-walled marine-grade LED light kit with five selectable color temperatures, making it suitable for outdoor wet locations.
Best for
- Covered patios and porches where damp-rated fixtures are required
- Sunrooms and three-season rooms needing efficient air circulation
- Large living rooms and great rooms (up to 400 sq ft) with standard or slightly sloped ceilings
- Bedrooms and home offices where quiet operation is a priority
- Bathrooms and laundry rooms with high humidity (damp-rated)
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings steeper than 20 degrees without an angled ceiling adapter
- Small spaces under 8 ft ceilings if you need the fan close to the floor - use the included 6-inch downrod
How bright is it?
This fan includes an integrated 24-watt LED light kit that outputs 2,000 lumens - roughly equivalent to a 150W incandescent bulb - providing ample ambient light for medium to large rooms.
Light color and feel
The CCT Select technology lets you choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the light to your activity and mood, from cozy evenings to bright task lighting. The kit also offers infinite dimming via the remote, and with a CRI of 90, colors appear vibrant and true.
Sizing and fit
With a 54-inch blade sweep and overall dimensions of 54 x 54 x 22 inches (with light kit), this fan suits medium to large rooms. It includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches for higher ceilings. The recommended hanging height is 7 to 9 feet from the floor to the blades.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 54"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 4157
- CFM High: 7307
- Avg Energy Use: 18W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and the module is built-in.
Is it dimmable, and what dimmer should I use? The fan is not dimmable, but the LED light kit offers infinite dimming via the included remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, the fanSync technology allows control via compatible smart devices and voice assistants like Amazon Alexa and Google Assistant.
