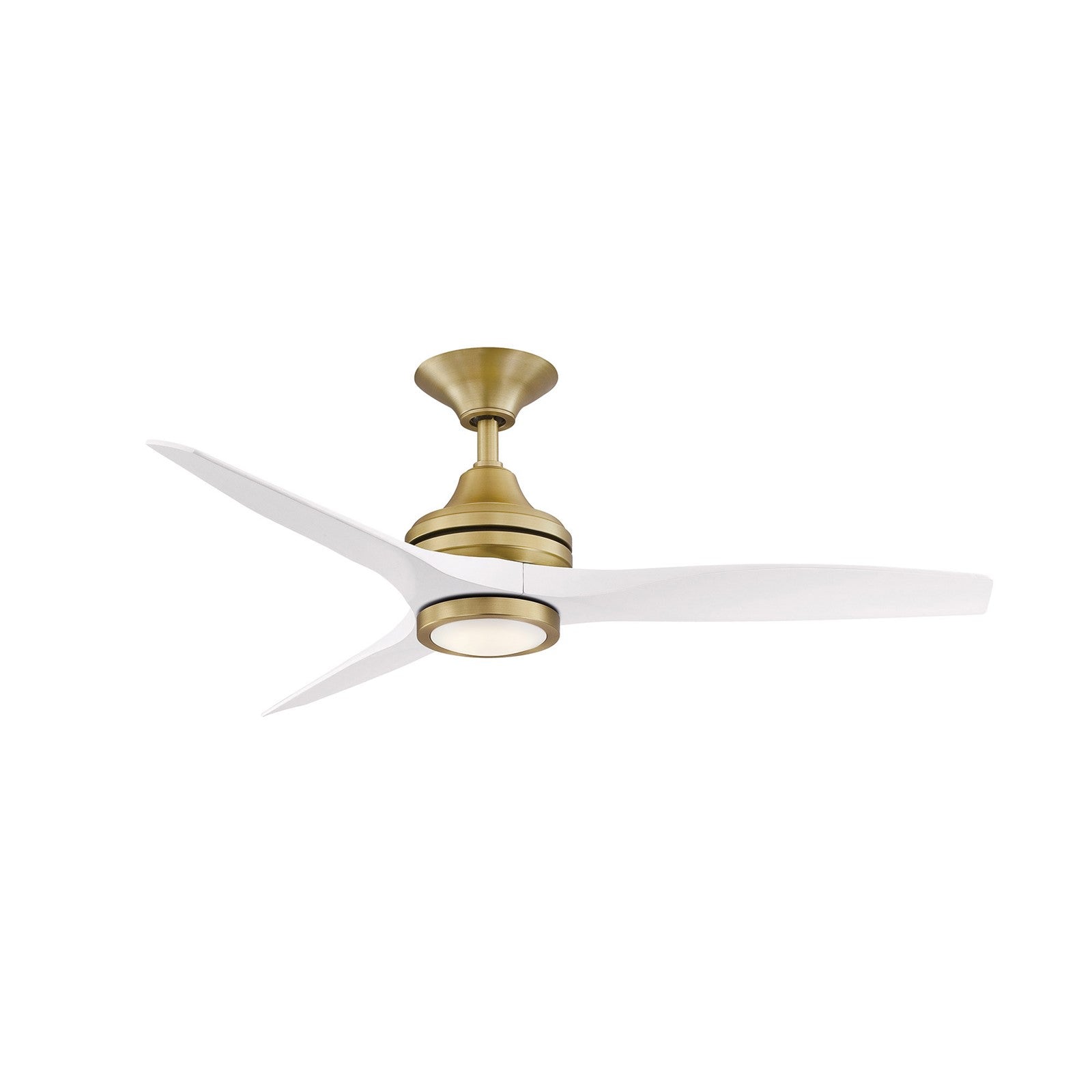

A 48-inch damp-rated ceiling fan with integrated LED light kit from Fanimation's Spitfire collection, finished in brushed satin brass with matte white blades, for covered patios, sunrooms, and large indoor living spaces.
The Spitfire with LED light kit combines the sleek three-blade design with a built-in 18-watt dimmable LED module, offering both air movement and warm illumination in one fixture. The brushed satin brass motor housing and matte white buttonwood blades create a clean, contemporary look, while the included fresnel and frosted shades let you customize the light diffusion. Damp-rated for covered outdoor and humid spaces, this fan is as versatile as it is stylish. The included TR500 remote controls fan speed and light levels, and the fan is compatible with Fanimation's Wi-Fi fanSync for smart home integration (controls sold separately).
Best for
- Covered patios and porches where the fan is protected from direct rain and water
- Sunrooms and three-season rooms that need both air movement and ambient light
- Large living rooms and family rooms up to 400 sq ft, mounted on flat or sloped ceilings up to 19°
- Bathrooms and laundry rooms with high ceilings, where the damp rating allows safe use
- Bedrooms and home offices seeking a combined fan and light solution with remote control
Not ideal for
- Outdoor areas exposed directly to rain or water spray - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft unless you use the included 4.5-inch downrod or a shorter optional downrod
- Small spaces under 100 sq ft where a 48-inch sweep may feel overpowering
How bright is it?
The integrated 18-watt LED module delivers 1500 lumens - roughly equivalent to a 100W incandescent bulb - providing ample ambient light for most rooms. It is dimmable for adjustable brightness.
Light color and feel
The 3000K warm white light creates a soft, golden glow similar to traditional incandescent bulbs. With a CRI of 90, colors appear vivid and natural, making it suitable for living areas and kitchens. The included fresnel and frosted shades offer two light diffusion options.
Sizing and fit

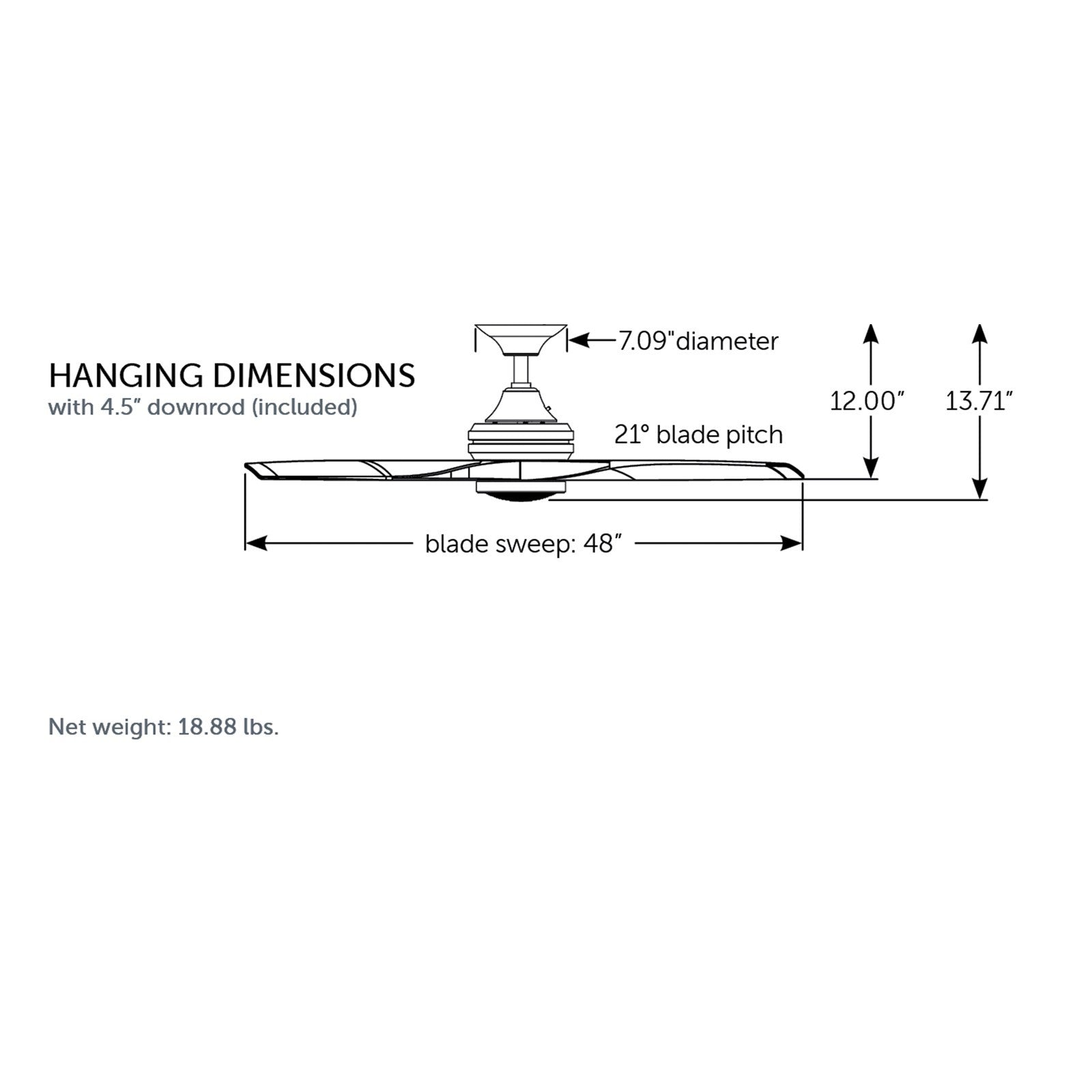

With a 48-inch blade sweep and an overall height of 13.71 inches (from ceiling to bottom with the light kit), this fan suits rooms with standard 8-9 ft ceilings. The included 4.5-inch downrod keeps it close to the ceiling, while optional downrods up to 72 inches allow for higher or sloped ceilings. The canopy is 7.09 inches in diameter, and the housing is 8.07 inches wide.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3435
- CFM High: 5176
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 48"(L) x 48"(W) x 13.71"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.09"(Dia) x 2.2"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12"
- Ceiling to Bottom (With Light Kit): 13.71"
- Item Weight: 21.26 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and does not require replacement.
Is it dimmable, and what dimmer should I use? Yes, the LED light kit is dimmable. Use a standard LED-compatible dimmer or the included TR500 remote for light control.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor for long-term performance.
Can I use this fan without the light kit? No, the light kit is integrated and cannot be removed. If you prefer a fan without a light, consider the standard Spitfire model.
