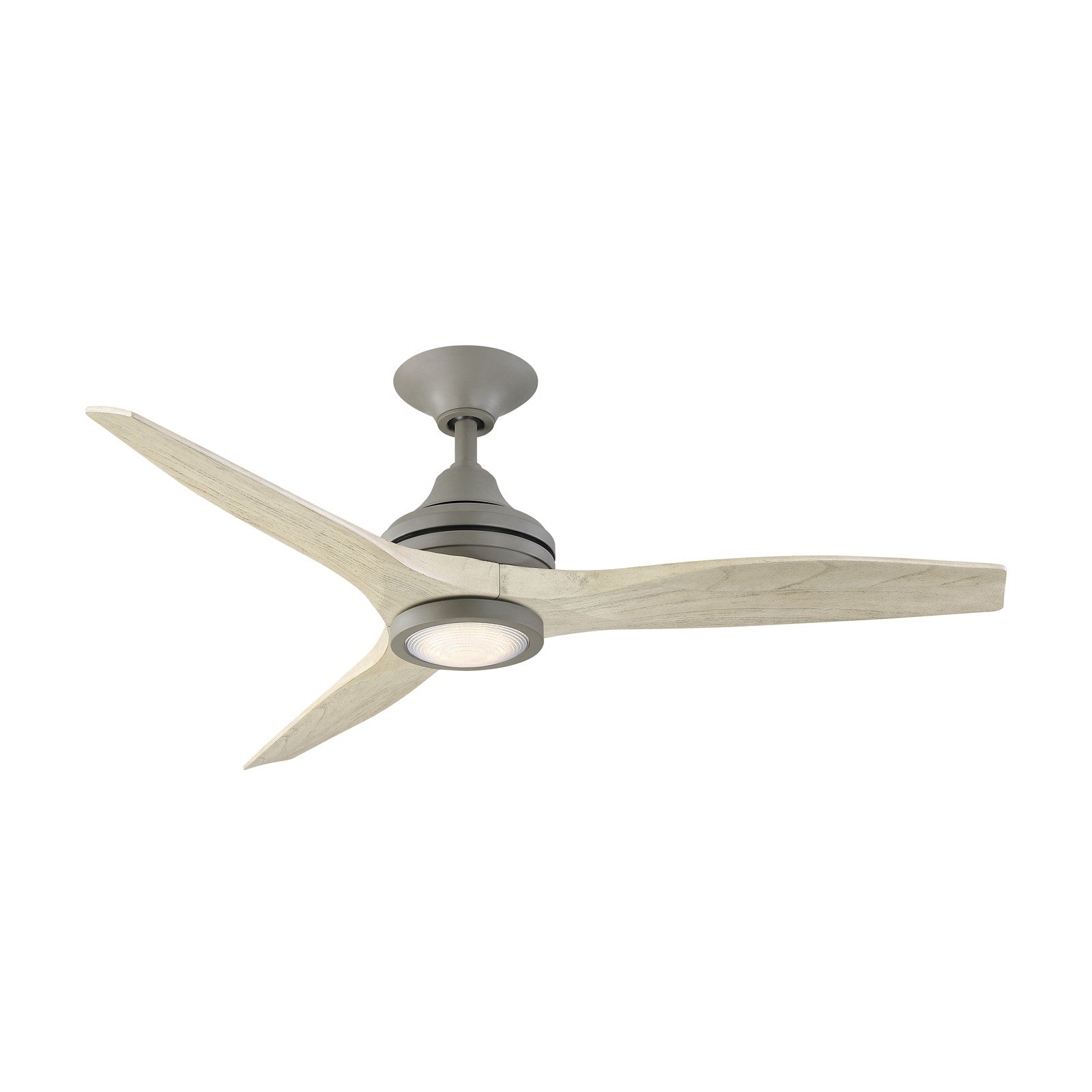

A 48-inch damp-rated ceiling fan with integrated LED light kit from Fanimation's Spitfire collection, finished in antique graphite with light oak buttonwood blades, for covered patios, sunrooms, and large indoor living spaces.

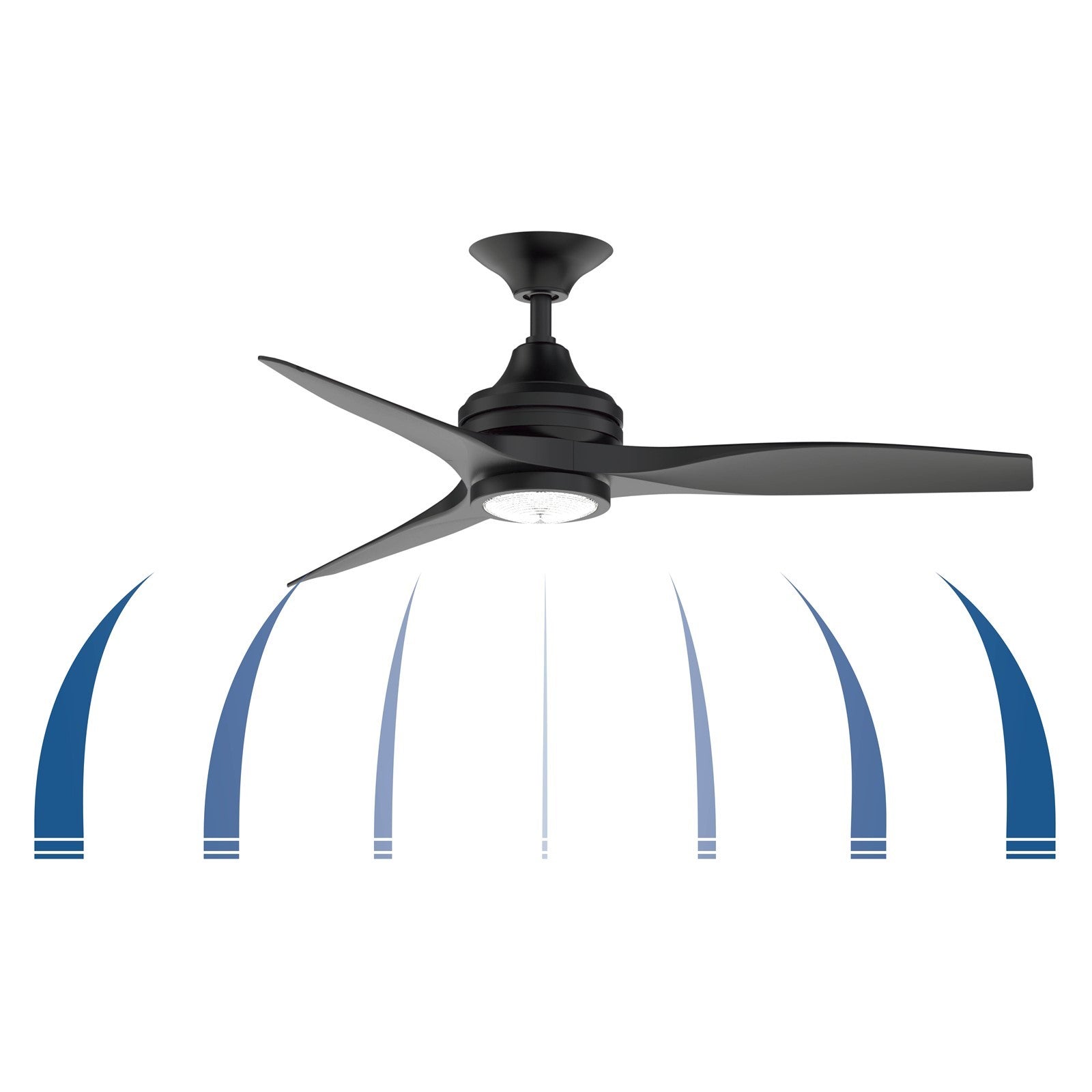

The Spitfire with LED light kit pairs a sleek three-blade silhouette with a sophisticated antique graphite motor housing and light oak buttonwood blades. The integrated 18-watt dimmable LED module delivers 1,500 lumens of warm white light, and the reversible AC motor provides up to 5,176 CFM of airflow. The included TR500 handheld remote controls both fan speeds and light levels. Damp-rated, it brings modern style and reliable comfort to any room.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Great rooms and open-plan living areas up to 18 x 20 ft, mounted on flat or sloped ceilings up to 19°
- Bedrooms and home offices needing a combination of air movement and ambient lighting
- Indoor spaces with 8-9 ft ceilings when installed with the included 4.5-inch downrod
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft unless using a close-to-ceiling mount (sold separately)
- Small spaces under 8 x 10 ft where a 48-inch sweep may feel overpowering
How bright is it?
The integrated LED light kit provides 1,500 lumens - roughly equivalent to a 100W incandescent bulb - suitable for ambient lighting in medium to large rooms. It is dimmable for adjustable brightness.
Light color and feel
The LED module delivers 3000K warm white light - a soft, golden tone similar to traditional incandescent bulbs. With a CRI of 90, colors appear vivid and natural, ideal for living spaces and covered outdoor areas.
Sizing and fit

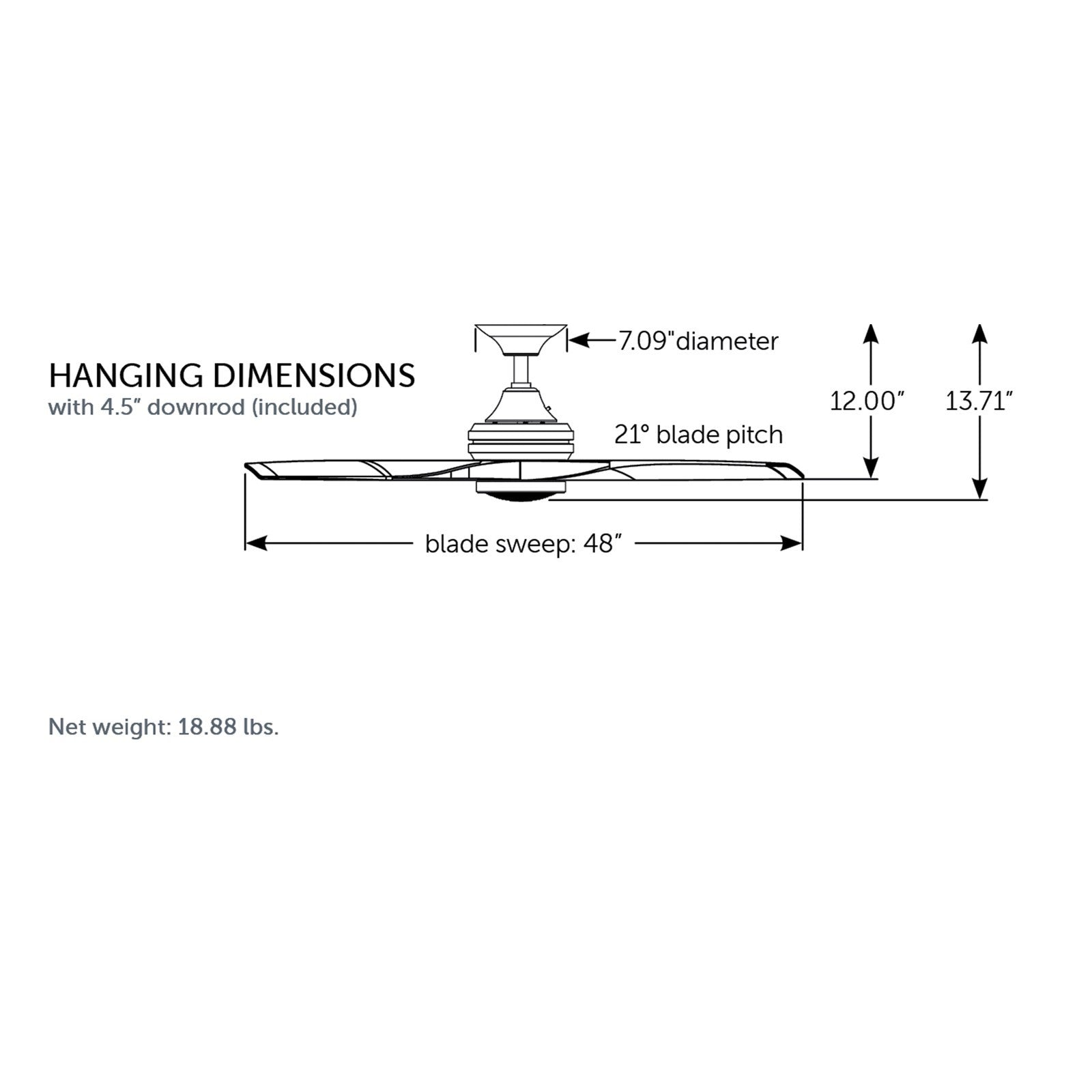

This 48-inch fan has an overall footprint of 48 x 48 x 13.71 inches and weighs 21.26 lbs. It includes a 4.5-inch downrod; optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height. The canopy is 7.09 inches in diameter, and the lead wire is 80 inches long.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3435
- CFM High: 5176
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED light kit is integrated and included with this fan.
Is it dimmable, and what dimmer should I use? Yes, the LED light kit is dimmable and can be controlled with the included TR500 remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered patios, porches, sunrooms, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, the fan is designed for flat or slightly sloped ceilings up to 19°.
