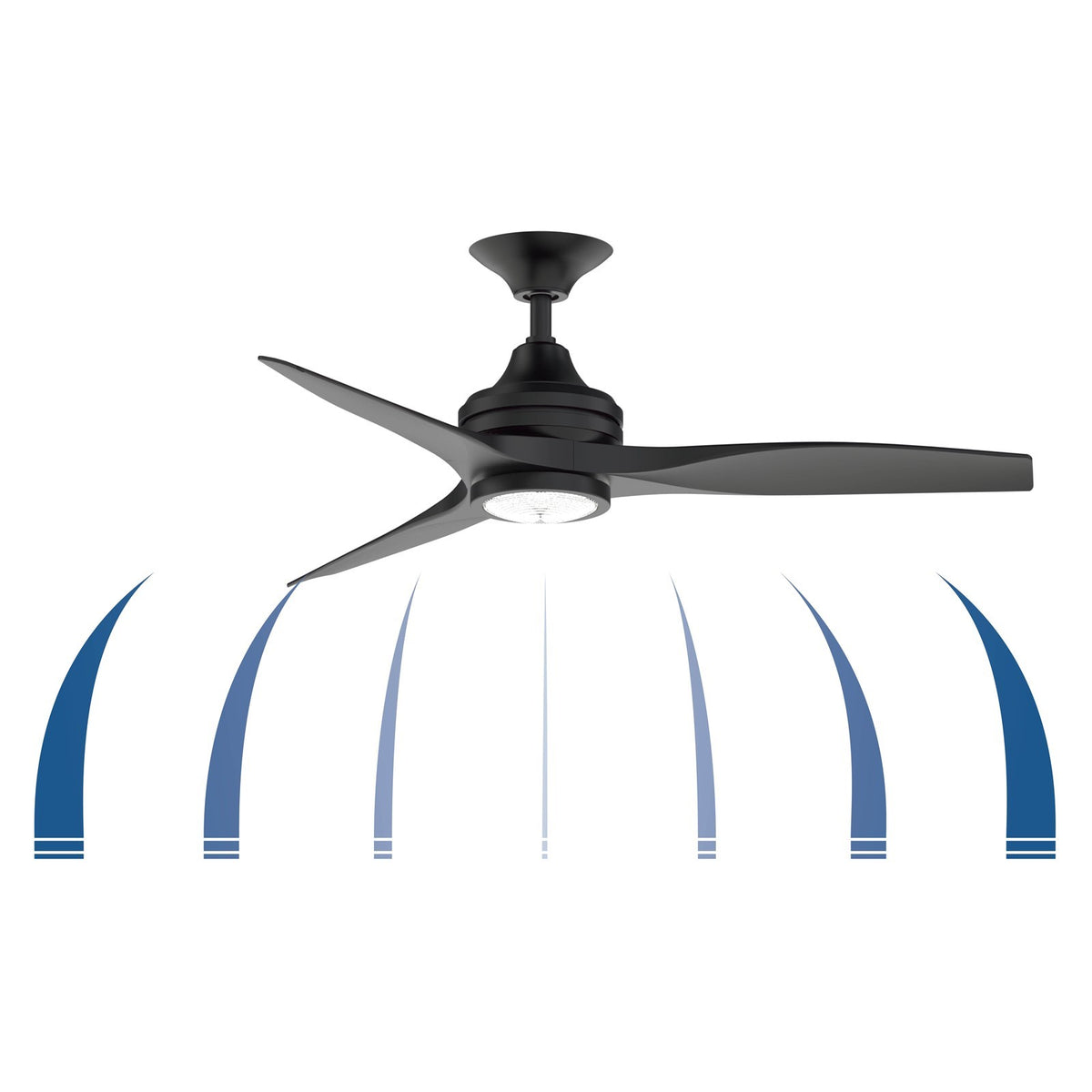

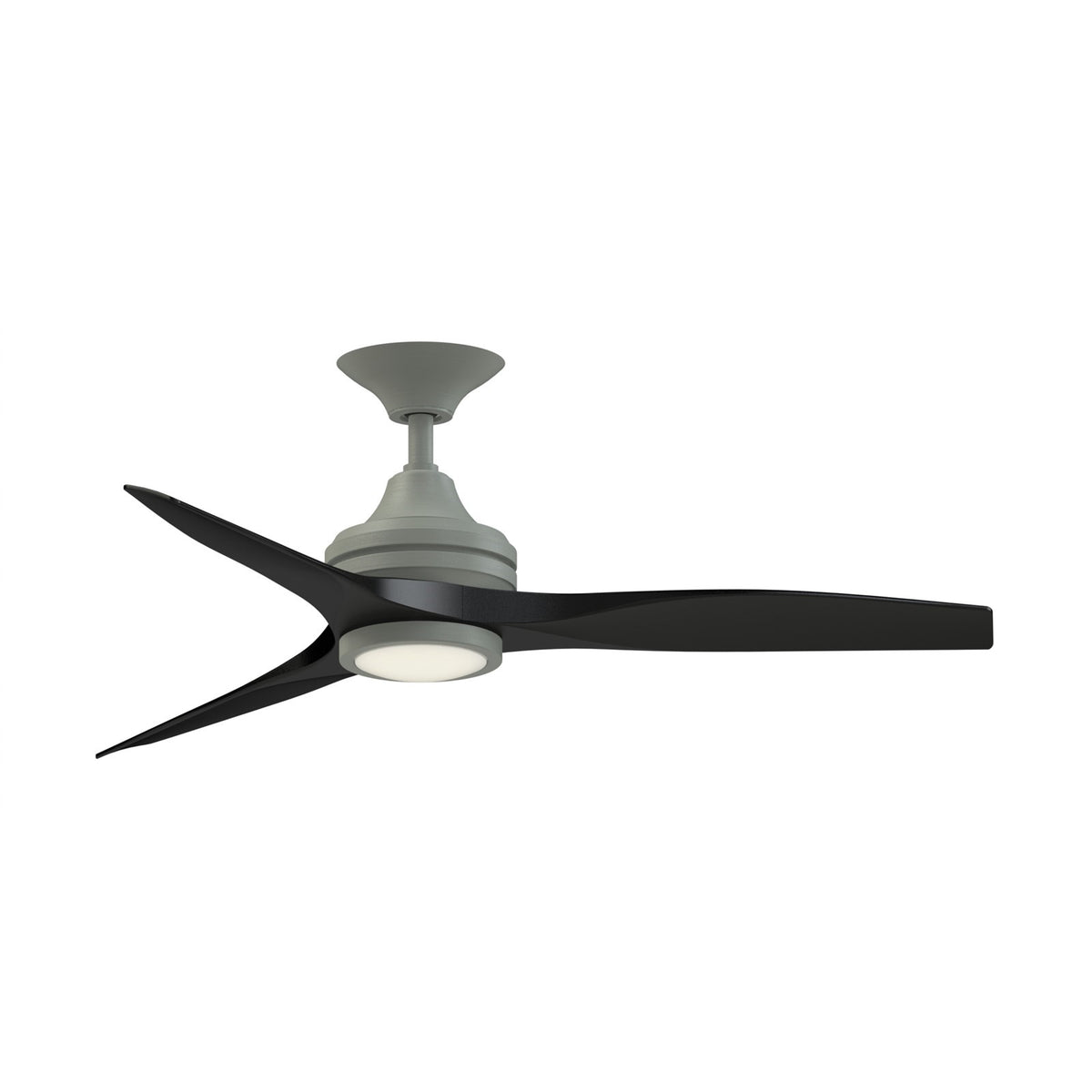

A 48-inch damp-rated ceiling fan with integrated LED light kit from Fanimation's Spitfire collection, finished in antique graphite with three black buttonwood blades, for covered outdoor spaces and large indoor rooms.
The Spitfire with LED Light Kit combines a sleek three-blade design with a built-in 18-watt dimmable LED module, offering both airflow and illumination in one fixture. The antique graphite finish and black buttonwood blades create a modern, architectural look, while the included fresnel and frosted shades let you customize the light's appearance. Its reversible AC motor delivers airflow up to 5,176 CFM, and the TR500 remote controls both fan and light. Damp-rated, it's ideal for patios, sunrooms, and bathrooms.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Sunrooms and three-season rooms needing year-round air movement and ambient light
- Large bedrooms, living rooms, and family rooms up to 18 x 20 ft, with 8-9 ft ceilings
- Bathrooms and laundry rooms with high moisture levels
- Smart home setups, as it's compatible with Fanimation fanSync and most smart devices (control sold separately)
Not ideal for
- Uncovered outdoor areas directly exposed to rain or water
- Rooms with ceilings steeper than 19° slope without an angled-mount adapter
- Low ceilings under 8 ft if you prefer a flush mount (consider the flush-mount version)
How bright is it?
The integrated 18-watt LED module delivers 1,500 lumens—comparable to a 100W incandescent bulb—suitable for ambient lighting in medium to large rooms. It's dimmable via the included remote.
Light color and feel
The LED emits 3000K warm white light—a soft, golden tone similar to traditional incandescent bulbs. With a CRI of 90, it renders colors accurately, making it a good choice for living spaces and kitchens. The included fresnel and frosted shades let you choose between a more focused or diffused light.
Sizing and fit

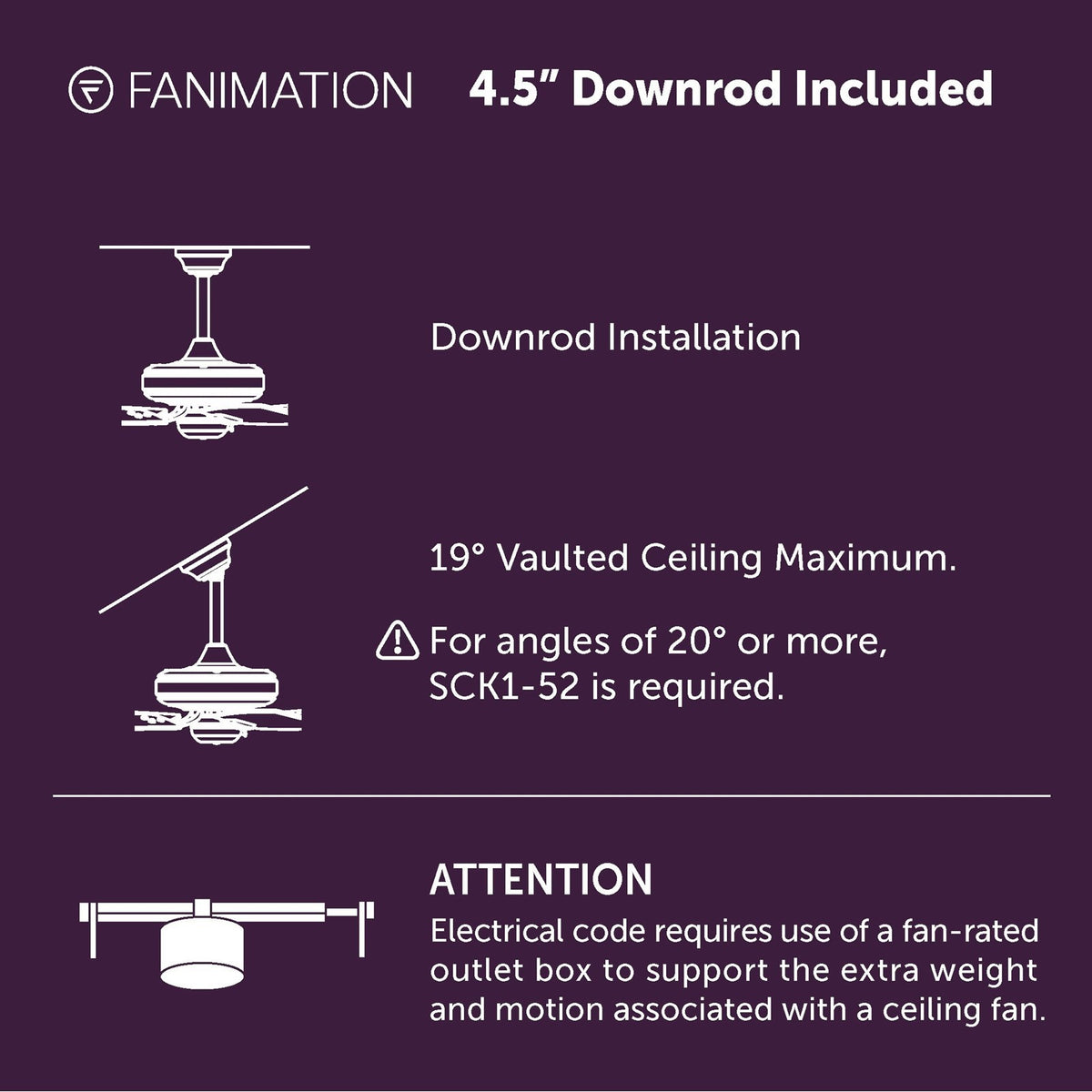

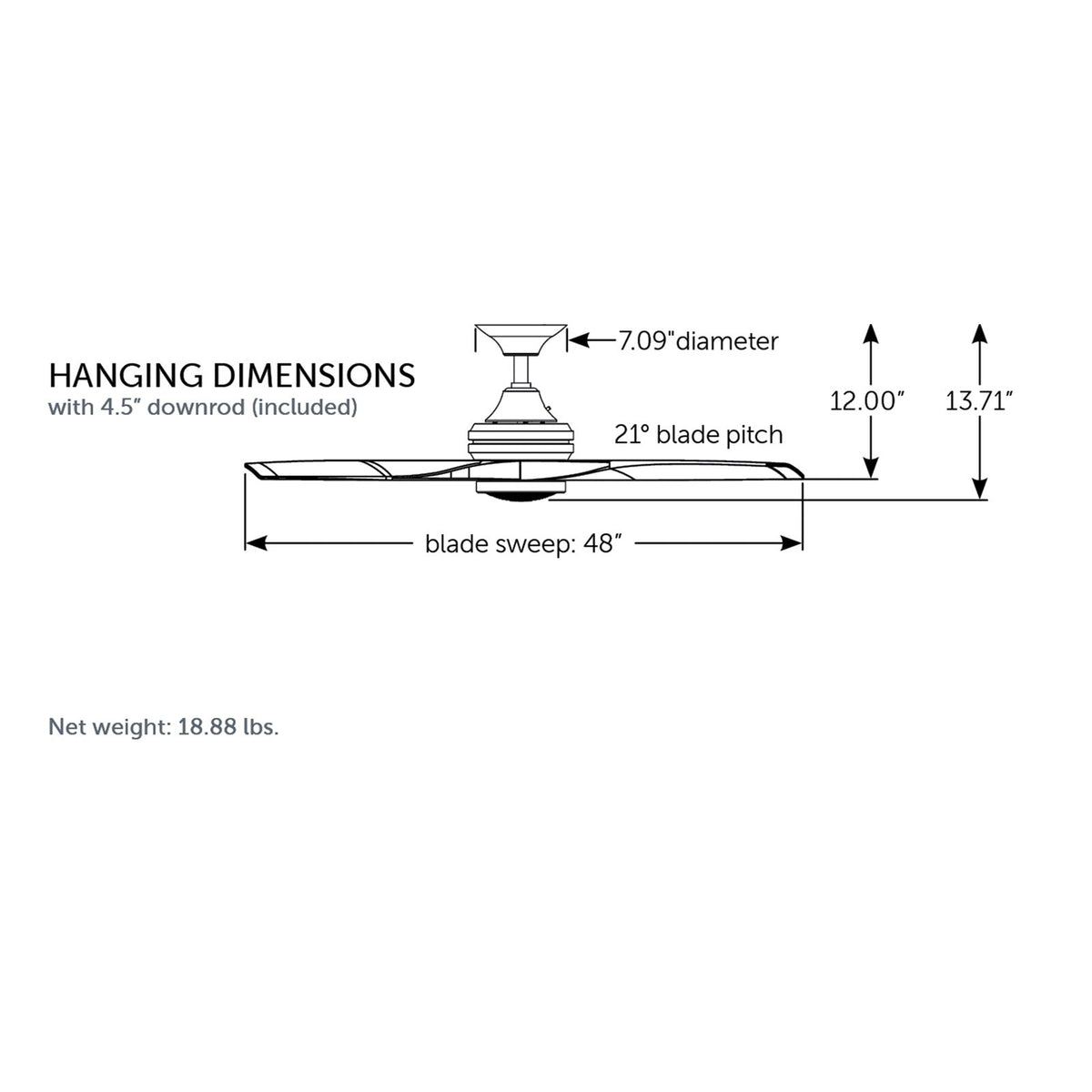

With a 48-inch blade sweep and 13.71-inch overall height (with light kit), this fan suits medium to large rooms. It comes with a 4.5-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings (up to 19°).
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3435
- CFM High: 5176
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 48"(L) x 48"(W) x 13.71"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.09"(Dia) x 2.2"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12"
- Ceiling to Bottom (With Light Kit): 13.71"
- Item Weight: 21.26 lbs.
Frequently asked
Is the light kit included? Yes, the LED light kit is included with this model.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable via the included TR500 remote.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated, making it suitable for bathrooms and covered outdoor areas like patios and porches. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I change the shade? Yes, the fan includes both fresnel and frosted shades, allowing you to switch between a more focused or diffused light.
