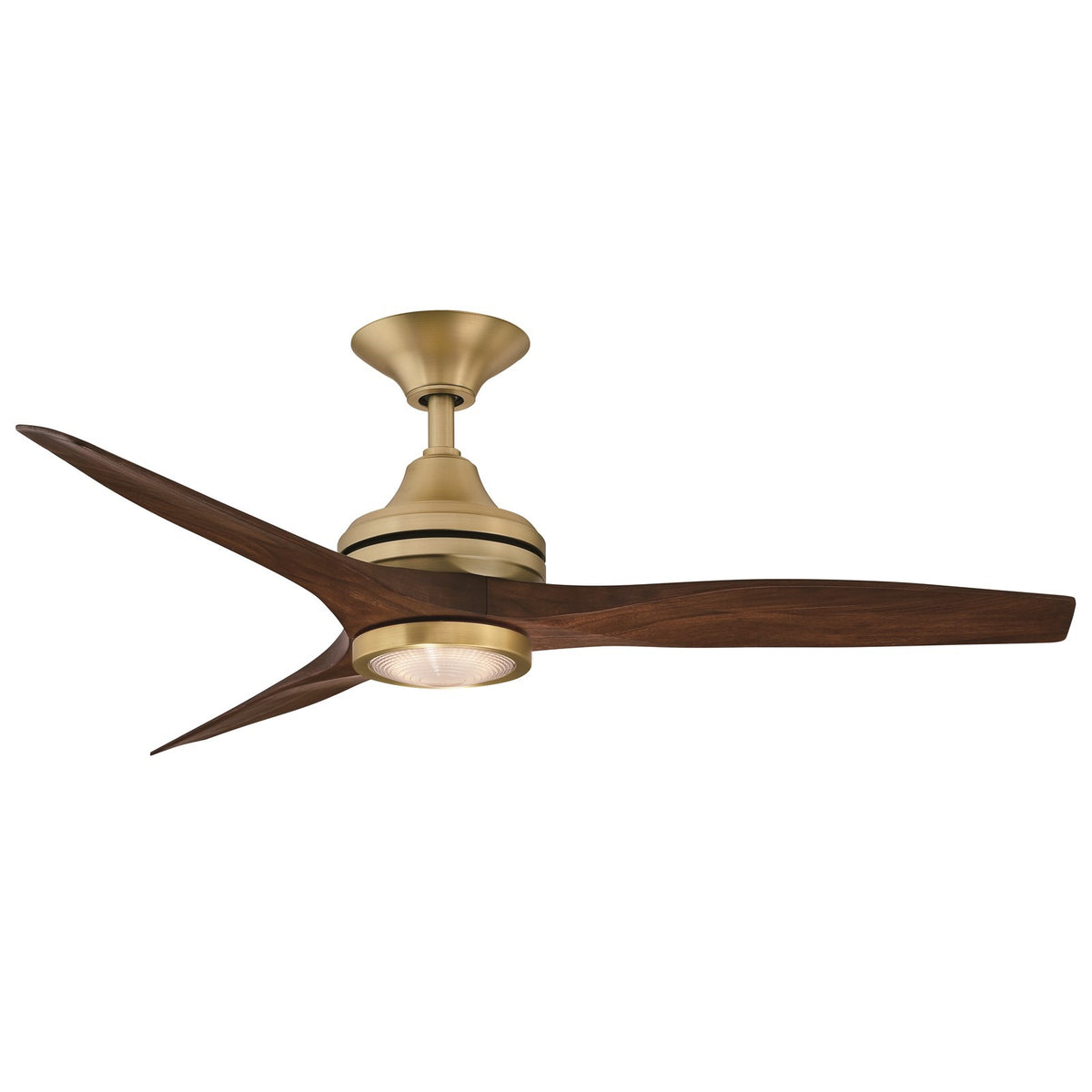

A 48-inch damp-rated ceiling fan with an integrated LED light kit, finished in brushed satin brass with whiskey wood blades, ideal for covered outdoor spaces and large living areas.
The Spitfire with LED light kit combines the sleek three-blade design with the convenience of built-in illumination. The brushed satin brass motor housing and warm whiskey wood blades create a modern, sophisticated look, while the integrated 18-watt LED module provides 1,500 lumens of warm, dimmable light. With a powerful AC motor delivering up to 5,176 CFM, it moves air efficiently in rooms up to 400 square feet. The included TR500 remote controls both fan speed and light levels, and the reversible motor ensures year-round comfort.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity without direct rain exposure
- Sunrooms and three-season rooms that need both airflow and ambient light
- Large living rooms and great rooms (up to 400 sq ft) with standard or slightly sloped ceilings
- Bedrooms and home offices where a single fixture provides both cooling and warm illumination
- Homes with smart assistants - compatible with Fanimation fanSync and most smart home systems (control sold separately)
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 feet unless you use a close-to-ceiling mount (downrod included is 4.5 inches)
- Small spaces under 100 square feet where a 48-inch sweep may feel oversized
How bright is it?
The integrated LED light kit delivers 1,500 lumens - roughly equivalent to a 100-watt incandescent bulb. This is sufficient for ambient lighting in a medium to large room, but not for task lighting like reading or detailed work.
Light color and feel
The LED module emits 3000K warm white light - a soft, golden tone similar to traditional incandescent bulbs. With a CRI of 90, colors appear natural and vibrant, making it a good choice for living areas and bedrooms. The light is dimmable via the included TR500 remote, allowing you to adjust brightness to suit your mood.
Sizing and fit
This 48-inch fan fits rooms from 100 to 400 square feet. The overall dimensions are 48 inches wide by 48 inches deep by 13.71 inches high from ceiling to bottom (with light kit). It includes a 4.5-inch downrod for flat or sloped ceilings (up to 19 degrees), and optional downrods up to 72 inches are available to achieve the recommended 7-9 foot hanging height.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3435
- CFM High: 5176
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 48"(L)48"(W) x 13.71"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.09"(Dia) x 2.2"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12"
- Ceiling to Bottom (With Light Kit): 13.71"
- Item Weight: 21.26 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced. It is rated for 18 watts and 1,500 lumens.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable using the included TR500 remote. No additional dimmer switch is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is safe for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor and providing dependable performance.
Can I use this fan without the light kit? No, the light kit is integrated and cannot be removed. If you prefer a fan without a light, consider the standard Spitfire model.
