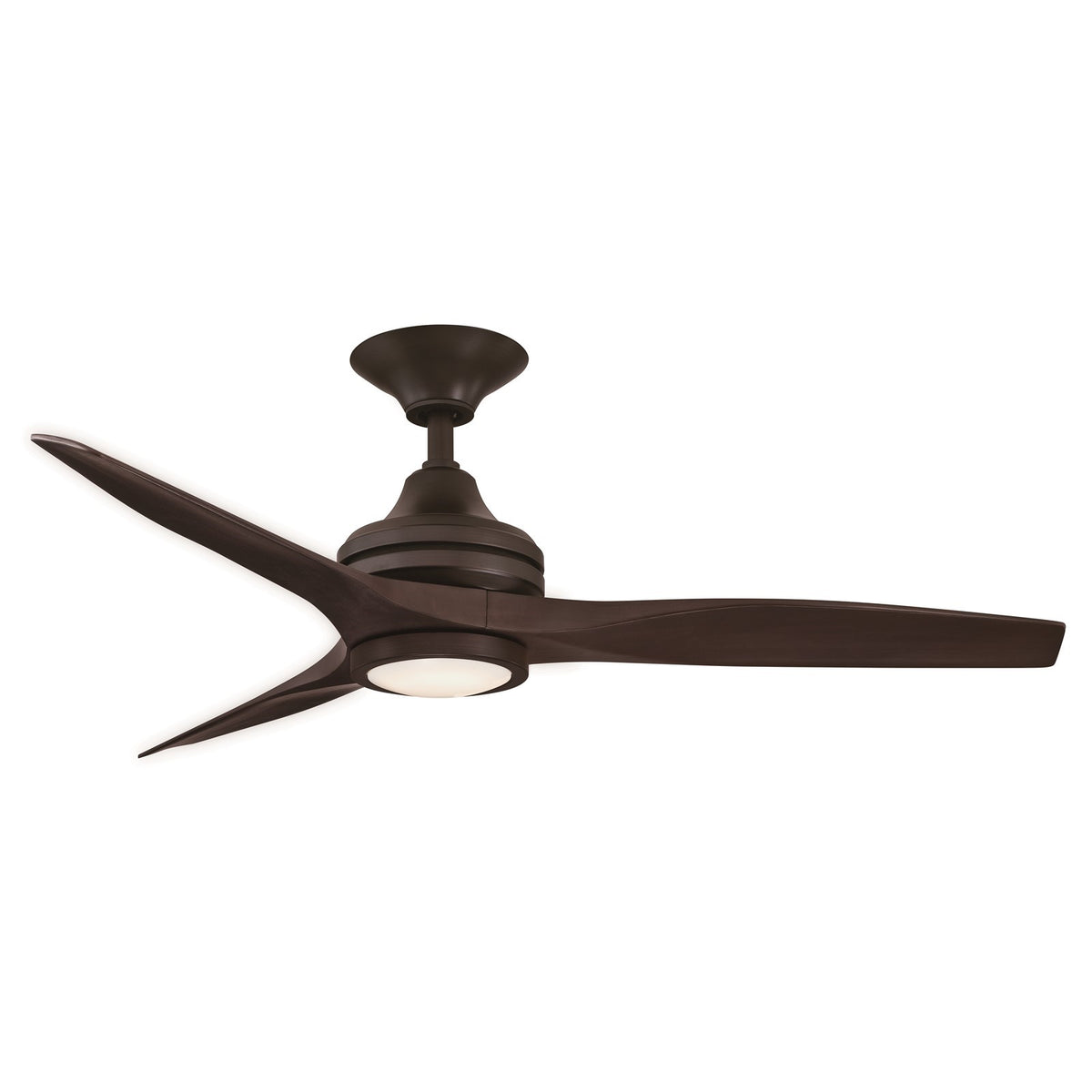

A 48-inch damp-rated ceiling fan with integrated LED light kit from Fanimation's Spitfire collection, finished in dark bronze with dark walnut blades, for covered patios, sunrooms, and large indoor living spaces.
The Spitfire with LED light kit combines a sleek three-blade design with a warm, dimmable 18-watt integrated LED module, offering both airflow and illumination in one fixture. The dark bronze motor housing and dark walnut blades create a modern, industrial aesthetic, while the included TR500 remote provides convenient control of fan speed and light levels. Designed for damp locations, it withstands humidity without direct rain exposure.
Best for
- Covered patios and porches, where damp-rated construction resists humidity
- Sunrooms and three-season rooms needing both air movement and ambient light
- Large bedrooms and living rooms up to 15x15 ft, with 5,176 CFM high-speed airflow
- Bathrooms and laundry rooms with high humidity (damp-rated)
- Homes with sloped ceilings up to 19 degrees, using the included 4.5-inch downrod
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need a long downrod for optimal hanging height
- Small spaces under 100 sq ft where a 48-inch sweep may feel oversized
How bright is it?
The integrated 18-watt LED module delivers 1,500 lumens - roughly equivalent to a 100W incandescent bulb - suitable for ambient lighting in a medium to large room. It is dimmable for adjustable brightness.
Light color and feel
The 3000K warm white light creates a soft, golden glow similar to traditional incandescent bulbs, flattering warm wood and bronze finishes. With a CRI of 90, colors appear accurate and vibrant, ideal for living spaces and kitchens. The light is dimmable using the included TR500 remote.
Sizing and fit
This 48-inch fan has an overall height of 13.71 inches from ceiling to bottom (with light kit) and a housing diameter of 8.07 inches. It includes a 4.5-inch downrod; optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height. Designed for flat or sloped ceilings up to 19 degrees.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3435
- CFM High: 5176
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 48"(L)48"(W) x 13.71"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.09"(Dia) x 2.2"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12"
- Ceiling to Bottom (With Light Kit): 13.71"
- Item Weight: 21.26 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and is not replaceable.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable and can be controlled with the included TR500 remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with smart home devices? Yes, it is compatible with Fanimation Wi-Fi fanSync and most smart home devices, but the required controls are sold separately.
