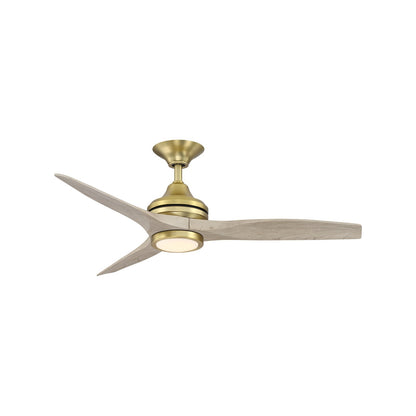

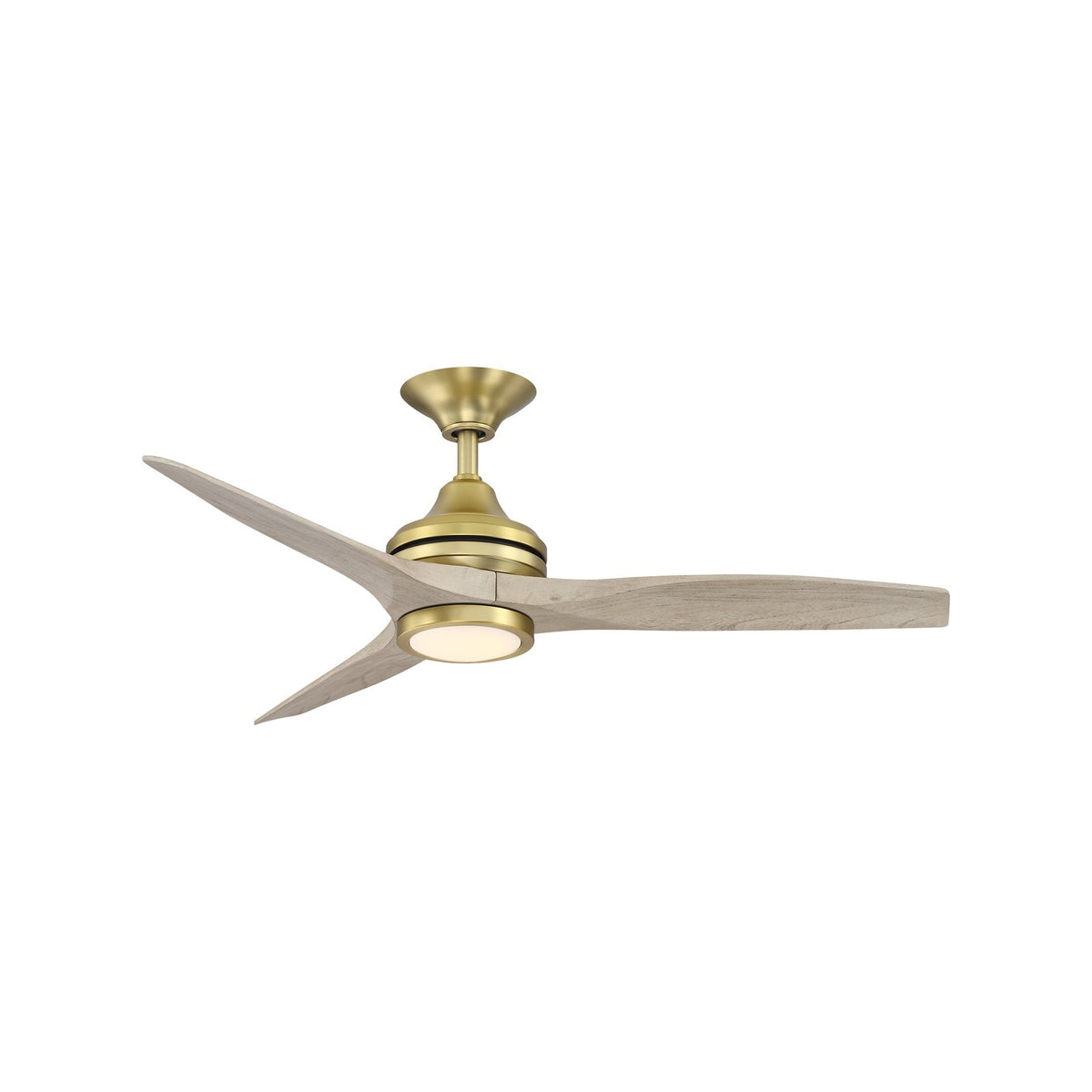

A 48-inch damp-rated ceiling fan with integrated LED light kit from Fanimation's Spitfire collection, finished in brushed satin brass with light oak blades, for covered patios, sunrooms, and large indoor spaces.
The Spitfire with LED light kit combines the sleek three-blade design with a built-in 18-watt dimmable LED module, providing both airflow and illumination in one stylish package. The brushed satin brass motor housing and light oak buttonwood blades create a warm, modern look, while the included fresnel and frosted shades offer versatile lighting options. With a powerful AC motor delivering up to 5,176 CFM, it keeps large spaces comfortable year-round.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without worry
- Sunrooms and three-season rooms that need both airflow and lighting
- Large living rooms and great rooms (up to 400 sq ft) where a 48-inch sweep provides effective circulation
- Bedrooms and home offices, using the reversible motor and dimmable light to create a comfortable atmosphere
- Bathrooms and laundry rooms, where damp-rated construction is a safe choice
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Rooms with ceilings lower than 8 feet, unless you use a flush mount kit (sold separately)
- Small spaces under 100 sq ft, where a 48-inch fan may feel overpowering
How bright is it?
The integrated LED light kit provides 1500 lumens—about as bright as a 100W incandescent bulb, ideal for ambient lighting in a medium to large room. It is dimmable for adjustable brightness.
Light color and feel
The LED module emits 3000K warm white light—a soft, golden tone similar to traditional incandescent bulbs, flattering to skin tones and warm wood finishes. With a CRI of 90, it renders colors accurately, ideal for living spaces and kitchens.

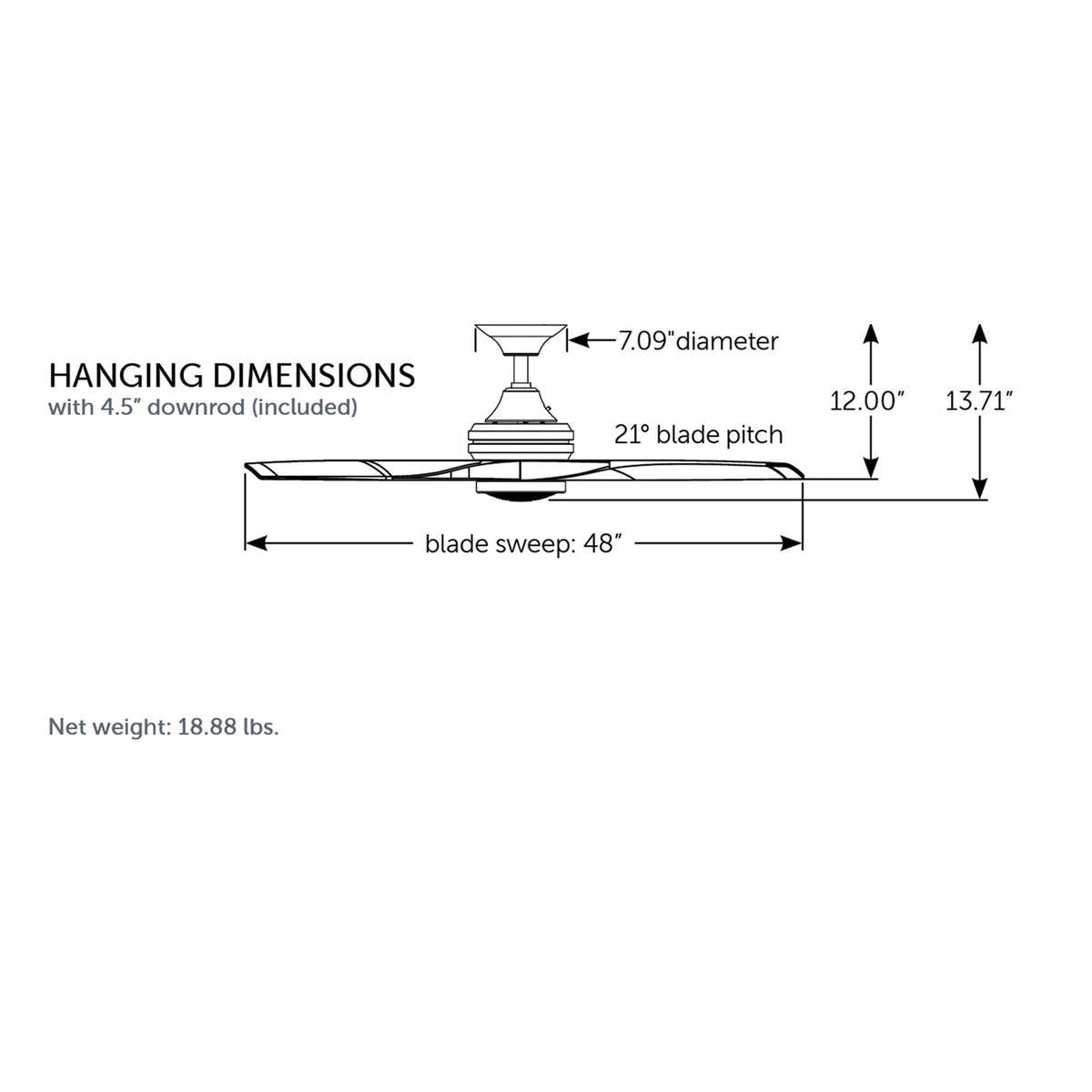

Sizing and fit
This fan measures 48 inches in blade sweep and 13.71 inches from ceiling to bottom (with light kit). It comes with a 4.5-inch downrod and is designed for flat or slightly sloped ceilings (up to 19° slope). Optional downrods up to 72 inches are available to achieve the optimal 7–9 ft hanging height. The canopy is 7.09 inches in diameter, and the housing is 8.07 inches.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 21°
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: True
- Number of Speeds: 3
- Reverse Switch Location: Motor Housing
- Light Kit Included: True
- Cap Included: True
- Included Control: TR500
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000K
- CRI: 90
- Lumens: 1500
- Voltage: 120V
- Avg CFM: 3435
- CFM High: 5176
- Avg Energy Use: 41W
- Max Slope: 19°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED light kit is integrated and included with the fan.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable and comes with the TR500 remote, which controls light levels. No additional dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with smart home devices? Yes, it is compatible with Fanimation Wi-Fi fanSync and most smart home devices, but the required controls are sold separately.
Ships from our warehouse in 1-4 Business Days
