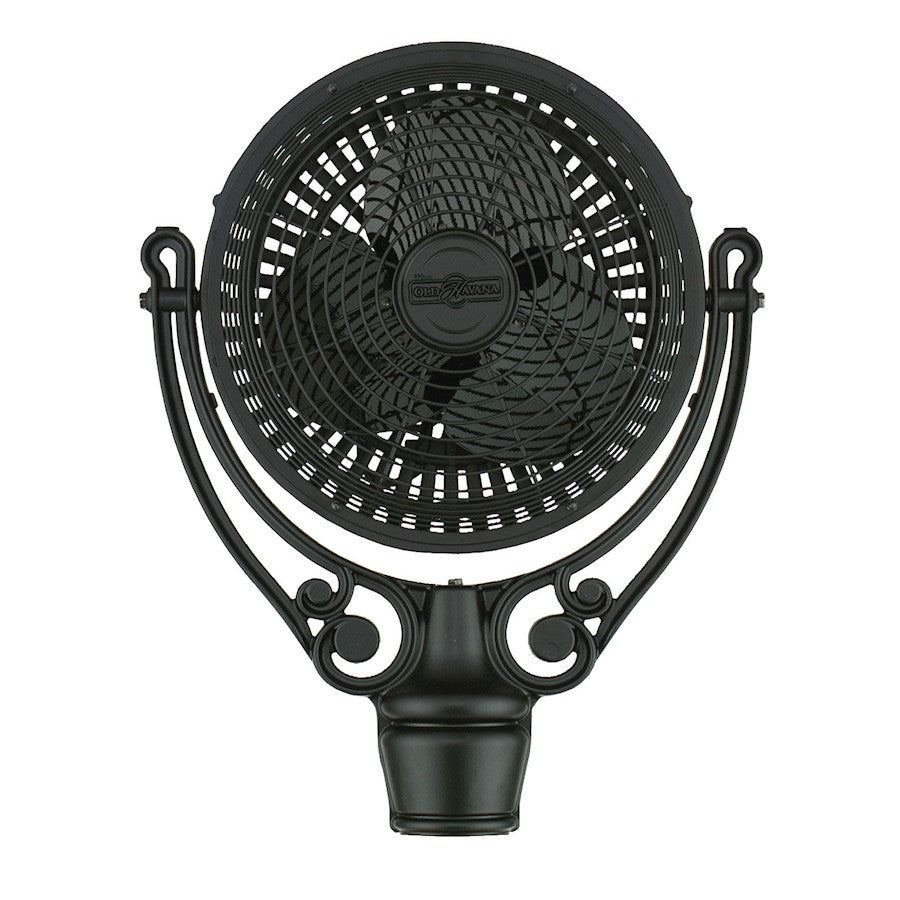

A 24-inch ceiling fan motor assembly with three metal blades, finished in antique black, for damp locations like covered patios and large rooms.
The Old Havana motor assembly captures Old World sophistication with its strong silhouette and intricate details. Its antique style recalls a time when fans were essential for comfort, but modern engineering delivers three-speed operation in both dry and damp locations. The die-cast construction and painted black finish give it a durable, classic look that suits traditional and transitional interiors.
Best for
- Covered patios and porches where damp-rated fans are required
- Living rooms and great rooms with 8-foot or higher ceilings, mounted flush or with a downrod
- Bedrooms and studies needing quiet, energy-efficient air movement
- Spaces where a vintage, Old World aesthetic is desired
Not ideal for
- Wet locations exposed directly to rain - this fan is rated for damp locations only
- Small rooms under 8x8 feet where a 24-inch sweep may be too large
- Users seeking a light kit - this motor assembly does not include one
How bright is it?
This is a ceiling fan without a light kit, so brightness is not applicable. It provides airflow, not illumination.
Light color and feel
No light source is included, so color temperature and dimming do not apply. Focus on the fan's airflow and finish.
Sizing and fit
Overall dimensions are 24 inches long, 19 inches wide, and 24 inches high. The ceiling-to-blade-edge distance is 22.5 inches, and the lead wire is 96 inches. This fan suits rooms with at least 8-foot ceilings and a clear area of at least 24 inches in diameter.
Specifications
- Finish: Black
- Blade Finish: Black
- Blades Made of Metal
- Blade Finish Method Type: Painted
- Voltage: 120V
- Voltage Cycles: 60HZ
- Number of Blades: 3
- Blade Pitch (Degrees): 20
- Light Kit Included: No
- Motor Type: AC
- Motor Size: 90 x 20
- Motor Reversible: No
- Die-cast construction
- CFM High: 923
- CFM Medium: 525
- CFM Low: 342
- Watts High: 52
- Watts Medium: 35
- Watts Low: 3
- Airflow Efficiency High: 18
- Airflow Efficiency Medium: 15
- Airflow Efficiency Low: 127
- RPM High: 1360
- RPM Medium: 790
- RPM Low: 520
- Current Draw High: 0.45
- Current Draw Medium: 0.3
- Current Draw Low: 0.23
- Safety Rating: UL/cUL
- Warranty: Limited Lifetime Warranty
- For Use in Damp Locations
- Overall Dimensions: 24"(L) x 19"(W) x 24"(H)
- Ceiling to Blade Edge: 22.5"
- Leadwire: 96"
- Item Weight: 17 lbs.
Frequently asked
Is a light kit included? No, this motor assembly does not include a light kit.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in covered outdoor areas and bathrooms with adequate ventilation, but not in wet locations exposed to direct rain.
What is the warranty? The fan comes with a limited lifetime warranty.
Is the motor reversible? No, the motor is not reversible.
What is the airflow efficiency? Airflow efficiency ranges from 15 to 127 CFM per watt depending on speed, with high speed delivering 923 CFM at 52 watts.
