A 64-inch smart ceiling fan with an integrated dimmable LED light kit, designed for both indoor living rooms and covered outdoor spaces like patios and pergolas.

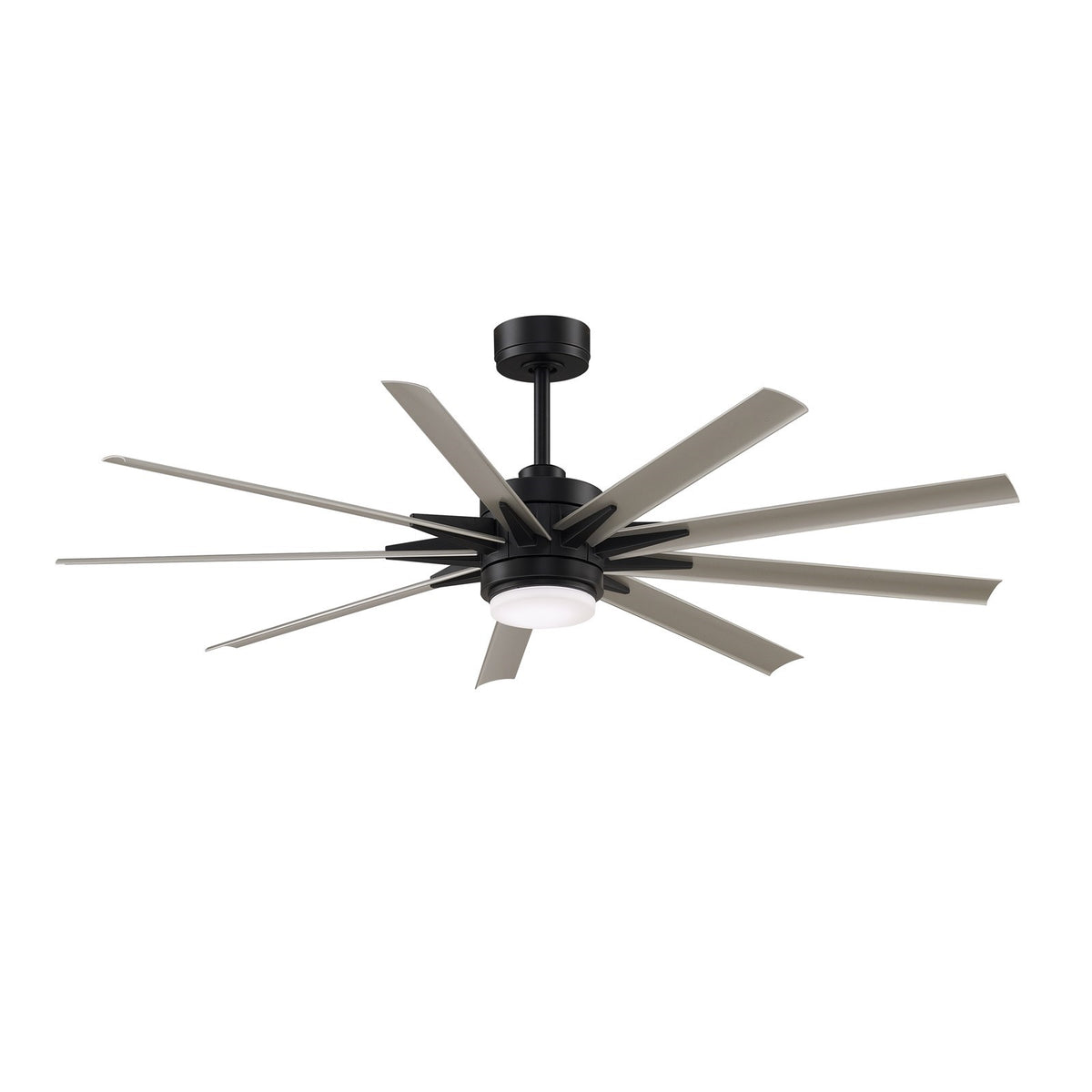

The Odyn Custom from Fanimation makes a bold statement with its commanding presence and nine composite blades. The black motor housing pairs with brushed nickel blades for a modern, industrial look. Its DC motor is remarkably quiet and energy-efficient, using up to 70% less energy than traditional fans. The integrated LED light kit offers CCT Select technology, letting you choose from warm white, bright light, or daylight to suit your mood.
Best for
- Covered patios, gazebos, pergolas, and porches where wet-rated durability is essential
- Large living rooms and great rooms needing powerful air circulation up to 8,415 CFM
- Bedrooms and home offices where quiet operation and adjustable light color enhance comfort
- Smart home setups, controllable via the fanSync app or voice assistants
- Spaces with ceilings up to 27° slope, using the included 12-inch downrod
Not ideal for
- Small rooms under 10x10 ft, where the 64-inch sweep may be overpowering
- Low ceilings under 8 ft without an optional shorter downrod, as the fan hangs 22.63 inches from the ceiling
- Those preferring a traditional pull-chain control, as this fan uses a handheld remote and smart app
How bright is it?
The integrated 18-watt LED module produces 1600 lumens - comparable to a 100-watt incandescent bulb, providing ample ambient light for most rooms. It's dimmable, so you can lower the light level for a cozy evening atmosphere.
Light color and feel
With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The warm setting flatters skin tones and wood finishes, while daylight is ideal for tasks. A high CRI of 90 ensures colors appear vibrant and accurate.
Sizing and fit
This fan measures 64 inches wide by 22.63 inches high from the ceiling. It's designed for flat or slightly sloped ceilings (up to 27°) and comes with a 12-inch downrod. Optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height for maximum airflow.
Specifications
- Primary Finish: Black
- Blade Material: Composite
- Blade Finish: Brushed Nickel
- Shade Finish: Opal Frosted
- Collection: Odyn Custom
- Blade Sweep: 64"
- Number of Blades: 9
- Blade Pitch: 12°
- Motor Type: DC
- Motor Size: 135
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4934
- CFM High: 8415
- Avg Energy Use: 22W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 22.63"(H)
- Housing Diameter: 8.27"
- Canopy Dimensions: 6.46"(Dia) x 2.58"(H)
- Downrod Length: 12"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 22.32"
- Ceiling to Bottom (With Light Kit): 22.63"
- Item Weight: 31.31 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced separately.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, making it suitable for covered outdoor areas and bathrooms with shower exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor.
How does the brushed nickel finish compare to other options? Brushed nickel has a satin, slightly textured look that resists fingerprints and complements stainless steel appliances.
