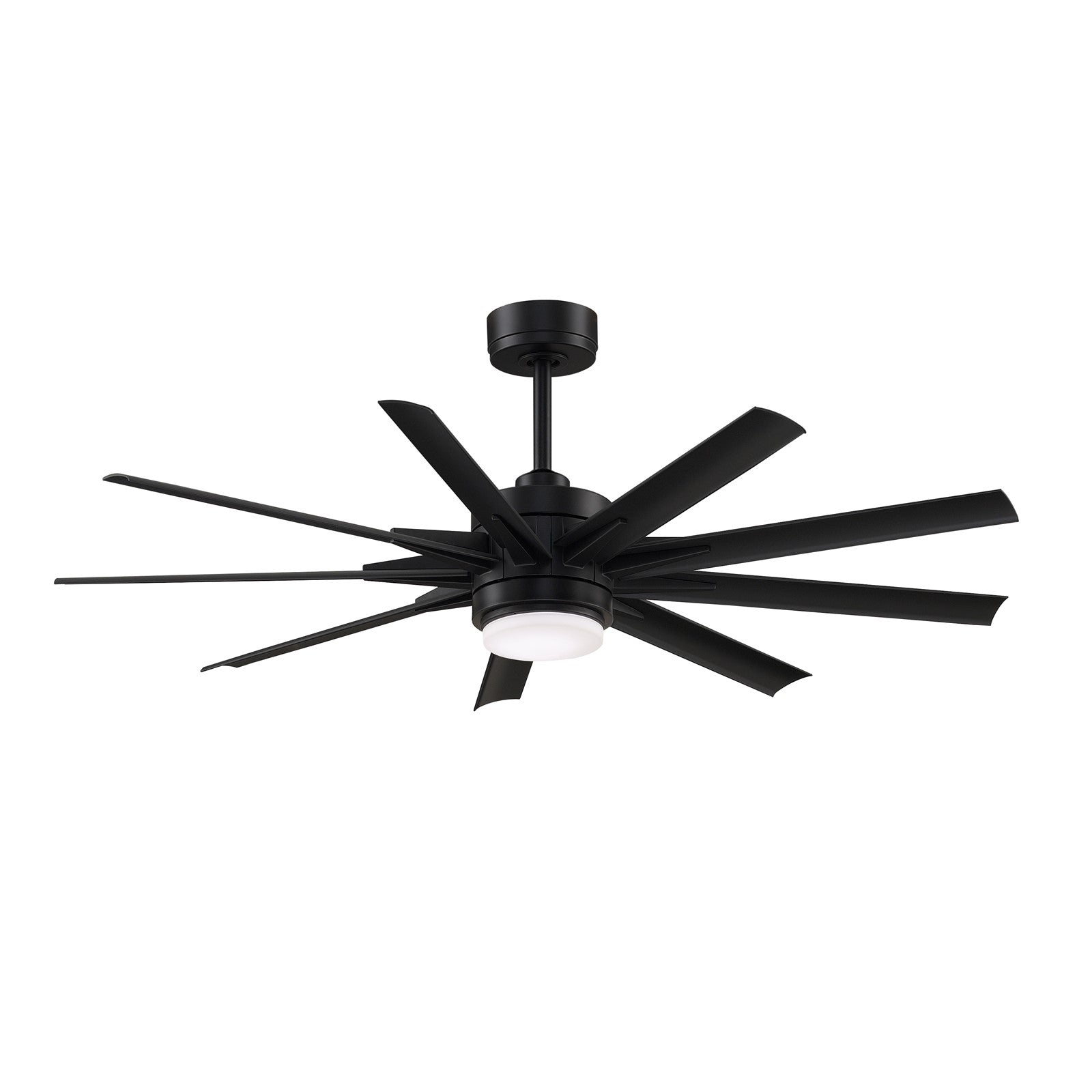

A 56-inch smart ceiling fan with an integrated LED light kit, designed for both indoor and outdoor wet-rated spaces like patios and pergolas.
The Odyn Custom by Fanimation commands attention with its bold, modern design. Its DC motor is up to 70% more energy-efficient than standard motors, and the included LED light kit offers selectable color temperatures. This fan is built for versatility, with a wet rating that suits covered outdoor areas as well as large indoor rooms.
Best for
- Covered patios, pergolas, and porches where a wet-rated fan is required
- Great rooms and open-plan living areas up to 400 sq ft
- Bedrooms and home offices needing quiet, energy-efficient airflow
- Indoor spaces with 8-9 ft ceilings when using the included 12-inch downrod
Not ideal for
- Rooms with ceilings under 8 ft unless using a flush mount (not included)
- Spaces where you prefer a fan without a light kit
- Installations on ceilings with a slope greater than 27 degrees
How bright is it?
The integrated 18-watt LED module produces 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms. It is dimmable for adjustable brightness.
Light color and feel
With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The 90 CRI ensures colors appear vivid and accurate. The opal frosted shade diffuses light softly, reducing glare.
Sizing and fit

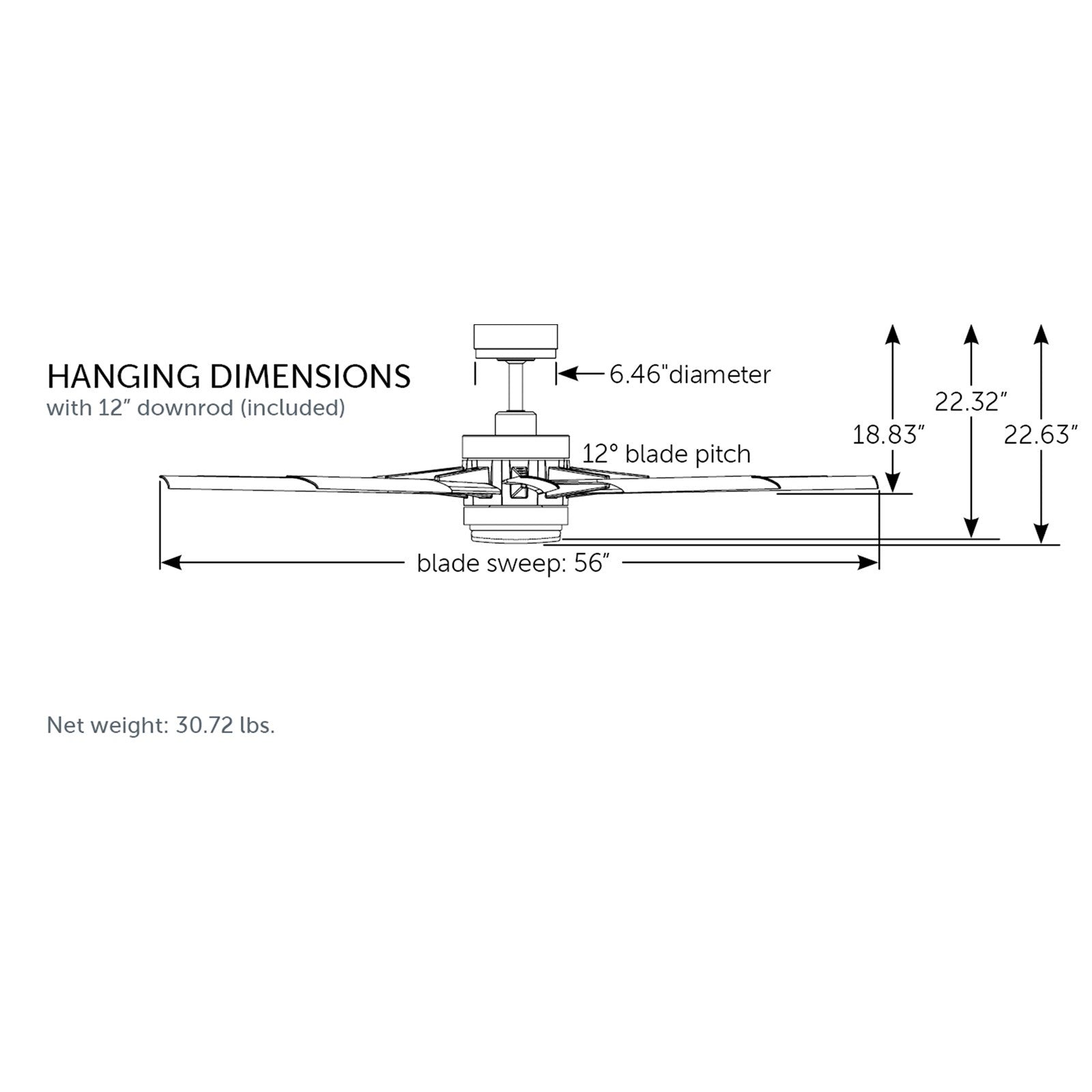

This fan measures 56 inches in diameter and hangs 22.63 inches from the ceiling with the included 12-inch downrod. It fits rooms of 12x12 ft or larger. For higher ceilings, optional downrods up to 72 inches are available.
Specifications
- Primary Finish: Black
- Blade Material: Composite
- Blade Finish: Black
- Shade Finish: Opal Frosted
- Collection: Odyn Custom
- Blade Sweep: 56"
- Number of Blades: 9
- Blade Pitch: 12°
- Motor Type: DC
- Motor Size: 135
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5627
- CFM High: 7587
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app.
Can I install this in a bathroom or outdoors? Yes, it is wet-rated for indoor and outdoor use, including covered patios and porches.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How do I control the fan and light? Use the included TR305 handheld remote or the fanSync app with your smart device or voice assistant.
